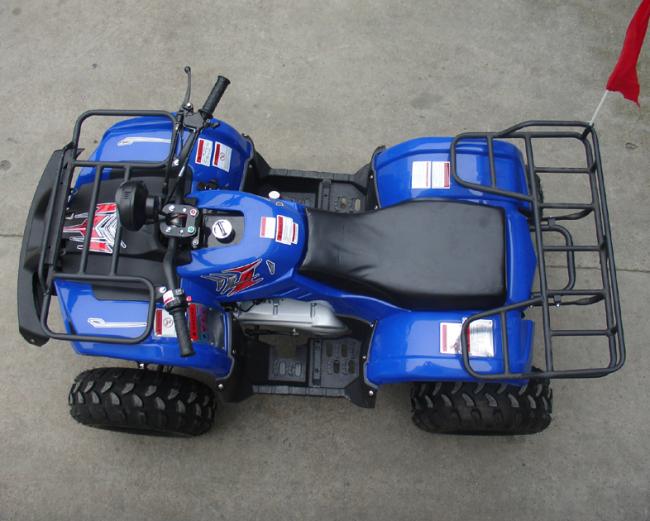

8" Tire 150cc Youth Atv W / Foot Start , Single Cylinder All Terrain Utility Vehicle
4 stroke GY6 125CC 150CC AIR-COOLED 150cc cdi Drum/disc of utility vehicle atv
Model:
youth racing atv150-1
Product Description:
| Engine type | GV6, four-stroke, single cylinder,CVT, |
| Engine brand | WANGYE |
| Displacement | 149.6cc |
| Cooling | Air cooled |
| Max horsepower | 7.48 HP, 5.5KW/7500r/min |
| Max torque | 8.3/6000N·m/(r/min) |
| Bore*stroke | 57.4 MMX57.8MM; 2.26”X2.28” |
| Max speed | 32.9mile/h; 53km/h |
| Climbing ability | 15 |
| Ignition | CDI |
| Starting system | Electric starter |
| Battery | 12V/ 7 AH |
| Carburetor brand | Sanguo/PD24J |
| Engine oil | 15W/40GB1121-1995 |
| Gear oil | 85W-90.G1-4 |
| CHASSIS ETC. | |
| Clutch | N, CVT |
| Transmission | F+N+R |
| Driveline | chain |
| Driving wheel | Rear 2 drive |
| Suspension,front/rear | Double a-arm/ single suspension |
| Brakes,front/rear | Disc/disc |
| Brake operation | Front right hand, rear right foot |
| Tires,front/rear | 21*7-8 / 20*9.5-8 |
| Fuel capacity/type | 4.2L |
| Weight,G.W./N.W. | 172/146KGS |
| Max load | 100KGS |
| DIMENSIONS | |
| Wheelbase | 1140MM |
| OA L*W*H | 1800*1060*1070MM |
| Height to seat | 780MM |
| Min ground clearance | 110MM |
| Carton size | 1500*820*850MM |
| Shipping info | 63PCS/HQ; 42PCS/40’; 20PCS/20FCL |
Applications:
adult /Forest road / Riverbed /Stream / Mountain Road / Beach / Farm / Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or . The delivery time is about 20 days.
Our Service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
