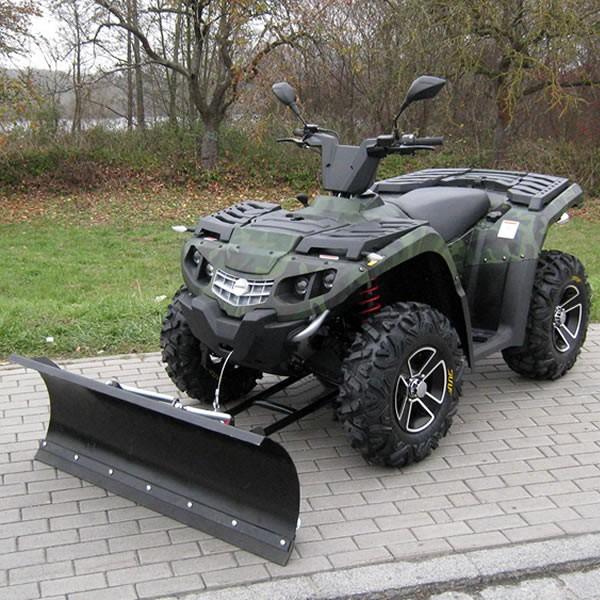

Oil Cooled 400cc Four Wheel Atv Double / Single A - Arm With Aluminum Rim Electric Shift
400cc 4*4 F/R independent suspension Iron/Aluminum rimelectric shift of four wheel atv
Model:
four wheel atv400-4
Product Description:
| Engine type : | 4-Stroke,single cylinder |
| Engine brand : | * |
| Displacement : | 400cc |
| Cooling : | Oil cooled |
| Max horsepowe : | 16.1hp/5200rpm |
| Max torque : | 23n.m/4000rpm |
| Bore*stroke : | 3.09*2.92inches |
| Max speed : | 49.7mile/h |
| Climbing ability : | 40degree |
| Ignition : | C.D.I |
| Starting system : | Electric/hand-pull |
| Battery : | 12V/14Ah |
| Carburetor brand : | * |
| Engine oil : | SAE15W/40SF |
| Gear oil : | * |
| CHASSIS ETC : | |
| Clutch : | Automatic |
| Transmission : | 5-speed+reverse |
| Driveline : | Shaft-drive |
| Driving wheel : | 4 wheel drive |
| Suspension,front/rear : | Double a-arm/single a-arm |
| Brakes,front/rear : | Disc/disc |
| Brake operation : | Hand+foot |
| Tires,front/rear : | 25*8-12/25*10-12 |
| Fuel capacity/type : | 3.43gal |
| Weight,G.W./N.W : | 674.6/573.2lbs |
| Max load : | 661.4lbs |
| DIMENSIONS : | |
| Wheelbase : | 49.2inches |
| OA L*W*H : | 78.7*45.3*54.3inches |
| Height to seat : | 32.7inches |
| Min ground clearance : | 7.9inches |
| Carton size : | 78*45.7*33.5inches |
| Shipping info : | 34PCS/40HQ |
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or . The delivery time is about 20 days.
Why US
We also can supply electric scooter, go kart, trike, bicycle, trampoline and other sporting produciton, any requirements, contact me freely
- 10 years experience in vehicle field since 2006
-
Detailed warranty terms:
Electric motor:1 year
Charger and controller:1 year
Lifepo4 battery:2 years
Lead-acid battery:8 months
Vehicle frame or body:2 years
-
excellent service,We will provide timely reply for each email,our staff with good training for the
-
vehicle,we can provide almost spare parts of the vehicle which we sold,we know after-service is how important for our dealers.
