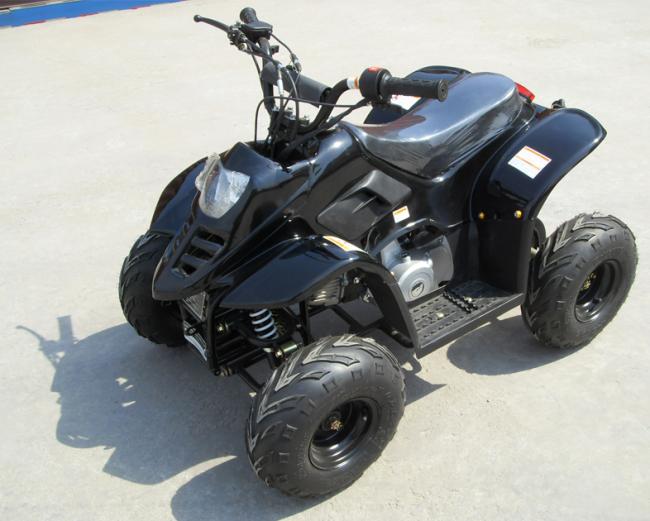

Air Cooled 4 Stroke 110cc Four Wheeler , Chain Drive Youth ATV Racing
110cc,Air cooled, 4-stroke, single cylinder, chain drive,Two wheel drive
Model:
youth racing atv110-15
Product Description:
| Engine type : | Air cooled, 4-stroke, single cylinder, chain drive |
| Engine brand : | TIANZHONG |
| Displacement : | 107cc |
| Cooling : | Air cooled |
| Max horsepowe : | 6.7hp/8000rpm |
| Max torque : | 6.9 N.m /6500 rpm |
| Bore*stroke : | 2.06*1.95inches |
| Max speed : | 28.0mile/h |
| Climbing ability : | 17degree |
| Ignition : | C.D.I |
| Starting system : | Electric |
| Battery : | 12V/4Ah |
| Carburetor brand : | PZ19 |
| Engine oil : | 15W/40-SE |
| Gear oil : | * |
| CHASSIS ETC : | |
| Clutch : | Automatic |
| Transmission : | Automatic |
| Driveline : | Chain-drive |
| Driving wheel : | Two wheel drive |
| Suspension,front/rear : | Double a-arm/single a-arm |
| Brakes,front/rear : | Drum/Disk |
| Brake operation : | Foot |
| Tires,front/rear : | 145*70-6/ 145*70-6 |
| Fuel capacity/type : | 0.74gal |
| Weight,G.W./N.W : | 176.21/158.59lbs |
| Max load : | 88lbs |
| DIMENSIONS : | |
| Wheelbase : | 31.50inches |
| OA L*W*H : | 53.1 *29.9*34.3inches |
| Height to seat : | 22.0inches |
| Min ground clearance : | 3.34inches |
| Carton size : | 44.5*27.2*24.8inches |
| Shipping info : | 136pcs/40HQ |
Applications:
1. adult use only
2. Forest road
3. Riverbed, Stream,
4 Mountain Road / Beach
5. Farm / Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or . The delivery time is about 20 days.
Our Service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
