2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
Goodyear Air Spring 2B9-200 Firestone W01-358-6910 Spring Convoluted Rubber Bellows
Product Description
|
Item Name |
Industrial Air Spring |
Model Number |
2B9-200 |
|
Material |
Natural Rubber+Steel |
Warranty |
12 Months |
|
Color |
Black |
Number of Convolution |
2 |
|
Package |
Strong Carton |
Delivery Time |
2-8 working days |
Product Category: Industrial Equipment Shock Absorption
Scope of application: airbags for papermaking equipment, pneumatic tires for correctors, pneumatic tires for paper machine cloth correctors, airbags for calenders, airbags for presses, pneumatic tires for scraper wire, pneumatic tires for dehydrators, airbags for press rolls, air-drying tank airbags, paper Sizing press airbag, glue machine airbag
Natural outer diameter: 230MM
Bearing range: 50-2500KG
GUOMAT NO.: 2B6910
OEM Number of 2B9-200
FIRESTONE W01-358-6910
FIRESTONE W013586910
FIRESTONE W01/358/6910
FIRESTONE w01-358-6910
FIRESTONE w013586910
FIRESTONE w01/358/6910
CONTITECH FD 200-19 320
CONTITECH FD200-19 320
CONTITECH FD 200-19 /320
CONTITECH fd 200-19 320
CONTITECH fd200-19 320
CONTITECH fd 200-19/320
GOODYEAR 2B9-200
GOODYEAR 2b9-200
GOODYEAR 2B9-202
GOODYEAR 2b9-202
GOODYEAR 2B9-216
GOODYEAR 2b9-216
GOODYEAR 578423202
GOODYEAR 578 423 202
TRIANGLE 6325
TRIANGLE 4320
TAURUS KF218-6910
TAURUS KF 218-6910
Brake&Wheel M3501
Dina A812719
Dina AZ812719
Dayton 3546910
Leland Sc2011
Navistar 554783C1
Hendrickson S8768
Hendrickson 458433
Ridewell 1003586910C
SAF Holland 57006910
Trailers De 133128
Tuthill 1371
Watson&Chalin AS-0001
Watson&Chalin AS-0156G
Technical Parameter
|
Cover Plate |
Top Cover Plate Diameter:160mm |
|
Bottom Cover Plate Diameter:160mm |
|
|
Air Inlet |
1/4 NPTF |
|
Blind Nut |
Screw Center Distance Of Top Cover Plate:89mm |
|
Screw Center Distance Of Bottom Cover Plate:89mm |
|
|
Screw And Gas Hole Distance Of Top Cover Plate:44.5mm |
|
|
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
|
|
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
|
|
Rubber Bellow |
Rubber Bellow MAX Diameter:251mm |
|
The Working Stroke:MAX 260mm to MIN 75mm |
|
|
Maximum Height:260mm |
|
|
Minimum Height:75mm |
|
|
Compression Height:185mm |
What is the purpose of an air spring?
An air spring is basically a column of air confined within a rubber-and-fabric container shaped like a bellows. The spring action results from the compression and expansion of the air. When used on road vehicles, air springs can keep the vehicle at a constant standing height regardless of load.

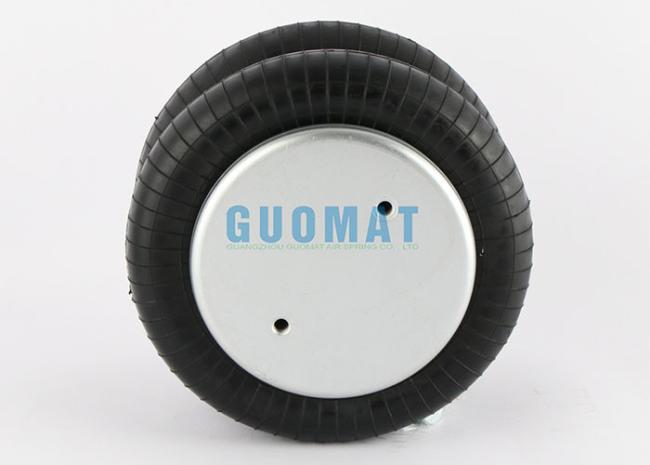

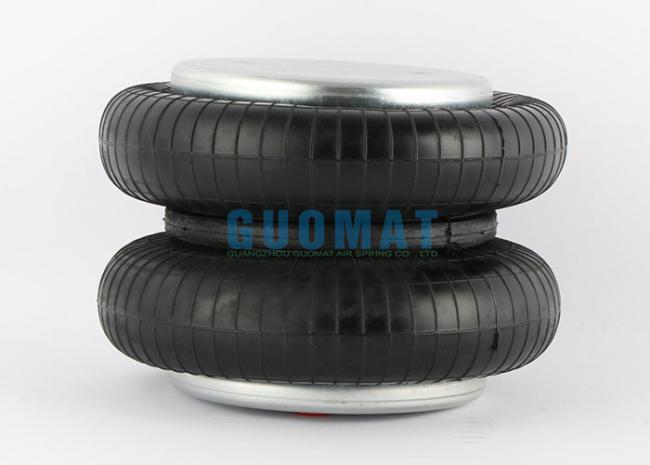

Product Picture
