Product Description
Item : Industrial Air Spring with Flange Ring
Position : Industrial Machine
Warranty : One Year
Material : Rubber Bellow, Aluminum Cover
Color : Black
Packing : Carton/Cartons
Packing Size : 24*24*24(cm)
Number of Bellow : 2-Layers
Delivery Time : 2-8 working days
Payment : L/C,T/T,Western Union,PayPal
Express shipping : DHL,FedEx,UPS,EMS......
Guomat 12‘’x2 Detailed Parameter Data
|
Top Bead Plate |
|
Top Cover Plate Diameter : 260mm |
|
Top Cover Screw Center Distance : 232mm |
|
Top Cover Plate Screw (Nut) Tooth:4xM10x1.5 |
|
Gas Hole : G1/2 |
|
|
|
Bottom Bead Plate |
|
Bottom Cover plate Diameter : 260mm |
|
Bottom Cover Screw Center Distance : 232mm |
|
Bottom Cover Plate Screw (Nut) Tooth : 4xM10x1.5 |
|
|
|
Rubber Bellow |
|
Rubber Bellow Max Diameter : 320mm |
|
|
|
Minimum Height : 74mm |
The Following Air Springs Can be Replaced
Firestone Part No. : W01-R58-4061
Firestone Part No. : W01 R58 4061
Firestone Part No. : W01R584061
Firestone Style : 12''x2 NB
Firestone Style : 12''X2 NB
Firestone Style : 12X2NB
Contitech Part No. : FD 412-18 1/2 M10
Contitech Part No. : FD 412-18 DS G1/2 M10
Contitech Part No. : FD 412-18 G1/2 M10
Contitech Part No. : FD 412-18 DS G1/2
Contitech Part No. : FD 412-18 DS 66334
Contitech Part No. : FD 412-18 DS
Contitech Part No. : FD412-18DS
Contitech Part No. : FD41218DS
Contitech Bellow No. : FD 412-18
Contitech Bellow No. : FD412-18
Contitech Bellow No. : FD41218
Goodyear : 2B12-2452
Goodyear : 2B12 2452
Goodyear : 2B122452
Goodyear Flex No. : 578-92-3-2452
Goodyear Flex No. : 578 92 3 2452
Goodyear Flex No. : 5789232452
SpringRide : 2B12-2452
SpringRide : 2B12 2452
SpringRide : 2B122452
SpringRide Flex No. : 578-92-3-2452
SpringRide Flex No. : 578 92 3 2452
SpringRide Flex No. : 5789232452
Dunlop FR : 12''x2
Dunlop FR : SP1541NB
Dunlop UK(Pneuride) : PNP 30552 01 18
Dunlop UK(Pneuride) : PNP305520118
Norgren No. : M/31122
Norgren No. : M 31122
Norgren No. : M31122
WEFORMA : WBZ-G 550
WEFORMA : WBZ-G550
WEFORMA : WBZG550
Airtech : 140596
Airtech Reference No. : A 2300/K01
Airtech Reference No. : A2300K01
Airtech Reference No. : A2300/K01
Original Part Number
Granning : 15813
Gigant : 881202
Weweler : USN 510011KD
Weweler : USN510011KD
Gigant : 700881202
|
Double Convoluted |
||||||
|
Style NO. |
Max.Dia At 7 BAR (mm) |
Min. Height (mm) |
Max. Stroke (mm) |
5 BAR Force at Stroke of |
||
|
25mm (kN) |
50% of Max. Stroke |
Maximum Stroke(kN) |
||||
|
4-1/2x2 |
120 |
70 |
75 |
3.9 |
3.2 |
1.5 |
|
6x2 |
162 |
75 |
115 |
8.3 |
6.4 |
1.5 |
|
8x2 |
215 |
75 |
150 |
12.3 |
10.3 |
3.9 |
|
10x2 |
265 |
75 |
200 |
19.8 |
13.7 |
5.9 |
|
12x2 |
312 |
75 |
225 |
29.4 |
22.8 |
4.4 |
|
14-1/2x2 |
378 |
75 |
260 |
45.1 |
36.3 |
17.7 |
|
16x2 |
406 |
75 |
265 |
63.0 |
43.1 |
9.8 |

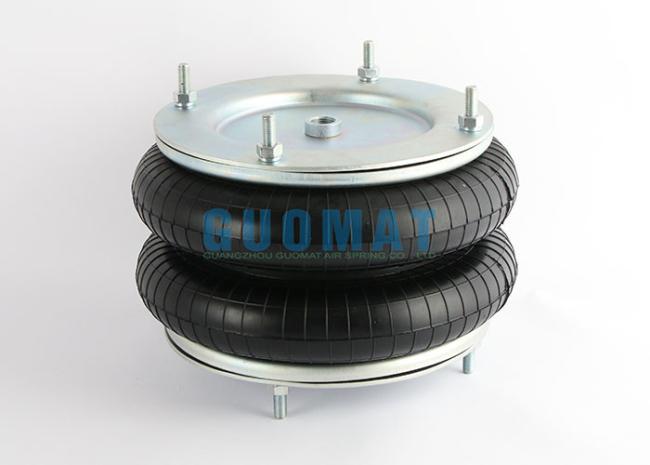

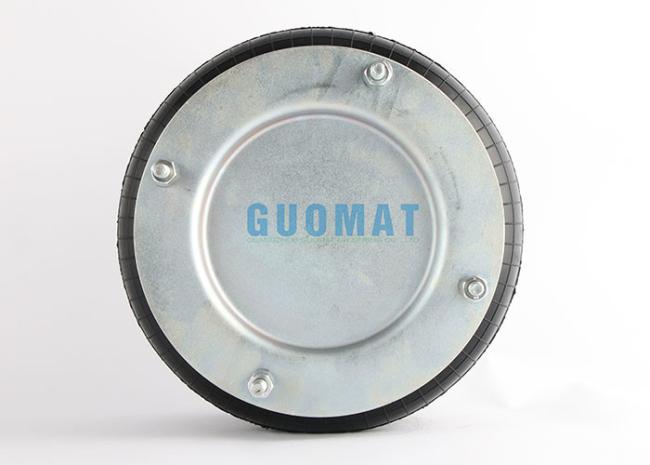

Prduct Pictures
