Double Convoluted Rubber Industrial Air Spring S-240-2 Punch Paper Machine Equipment Actuators
S-240-2 Double Convoluted Rubber Air Spring Punch Paper Machine Equipment Actuators
Product Description
|
Model Number |
F-240-2 |
Material |
Natural Rubber |
|
Warranty |
12 Months |
Number of Convolution |
3-Layers of Rubber |
|
Color |
Black |
Reference Number |
S-240-2R |
Original Part Number
YOKOHAMA
S-240-2R
YOKOHAMA
S 240 2R
YOKOHAMA
S-240-2
YOKOHAMA
S 240 2
F-240-2 Air Spring Bags Technical Data
|
GUOMAT NO. |
Reference NO. |
Height H(mm) |
Common Maximum Travel (mm) |
Compression Max Outside Diameter (mm) |
Effective Area(cm2) |
Volume(L) |
||
|
Design Height (mm) |
Max Height (mm) |
Min Height(mm) |
||||||
|
F-240-4 |
S-240-4 |
206 |
316 |
111 |
±80 |
300 |
450 |
10.1 |
|
F-240-3 |
S-240-3 |
152 |
232 |
82 |
±60 |
300 |
450 |
7.3 |
|
F-240-2 |
S-240-2 |
148 |
98 |
148 |
±53 |
300 |
450 |
4.4 |
|
F-240-1 |
S-240-1 |
110 |
72 |
110 |
±30 |
340 |
450 |
3.5 |
|
GUOMAT NO. |
Reference NO. |
Load (KN) |
Dynamic Spring Constant (n/mm) |
Natural Vibration Frequency (Hz) |
Maximum Internal Pressure (MPa) |
Internal Pressure Failure(MPa) |
|
F-240-4 |
S-240-4 |
22.2 |
235 |
1.6 |
0.88 |
2.9-3.9 |
|
F-240-3 |
S-240-3 |
22.2 |
324 |
1.9 |
0.88 |
2.9-3.9 |
|
F-240-2 |
S-240-2 |
22.2 |
520 |
2.4 |
0.88 |
2.9-3.9 |
|
F-240-1 |
S-240-1 |
22.2 |
765 |
2.9 |
0.69 |
2.9-3.9 |
Industrial Application
We apply air spring technology to the shock absorption of papermaking machinery, vibrating screen, mining equipment, pipeline equipment, precision equipment and other industrial equipment, which effectively improves the working efficiency of the equipment and the safe service life of the equipment. Air springs do not have internal levers, pistons or sliding seals like ordinary cylinder devices, thus greatly reducing the cost of using pneumatic or hydraulic cylinders and winning more economic benefits.
Features
1. Low cost and wide range of specifications
2. Long service life, no maintenance and lubrication, no need for internal levers or pistons
3. No friction effect, soft medium
4. Bending capacity, side load capacity, compact original height

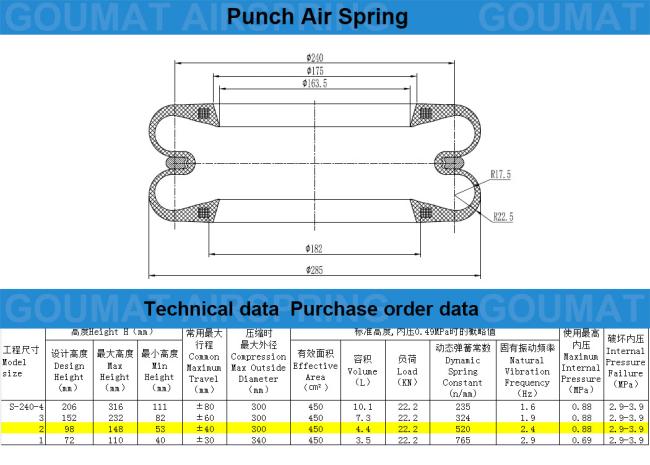

The Drawing Picture of F-240-2

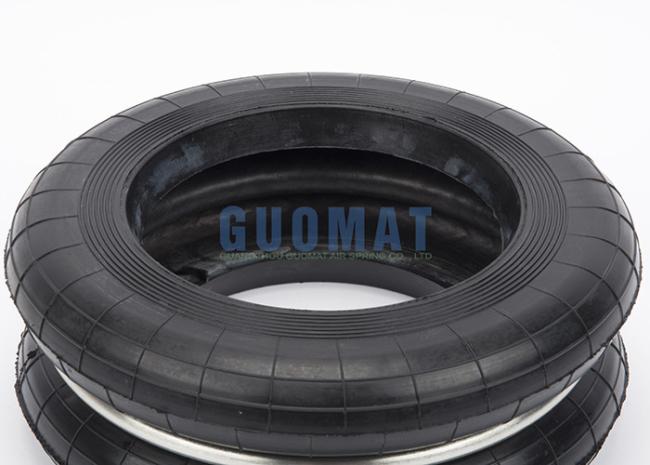

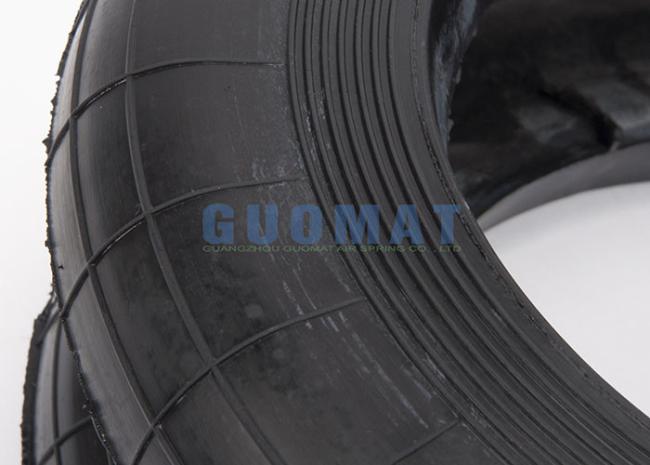

Product Detail Pictures
