S-160-2 Presses Convoluted Air Spring With Cover Plate Industrial Rubber Bellows
S-160-2 Presses Convoluted Air Spring With Cover Plate Industrial Rubber Bellows
Product Description
|
Item |
Value |
|
OEM Number |
YOKOHAMA Shock Absorber S-240-3 |
|
Spring Material |
Rubber |
|
Spring Type |
Air Spring |
|
Warranty |
12 Months |
|
Place of Origin |
GuangDong China |
|
Model |
Barious Equipments |
|
Yokohama Shock Absorbers S-240-3 |
Yokohama air spring |
|
For Yokohama from Japan |
Yokohama air suspension |
Application
This item can fits for many kinds of machines
1. Actuator for concrete block machinery
2. Mineral equipment air spring,
3. Reversing actuators in roller conveyor systems
4. Actuator for lifting of casting shakeout box
5. MTB
6. Actuators on bottle and carton filling machines
7. Bin-tilting actuator (for ease of use)
8. Paper machine equipment air spring air spring,
9. Actuators on the transfer table
10. Clamping device for the upper cover of the vibrating screen
11. Actuators in blasting booths
12. Actuator for glass grinding chamber
13. Industrial Laundry Equipment Actuators
14. Crawling assembly line machine
Application of air spring in punching equipment
With the continuous development of industrial modernization, many industries use punching equipment. However, when the punching equipment is working, the vibration of the machine will cause wear and noise. The solution to this problem is to install an air spring. The function of the air spring is shock absorption and buffering. The air spring uses air as the medium and has a long service life, which can effectively maintain the punch.
Technical Data of S-160-2
|
GUOMAT NO. |
Reference NO. |
Height H(mm) |
Common Maximum Travel (mm) |
Compression Max Outside Diameter (mm) |
Effective Area(cm2) |
Volume(L) |
||
|
Design Height (mm) |
Max Height (mm) |
Min Height(mm) |
||||||
|
F-160-4 |
S-160-4 |
206 |
306 |
111 |
±70 |
220 |
200 |
4.7 |
|
F-160-3 |
S-160-3 |
152 |
227 |
82 |
±53 |
220 |
200 |
3.4 |
|
F-160-2 |
S-160-2 |
98 |
148 |
53 |
±35 |
220 |
200 |
2.1 |
|
GUOMAT NO. |
Reference NO. |
Load (KN) |
Dynamic Spring Constant (n/mm) |
Natural Vibration Frequency (Hz) |
Maximum Internal Pressure (MPa) |
Internal Pressure Failure(MPa) |
|
F-160-4 |
S-160-4 |
9.8 |
118 |
1.7 |
0.88 |
2.9-3.9 |
|
F-160-3 |
S-160-3 |
9.8 |
157 |
2.0 |
0.88 |
2.9-3.9 |
|
F-160-2 |
S-160-2 |
9.8 |
255 |
2.5 |
0.88 |
2.9-3.9 |

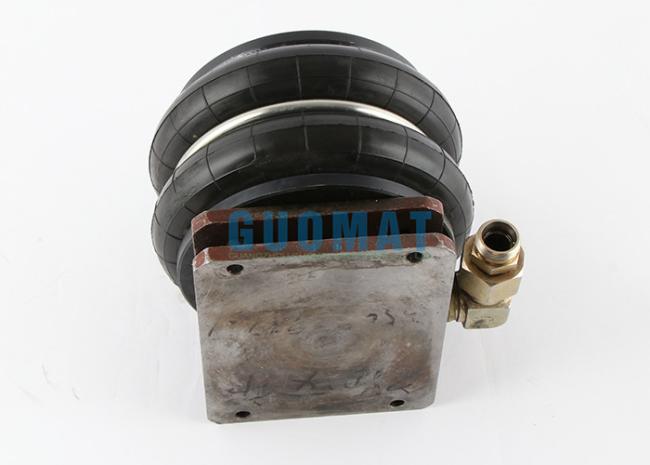

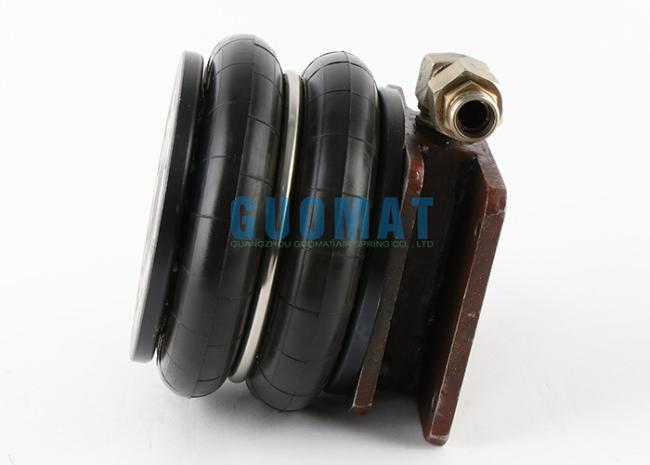

Product Picture
