Single Convoluted Industrial Air Bags W01-358-7564 Firestone Air Spring FS120-10

Durable Single Convoluted Industrial Air Bags W01-358-7564 Firestone Air Spring FS120-10


Product Description

OEM Number

The Technical Data of Goodyear 1B8-550

Bellows Type : Single Convoluted

Spring Net Weight : 2.018kg

Spring Gross Weight : 2.1kg

Min Temperature : -40°C
Max Temperature : +70°C

Air Inlet : 1/4NPTF
Series : C

Compressed Height : 90mm
Max Diameter : 230mm
Max Inflation Pressure : 120psi
Max Stroke : 140mm

Cover Plate Diameter : 135mm

Screw Center Distance : 70mm

Screw (Nut) Tooth : 3/8-16UNC

Also Known As: 75229, FS120-10CI1/4NPTCA

Application of air spring in shock absorption equipment
The advantages of high frequency vibration isolation, sound insulation and low natural vibration frequency of the rubber air spring can better realize vibration isolation and ensure the safety and stability of the base of the vibration equipment and the control system. Therefore, rubber air springs are widely used in equipment such as vibration isolation of vibrating screens and vibration reduction of luxury vehicle seats. Air springs can reduce noise and prolong the service life of machinery and equipment.

About Us
GUOMAT has always focused on the development of auto parts and industrial shock absorbers, providing you with high-quality products and competitive prices.


If you are interested in our products, please contact us and tell us your needs, we are happy to offer you our best offer. Our products are all with a one-year warranty and accept sample orders. We can also make air springs according to the drawings you provide.
We look forward to building business with you.

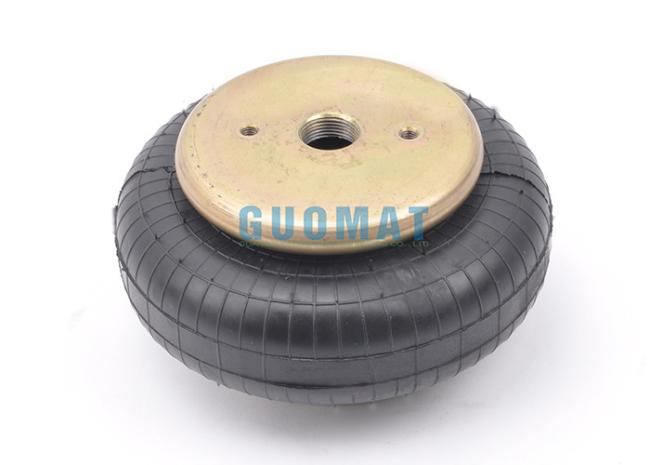

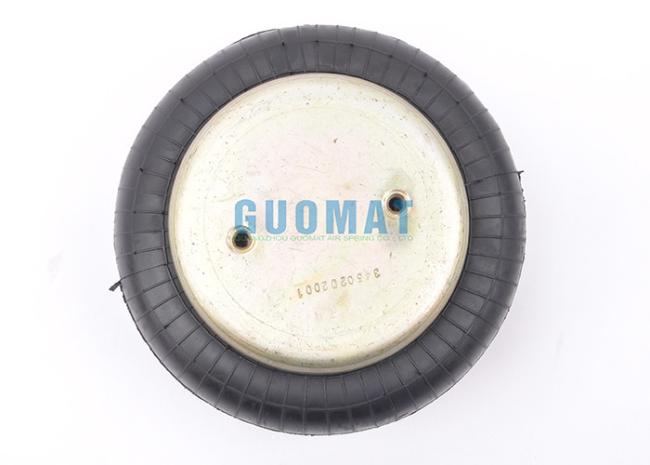

Firestone W01-358-7564 Air Springs Real Pictures
