OEM GART ARI.275 Single Convoluted Air Spring 1B5081 Industrial Lifting Air bags
OEM GART ARI.275 Single Convoluted Air Spring 1B5081 Industrial Lifting Air bags
Product Description
| Item | Single Convoluted Air Spring | GUOMAT NO. | 1B5081 |
| Material | Rubber | Warranty | 1 Year |
| MOQ | 10 Pieces | Package | Carton/Cartons |
Product Specifications and Technical Data
Top Cover Plate Diameter:136.5mm
Bottom Cover Plate Diameter:136.5mm
Spring Natural Height:128mm
Top Cover Plate Screw (Nut) Tooth :1pcXM12X1
The Working Stroke : MAX 209 mm to MIN 80 mm
Gas Hole / Air inlet : G1/4
Packaging Details
|
Model |
Gross Weight |
Packaging Length |
Packaging Width |
Packing Height |
|
1B5081 |
4kg |
24(cm) |
24(cm) |
24(cm) |
(1) Neutral packaging
(2) Customized packaging
(3)Brand authorized packaging
Remark:Due to the international transportation, we need time to pack it strictly according to the requirements, so as to avoid being impacted during transportation, which will cause damage to the package.
Application
- Scissor lift
- Hopper vibration and damping
- Hopper vibration and damping
- Quick lock device
- Reel tensioning
- Machine isolation
- Direct force
- Impact absorbtion
- Roller tensioning
- Platform lift
- Short stroke mechanical linkage
- Hot foil stamping press
1B Style Industrial Air Bellow
|
Model NO. |
OEM Number |
|
1B4060 |
Contitech : FS 40-6 1/8 M8 Phoenix : SP1B04 Weforma : WBE100-E1 |
|
1B7070 |
Contitech : FS 70-7 Phoenix : SP 1 B 05 Bosch : 822419002 Festo : EB-165-65 Weforma : WBE 200-E1 |
|
1B5010 |
Firestone : W01-358-7731 |
| 1B5010P01 | Firestone : W01-358-7731 |
|
1B1209 |
Firestone : W01-M58-6165 Contitech : FS120-9 Dunlop(FR) : 8"x1 S08101 Bosch : 822419003 Festo : EB-215-80 Norgren : PM/31081,(8x1) Weforma : WBE300-E1 Airtech : 140293 Megatech : 1S12 |
|
1B8X4 |
Firestone : W01-358-7564 Goodyear : 1B8-550 Contitech : FS120-10 |
|
1B8580 |
Firestone : W01-358-7598 Goodyear : 1B8-580 |
|
1B6910 |
Firestone : W01-M58-6374 Contitech : FS200-10 Phoenix : SP1B12 Dunlop(FR) : 9"1/4x110 S091 Bosch : 822419004 Festo : EB-250-85 Norgren : PM/31091(81/4x1) |
|
1B9202 |
Goodyear : 1B9-202 : 578 91 3 201 |
|
1B5330 |
Firestone : W01-358-7008 Contitech : FS330-11474 Goodyear : 1B12-300 Goodyear : 1B12-313 |
|
1B53014 |
Firestone :Style 113 Firestone: W01-358-7103 FleetPride: AS7103 Goodyear: 1B14-350 Goodyear Flex No: 578913351 Taurus :6326 |

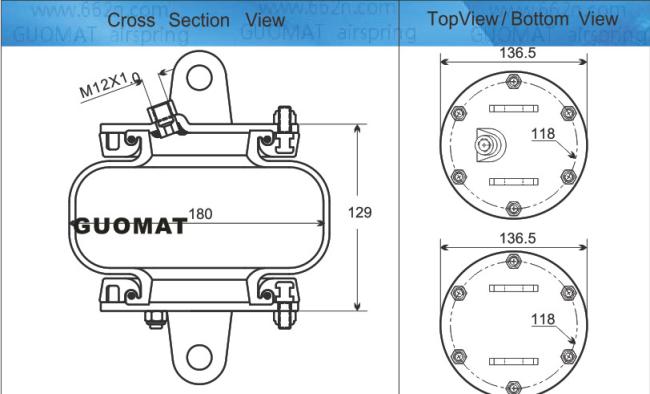

The Following is the Product Drawing

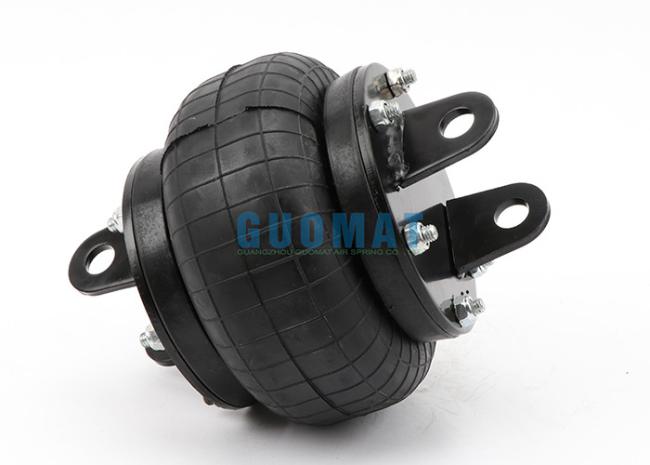

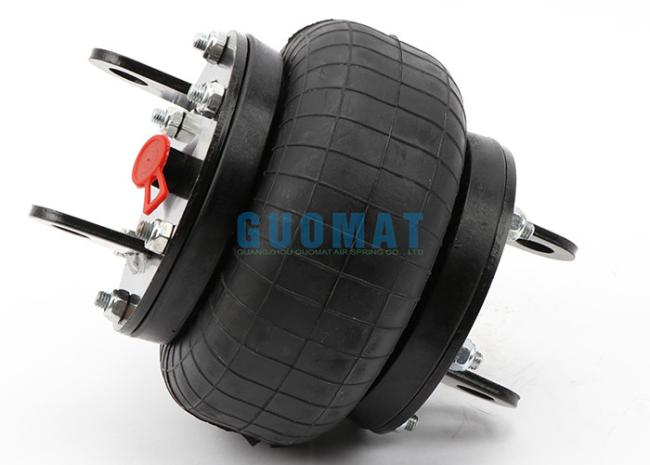

Real Pictures
