Natural Rubber Triple Convoluted Air Spring 3B20F-2P03 Industrial Air Bellow Suspension

Natural Rubber Triple Convoluted Air Spring 3B20F-2P03 Industrial Air Bellow Suspension

Product Information

Air Spring 3B20F-2P03 Technical Data

Spring Cover Plate

Top Cover Plate Diameter: 160mm

Bottom Cover Plate Diameter: 160mm

Spring Gas Hole

Gas Hole: 1/2 NPT

Spring Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter 223 mm

The Working Stroke : MAX 400 mm to MIN 200 mm

Spring Screw Or Nut

Top Cover Plate Screw (Nut) Tooth : 2X 3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2X 3/8-16UNC

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut : 44.5 mm

Advantages of Air Spring Shock Absorbers
1. Excellent shock absorption ability
GUOMAT air spring shock absorbers have the highest vibration isolation capacity of all types of vibration shock absorbers. The natural frequency of the system can be as low as 1Hz. If an additional plenum is installed, the natural frequency of the system can be even lower.


2. Stable shock absorption effect
The unique feature of GUOMAT air spring shock absorbers is that the natural frequency of the system does not change significantly when the load changes. This feature, combined with precise height control, makes it particularly suitable for installing GUOMAT air spring shock absorbers at various mounting points in equipment with unbalanced loads.

GUOMAT 3B-Type Air Spring

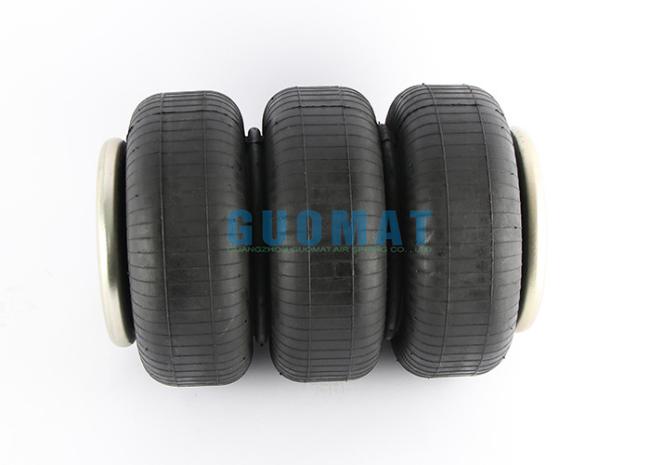

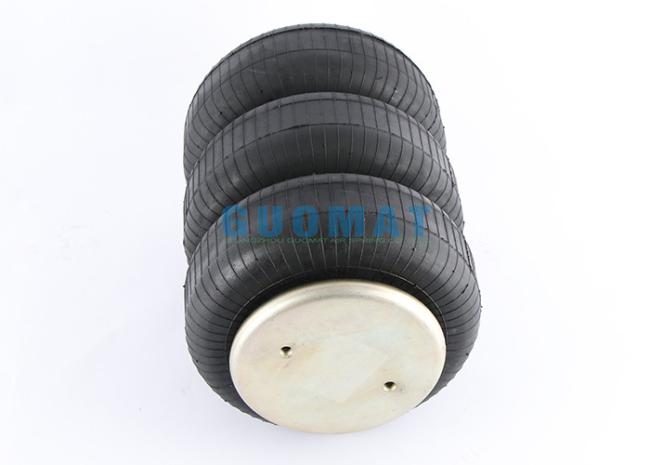

Product Photo
