150076H-1 Rubber Air Suspension Air Spring 160mm Flange Plate Industrial Air Bags
150076H-1 Rubber Air Suspension Air Spring 160mm Flange Plate Industrial Air Bags
Product Description
|
Item |
Air Spring/Shock Absorber Spring/Air Bellows |
|
Brand |
Guomat/Neutral |
|
Model Number |
150076H-1 |
|
Material |
Rubber And Steel |
|
Warranty |
1 Year |
|
MOQ |
10 PCS If We Have Stock |
|
Package |
(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
|
Delivery Time |
2-8 Working Days |
|
Payment |
T/T, L/C, PayPal, Western Union |
|
After Service |
(1) Examination Before Shipment |
|
Main products we sell |
Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
The Technical Data of Single Convoluted Rubber Air Spring
Top Cover Plate Diameter: Ø133 mm
Bottom Cover Plate Diameter: Ø133 mm
Air Hole: 1/4NPTF
The Screw: M10
Top Cover Plate Screw number: 4 pcs
Bottom Cover Plate Screw number : 4 pcs
The Distance Between the Screw: 109mm
Rubber Bellows Through Diameter: 104 mm
Rubber Bellows Natural Diameter : 160 mm
The Working Stroke : MIN 46 mm to MAX 85mm
Rubber Bellows Natural Height :76 mm
Guomat H-1 Type Air Springs
| Model | Through Diameter | Maximum outer diameter(0.7Mpa) | Bearing Capacity at Design Height | ||
| 0.2Mpa | 0.5Mpa | 0.7Mpa | |||
| 086060H-1 | 50 | 110 | 44 | 123 | 175 |
| 120060H-1 | 80 | 130 | 122 | 313 | 444 |
| 150076H-1 | 104 | 160 | 164 | 435 | 621 |
| 188102-A | 120 | 210 | 208 | 587 | 862 |
| 215120H-1 | 125 | 233 | 294 | 768 | 1109 |
| 235118H-1 | 180 | 260 | 474 | 1185 | 1684 |
| 235150H-1 | 180 | 260 | 441 | 1205 | 1740 |
| 260135H-1 | 170 | 290 | 425 | 1150 | 1670 |
| 280126H-1 | 195 | 300 | 643 | 1662 | 2370 |
| 320124H-1 | 230 | 340 | 798 | 2071 | 2965 |
| Model |
0.7Mpa Natural Frequency |
Stroke Range | Supply State Self-Weight | |
| Minimum Compressed Height | Elongated Height | |||
| 086060H-1 | 5.18 | 42 | 90 | 1 |
| 120060H-1 | 3.79 | 42 | 65 | 1.6 |
| 150076H-1 | 3.5 | 46 | 85 | 1.4 |
| 188102-A | 3.05 | 52 | 115 | 2.25 |
| 215120H-1 | 2.83 | 42 | 140 | 2.9 |
| 235118H-1 | 2.52 | 60 | 136 | 2.6 |
| 235150H-1 | 2.29 | 65 | 176 | 3.1 |
| 260135H-1 | 2.4 | 55 | 155 | 2.95 |
| 280126H-1 | 2.46 | 50 | 144 | 3.75 |
| 320124H-1 | 2.28 | 52 | 142 | 3.9 |
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.

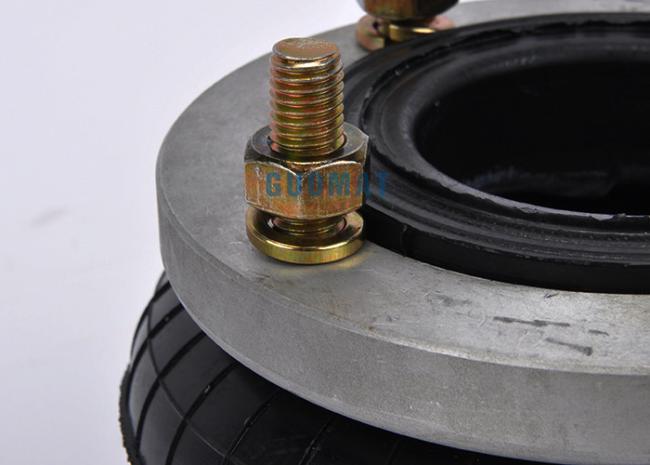

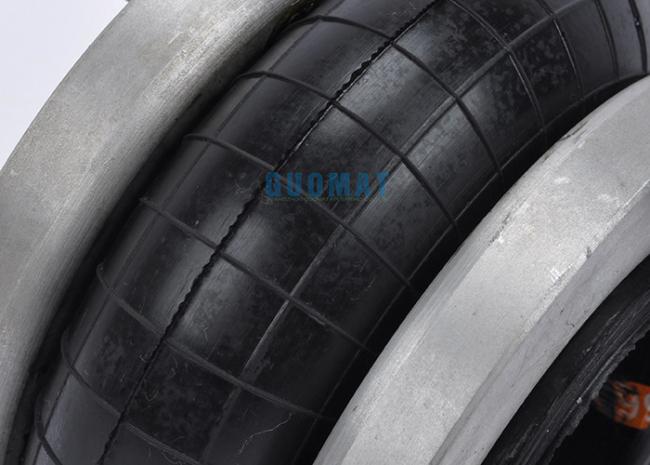

The Real Pictures of Guomat 150076H-1 Industrial Rubber Air Bags
