Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
Guomat 1B8X4 Single Convoluted Air Suspension Air Spring For Industrial Machine Reduce Shock
Product Description
FIRESTONE Number: W01-358-7564
FIRESTONE Number: W01 358 7564
FIRESTONE Number: W013587564
FIRESTONE Part Number: WO1-358-7564
FIRESTONE Part Number: WO1 358 7564
FIRESTONE Part Number: WO13587564
GOODYEAR Part Number: 1B8-550
GOODYEAR Part Number: 1B8 550
GOODYEAR Part Number: 1B 8-550
CONTITECH Part Number: FS120-10
CONTITECH Part Number: FS 120-10
CONTITECH Part Number: FS120 10
Original Equipment Manufacturer Number
|
Firestone |
w01-358-7564 |
Firestone |
w01 358 7564 |
|
Firestone |
w013587564 |
Goodyear |
1b8-550 |
|
Goodyear |
1b8 550 |
Goodyear |
1b 8-550 |
|
Contitech |
fs120-10 |
Contitech |
fs 120-10 |
|
Contitech |
fs 12010 |
Technical Data
|
Working Temperature |
-40°C bis +70°C |
|
Failure Testing |
≥3 millions |
|
Top Cover Plate Diameter |
135mm |
|
Bottom Cover Plate Diameter |
135mm |
|
Gas Hole / Air inlet |
1/4NPTF |
|
Rubber Bellows MAX Diameter |
230mm |
|
The Working Stroke |
MAX 140 mm to MIN 50 mm |
|
Top Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Bottom Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Screw Center Distance of Top Cover Plate |
70mm |
|
Screw Center Distance of Bottom Cover Plate |
70mm |
Air Spring Industry-Specific Applications
►Lift Tables
Automotive lift
Pallet lift station
Parts cage lift
►Robotics
Pick & Place
Offset load stabilizer
End of arm tooling
►Packaging
Conveyor Systems
Conveyor stop
Transfer station
►Forestry & Timber
Debarking Machine
Apply force at angle
Adjusts for vibrations
►Heavy Industry
Cement Brick Making
Dirty environment
Double-acting
No clevis needed
►Pulp & Paper
Web Positioner
Chemical resistant
High temperature
Packaging Details
|
Item |
Item No. |
N.W(kg) |
G.W(kg) |
Packing Length(cm) |
Packing Width(cm) |
Packing Height(cm) |
Qty |
|
Air Spring Bag |
1B8X4 |
2.018 |
6.434 |
24 |
24 |
24 |
3 |

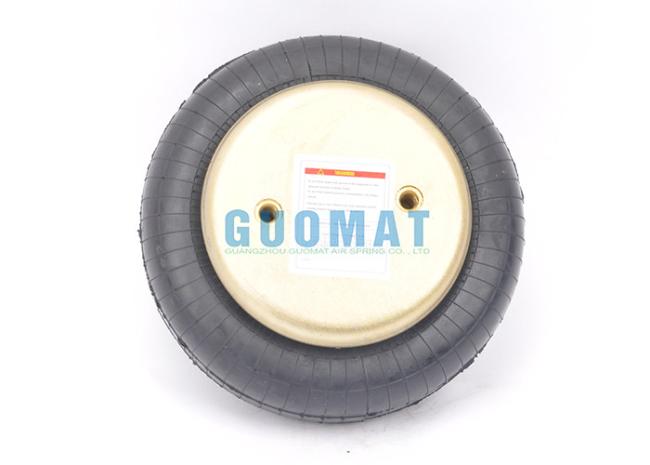

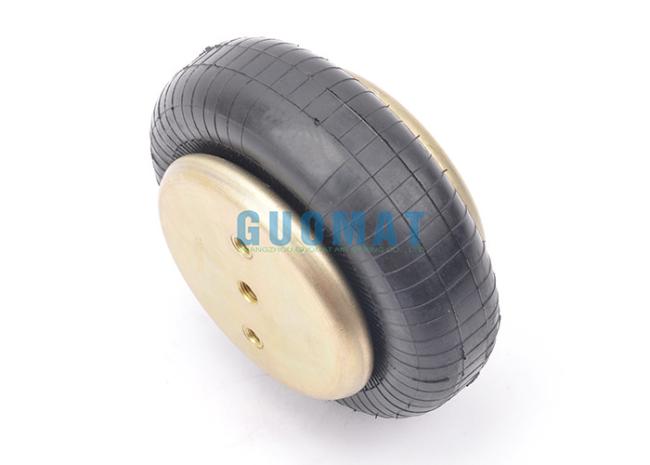

The Real Pictures of Firestone Rubber Air Bags
