Trailer Truck Air Springs Contitech 4183 NP 24 For Mercedes Benz A9423202321 A9423201321

Trailer Truck Air Spring Contitech 4183 NP 24 For Mercedes Benz A9423202321/ A9423201321

Product Description

Manufacturer: Contitech

Part Number: 4183NP24

Material: Rubber and Steel

Warranty: 12 Months

Position: Truck Axle

The Following are the Original Equipment Manufacturers Number

Contitech 4183NP24

Contitech 4183 NP24

Contitech 4183NP 24

Contitech 4183 NP 24

Airtech 135822

Airtech 34183-24C

Daimler Chrysler A9423202321

Daimler Chrysler A 9423202321

Daimler Chrysler A 942 320 2321

Daimler Chrysler A 942 320 23 21

Mercedes-Benz  A9423202321

Mercedes-Benz A 9423202321

Mercedes-Benz A 942 320 2321

Mercedes-Benz A 942 320 23 21

Mercedes-Benz A9423201321

Mercedes-Benz A 9423201321

Mercedes-Benz A 942 320 1321

Mercedes-Benz A 942 320 13 21

Mercedes-Benz A9423201421

​Mercedes-Benz A 9423201421

​Mercedes-Benz A 942 320 1421

​Mercedes-Benz A 942 320 14 21

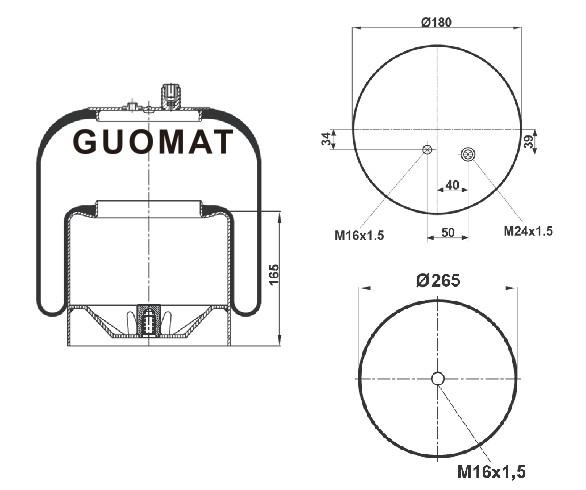

Technical Details

Natural Outer Diameter: 340mm
Top Cover Plate Diameter: 183mm
Piston Height: 163mm
Piston Width: 265mm
The Stroke: 217mm-625mm
Outside Thread: M16 x 1,5;
Outside Thread: M24 x 1,5;
Fitting Side: Rear Axle Both Sides

N.W.: 11 kg

G.W.: 11.55kg

Packing Size: 29*29*38(cm)

Advantages of Installing Air Springs on Truck Axles
1. It can improve the smooth performance of the truck and the comfort of the ride.
2. When the load weight changes, it can automatically adjust the height of the vehicle body and keep the height of the vehicle body unchanged.
3. It can reduce the impact of the wheels on the road surface, improve the service life of the road, and save a lot of road maintenance costs.
4. It can alleviate the impact of the axle and the wear of the tires, reduce the damage of parts caused by vibration, improve the service life of the vehicle, and reduce the cost of the vehicle.

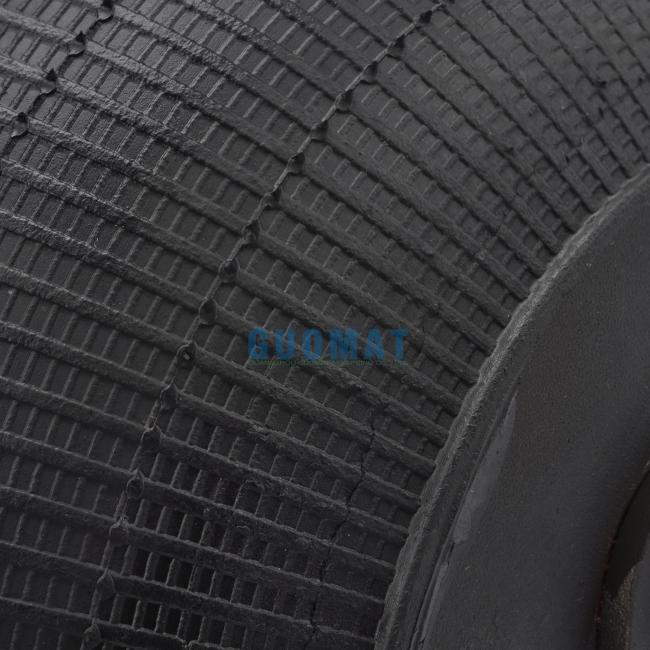

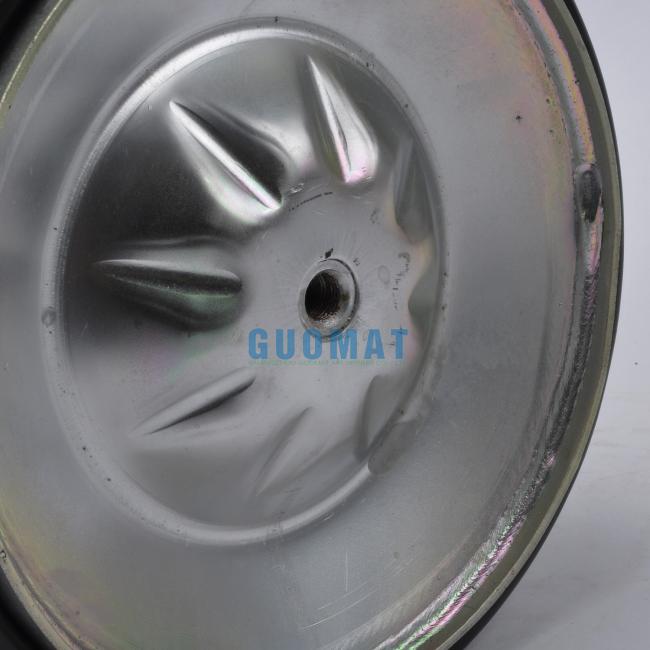

The pictures of GUOMAT No. 1T9393
