Suspension Double Convoluted Rubber Air Spring Goodyear 2B9-250 For Agricultural Machinery
Goodyear 2B9-250 Air Suspension Double Convoluted Rubber Air Spring For Agricultural Machinery
Product Description
The 2B9-250 Goodyear Air Spring takes your trucks, trailers and buses to new heights in productivity and service life. Also used in industrial equipment and agricultural machinery, bellows air springs provide a constant level of traction.
Goodyear airbags protect cargo from shock and vibration damage and provide level transportation and long-term service. Bellows air springs provide a quiet, cushioned ride and last longer than steel springs due to less vibration. The driver rides more comfortably, feels less tired and is more alert.
Manufacturer: Goodyear
Part Number: 2B9-250
Bellow Type: Double
Goodyear: 2B9-250
Goodyear: 2B 9-250
Goodyear: 2B9 250
Goodyear: 2B 9 250
Flexmember Number: 578923206
Flexmember Number: 578-92-3-206
Flexmember Number: 578 923 206
Firestone: W01-358-6943
Firestone: W01 358 6943
Firestone: W013586943
Firestone: WO1-358-6943
Firestone: WO1 358 6943
Firestone: WO13586943
Contitech: FD 200-25 426
Contitech: FD200-25 426
Contitech: FD 200-25426
Contitech Bellow: 161332
Triangle: 6332
Triangle Bellow: 4426
| Watson&Chalin | AS-0041 | Neway/SAF | 90557237 |
| V-Steer II | Lift Bag | Van Raden | |
| Ridewell | 1003586943C | Tuthill | 6352 |
Detailed Technical Parameters of 2B9-250
|
Cover Plate |
Top Cover Plate Diameter:160mm |
|
Bottom Cover Plate Diameter:160mm |
|
|
Air Inlet |
1/4 NPTF |
|
Blind Nut |
Screw Center Distance Of Top Cover Plate:89mm |
|
Screw Center Distance Of Bottom Cover Plate:89mm |
|
|
Screw And Gas Hole Distance Of Top Cover Plate:44.5mm |
|
|
Top Cover Plate Screw (Nut) Tooth:2X1/2-13UNC |
|
|
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
|
|
Rubber Bellow |
Rubber Bellow MAX Diameter:262mm |
|
The Working Stroke:MAX 79mm to MIN 325mm |
|
|
Maximum Height:325mm |
|
|
Minimum Height:79mm |
|
|
Compression Height:105mm |
Goodyear Double Convoluted Type Air Bags
2B9-606 ; 2B9-246
2B9-228 ; 2B9-252
2B9-229 ; 2B9-218
2B9-216 ; 2B9-250
2B9-204 ; 2B9-253
2B9-207 ; 2B9-254
2B9-201 ; 2B9-269
2B9-206 ; 2B9-251
2B9-210 ; 2B7-540
2B9-200 ; 2B12-425
2B9-200 ; 2B12-311
2B9-216 ; 2B12-411
2B9-246 ; 2B12-412
2B9-201 ; 2B12-304
2B9-230 ; 2B12-309
2B9-265 ; 2B12-316
2B9-280 ; 2B12-320
2B9-245 ; 2B12-307
2B10-226 ; 2B12-433
2B9-287 ; 2B12-445
2B9-206 ; 578923309
2B9-209 ; 2B12-410
2B8-550 ; 2B12-312
2B8-153 ; 2B12-313
2B8-150 ; 2B12-459
2B8-153 ; 2B12-426
2B8-550 ; 2B12-319
2B9-253 ; 2B12-406
2B9-352 ; 2B12-432
2B12-427 ; 2B12-320
2B12-454 ; 2B14-356
2B14-453 ; 2B12-434
2B12-345 ; 2B12-346
2B12-440 ; 2B14-476

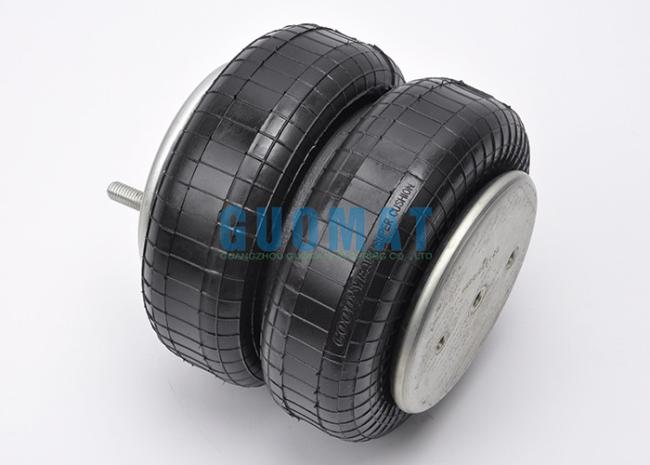

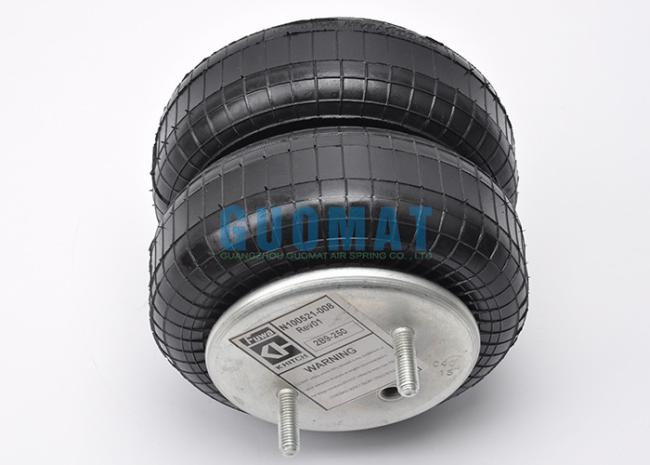

The Real Pictures
