Single Convoluted Air Spring Contitech FS530-14 Industrial Air Rubber Bag 3/4 Air Fitting


FS 530-14 3/4 Technical Data

Top Cover Plate Diameter:Ø289mm

Gas Hole / Air inlet:3/4NPTF

Screw Center Distance of Top Cover Plate:158.8mm

Top Cover Plate Screw (Nut) Tooth:4X3/8-16UNC

Bottom Cover Plate Diameter:Ø289mm

Screw Center Distance of Bottom Cover Plate:158.8mm

Bottom Cover Plate Screw(Nut)Tooth:4X3/8-16UNC

The Rubber Bellow MAX Diameter:406mm

The Working Stroke:81mm-160mm

OEM Number

GUOMAT Number: 1B53014-3/4

Contitech Number: FS530-14

Contitech Number: FS530-14 CI

Contitech Number: FS530-14 CI 3/4

Contitech Number: FS530-14 CI 3/4 NPT

Contitech Number: FS530-14 CI 3/4 NPT (OS)

Contitech Number: FS 530-14

Contitech Number: FS 530-14 CI

Contitech Number: FS 530-14 CI 3/4

Contitech Number: FS 530-14 CI 3/4 NPT

Contitech Number: FS 530-14 CI 3/4 NPT (OS)

We have two different kinds of air holes

1.1B53014-1/4

With clamped plates
G 3/4 air inlet

2.1B53014-3/4

With clamped plates
G 1/4 air inlet

Other Single Convoluted Air Spring

Contitech Part Number

FS 40-6 1/8 M8

FS 70-7

FS 120-9 3/4 M8

FS 120-9 1/4 M8

FS 200-10 3/4 M8

FS 200-10

FS 70-7 1/4 M8

FS 330-11 474

FS 330-11

FS 330-11 468

FS 330-14

FS 330-11 647

FS 120-10

FS40-6 1/8 M8

FS70-7

FS120-9 3/4 M8

FS120-9 1/4 M8

FS200-10 3/4 M8

FS200-10

FS70-7 1/4 M8

FS330-11 474

FS330-11

FS330-11 468

FS330-14

FS330-11 647

FS120-10

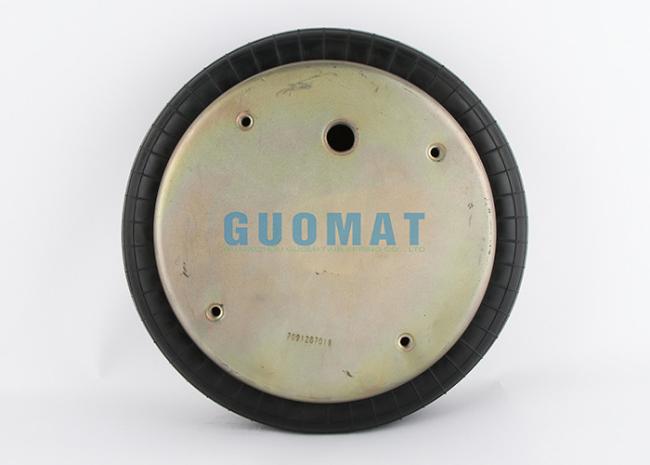

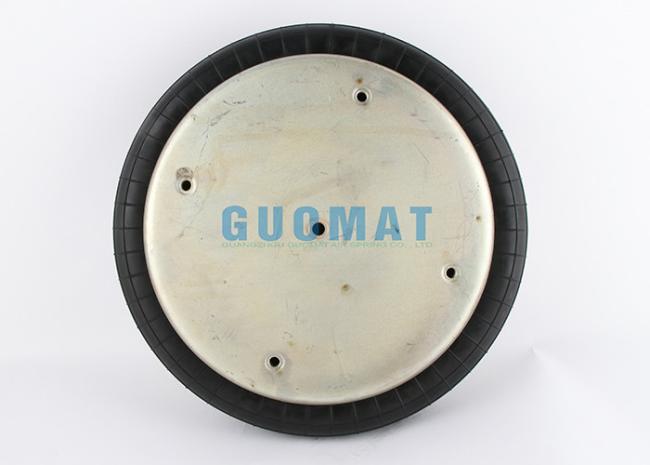

The Real Pictures of FS530-14 3/4
