W01-358-7731 Firestone Industrial Air Suspension Air Spring With 1/4" NPT Centered Port
W01-358-7731 Firestone Industrial Air Suspension Air Spring With 1/4" NPT Centered Port
Product Description
|
Item |
Air Spring |
Model NO. |
1B7731 |
|
Material |
Natural Rubber+High Quality Steel |
Warranty |
12 Months |
|
MOQ |
10 Pieces |
Color |
Black |
Original Equipment Manufacturer Number
Firestone Part Number:W01-358-7731
Firestone Part Number:W01 358 7731
Firestone Part Number:W013587731
Firestone Part Number:WO1-358-7731
Firestone Part Number:WO13587731
Firestone Part Number:WO1 358 7731
Firestone Part Number:w01-358-7731
Firestone Part Number:w013587731
Firestone Part Number:w01 358 7731
Technical Data
|
Top Cover Plate Diameter:Ø115mm |
|
Gas Hole / Air Inlet:1/4NPTF |
|
Screw Center Distance of Top Cover Plate:44.5mm |
|
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
|
Bottom Cover Plate Diameter:Ø115mm |
|
Screw Center Distance of Bottom Cover Plate:44.5mm |
|
Bottom Cover Plate Screw(Nut)Tooth:2X3/8-16UNC |
|
The Rubber Bellow MAX Diameter:165mm |
|
The Working Stroke:50mm-115mm |
We have two kind of 1B7731 Air Bag
GUOMAT NO. :1B7731
The air hole is located in the middle of the top cover plate.
GUOMAT NO. :1B7731B
The air hole is located off-center on the upper cover
Single Convoluted Air Bellow
|
GUOMAT NO. |
Firestone NO. |
Contitech NO. |
Gas Hole |
|
1B6165 |
W01-M58-6165 |
FS 120-9 |
G3/4 |
|
1B6374 |
W01-M58-6374 |
FS 200-10 |
G3/4 |
|
1B7008 |
W01-358-7008 |
FS 330-11 474 |
1/4NPTF |
|
1B7009 |
W01-358-7009 |
FS 330-11 468 |
1/4NPTF |
|
1B6994 |
W01-358-6994 |
FS 330-11 647 |
|
|
1B7451 |
W01-358-7451 |
|
1/4NPTF |
|
1B7564 |
W01-358-7564 |
FS 120-10 |
1/4NPTF |
|
1B7725 |
W01-358-7725 |
|
1/4-18NPTF |
|
1B7095 |
W01-358-7095 |
|
1/4NPTF |
|
1B7551 |
W01-358-7551 |
|
1/4NPTF |
|
1B7598 |
W01-358-7598 |
|
|
|
1B7094 |
W01-358-7094 |
|
3/4NPT |
Contact Us
We operate auto parts air springs, shock absorbers, industrial air springs and other shock absorption products.
If you have any questions about air springs, please contact me.
We will be your best choice, we will provide you with professional services.

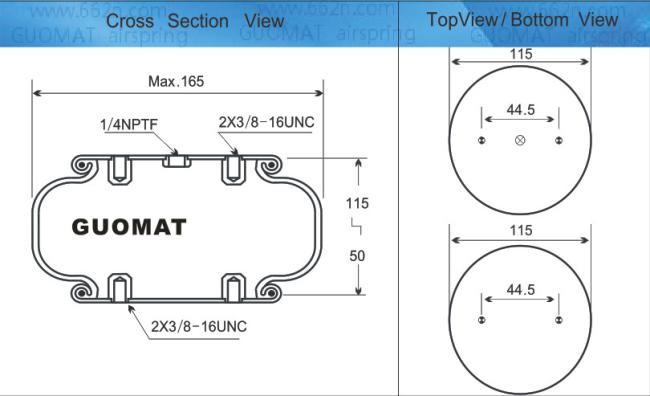

The Drawings for W01-358-7731 Firestone Air Spring

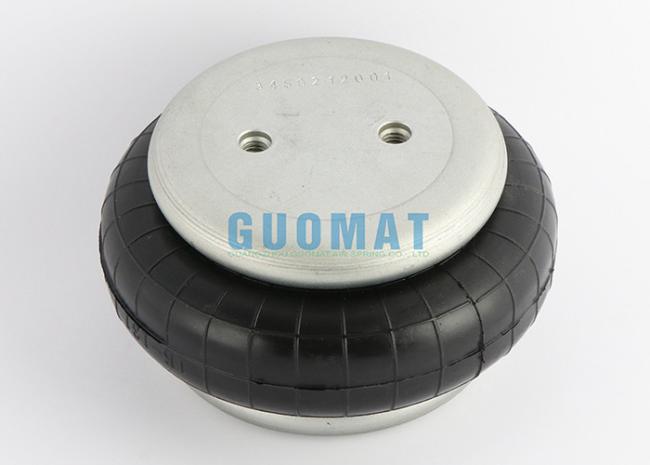

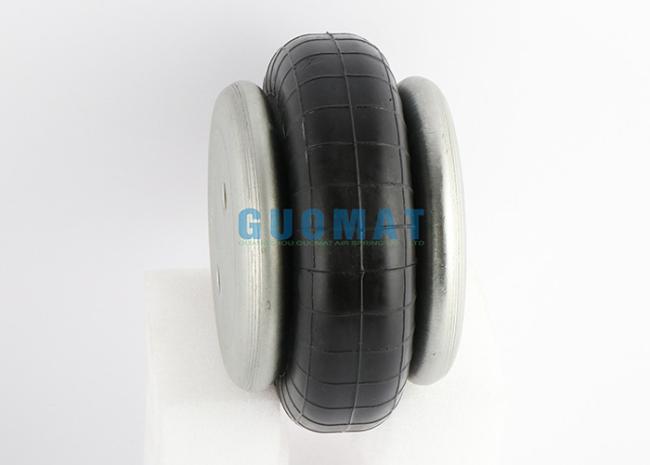

The Real Pictures
