Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags

Double Convoluted Firestone Air Spring Bellow 255-1.5 Air Connection 3/8NPT Rubber Air Bags

Product Description



Specifications and Detailed Technical Parameters

Cover Plate
Top Cover Plate Diameter: 111mm
Bottom Cover Plate Diameter: 111mm

Gas Hole/Air Hole
Gas Hole: 3/8NPT

Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 44.5 mm

Rubber Bellows
Rubber Bellows MAX Diameter: 165mm
The Stroke: Min 65mm-Max 175mm

Air springs are used in industrial equipment

When we talk about air springs, what many people can think of is the shock absorption on cars. In fact, in the automotive field, installing air springs in automobile suspension can bring excellent shock absorption effects. Of course, air springs can not only be used in the automotive industry, but also in industry.

With the development of industry, air springs are widely used in industrial production equipment. For example, paper machinery, vibrating screens, presses, centrifugal dehydrators, casting and textile machinery and equipment, precision machine tools and other industrial equipment. When the mechanical equipment operates, the noise generated by the vibration will cause damage to the machinery itself and physical harm to the staff. When the mechanical equipment is equipped with an air spring, it can cache and absorb the vibration generated by the machine's work, effectively reducing the noise. At the same time, it can also extend the service life of machinery and equipment, improve the production efficiency of enterprises, and be conducive to the sustainable development of enterprises.

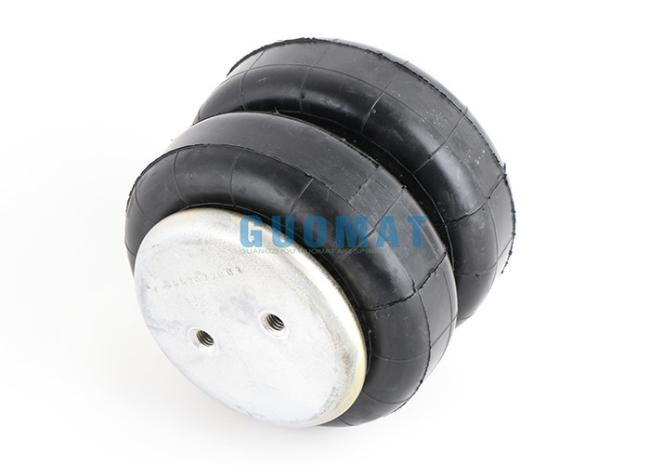

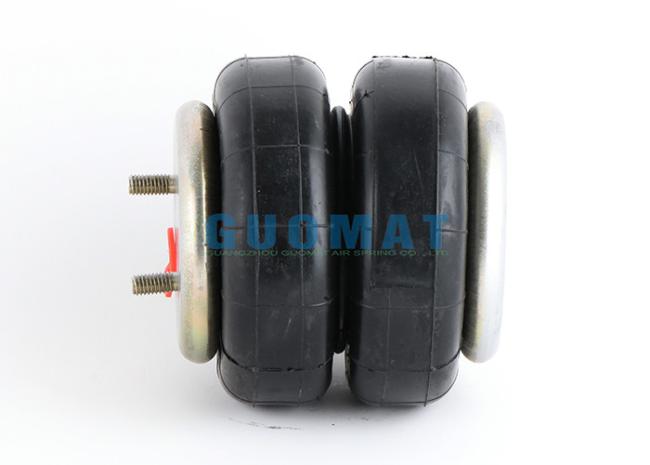

The Real Pictures
