W01-358-6910 Firestone Double Convoluted Air Spring Goodyear 2B9-200 Rubber Air Bags
W01-358-6910 Firestone Double Convoluted Air Spring Goodyear 2B9-200 Rubber Air Bags
Product Description
|
Item |
Goodyear Industrial Air Spring |
|
Brand |
Guomat/Neutral |
|
Model Number |
2B6910 |
|
Material |
Rubber And Steel |
|
Warranty |
12 Months Warranty |
|
MOQ |
10 PCS |
|
Package |
(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
|
Delivery Time |
3-8 Working Days |
|
Payment |
T/T, L/C, PayPal, Western Union |
|
After Service |
(1) Examination Before Shipment |
|
Main products we sell |
Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
Cross Reference Number
|
Firestone |
W01-358-6910 |
|
Firestone |
W01 358 6910 |
|
Firestone |
W013586910 |
|
Contitech |
FD200-19 320 |
|
Contitech |
FD 200-19 |
|
Contitech |
FD 200-19 320 |
|
Goodyear |
2B9-200 |
|
Goodyear |
2B9-202 |
|
Goodyear |
2B9-216 |
|
Goodyear |
578423202 |
|
Triangle |
6325/4320 |
|
Taurus |
KF218-6910 |
Brake & Wheel : M3501
Purchase Order Data
Min.Pressure: 0 Bar
Return Force to Min.Height: ≤200N
Overall Weight With Clamped Plates: 3.2KG
Vibration isolation-dynamic dcharacteristic values
Design height H:recommended 220mm,minimum 205mm
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Force (Load) ［KN］ | 6.1 | 8.2 | 10.3 | 12.5 | 14.5 | 16.5 | 6.0 |
| Spring Rate ［N/cm］ | 750 | 960 | 110 | 1340 | 1510 | 1730 | |
| Natural Frequency［Hz］ | 1.8 | 1.7 | 1.7 | 1.6 | 1.6 | 1.6 |
Pneumatic application-static characteristic values
Force F(kN)
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H ［mm］ | 250 | 4.9 | 6.6 | 8.2 | 9.5 | 11.7 | 13.4 | 6.5 |
| 210 | 6.7 | 8.8 | 11.0 | 13.3 | 15.5 | 17.6 | 5.8 | |
| 170 | 7.9 | 10.5 | 13.1 | 15.7 | 18.3 | 20.7 | 4.9 | |
| 130 | 9.1 | 12.0 | 15.0 | 17.8 | 20.7 | 23.4 | 4.0 | |
| 90 | 9.9 | 13.2 | 16.6 | 19.8 | 23.0 | 25.8 | 2.9 | |

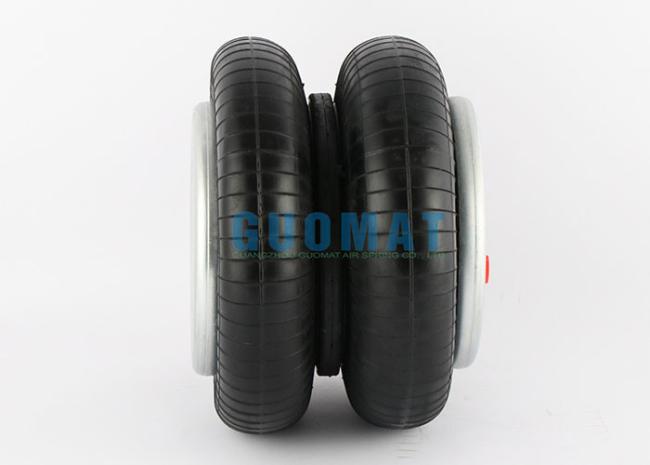

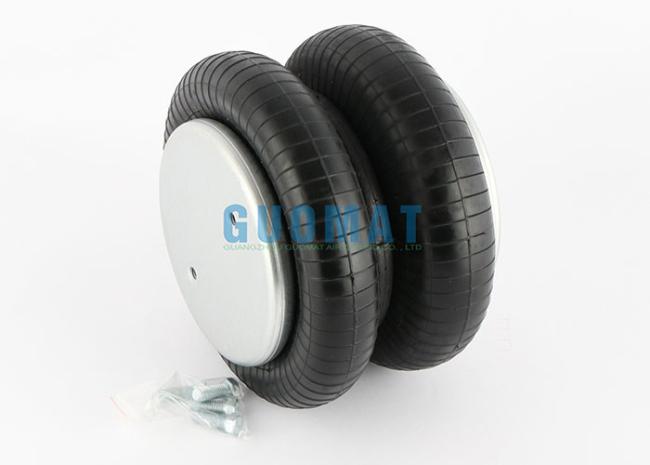

The Real Pictures
