1B6-833 Single Convoluted Goodyear Air Spring 579-91-2-833 Rubber Air Spring Bellows
1B6-833 Goodyear Single Convoluted Type Air Spring 579-91-2-833 Rubber Air Spring Bellows
Product Description
Product Manufacturer: GOODYEAR
Country of Origin: Mexico
Goodyear Part Number: 1B6-833
Goodyear Part Number: 1B 6-833
Goodyear Part Number: 1B6 833
Goodyear Part Number: 1B 6 833
Goodyear Bellow Number: 579-91-2-833
Goodyear Bellow Number: 579-912-833
Goodyear Bellow Number: 579912833
About Assembly Number
|
Goodyear Part No. |
Explanation |
|
1 |
Number of convolutions in the assembly 1 = Single Convolute |
|
B |
This letter refers to the type of air spring |
|
6 |
This could be a single or double digit number. It is the |
|
833 |
These three numbers identify the specific end retainer, |
GOODYEAR Single Convoluted Type Air Spring Technical Data
|
Part Number |
Usable Stroke |
Gas Hole |
Bumper |
Max Dia @ 100 psi In |
|
1B12-305 |
4.6 |
3/4 |
Yes |
13.2 |
|
1B12-313 |
4.9 |
1/4 |
No |
13.2 |
|
1B14-350 |
4.9 |
1/4 |
No |
15.2 |
|
1B14-351 |
3.0 |
1/4 |
Yes |
15.2 |
|
1B14-352 |
4.9 |
3/4 |
No |
15.2 |
|
1B14-353 |
3.0 |
3/4 |
Yes |
15.2 |
|
1B14-362 |
6.0 |
3/4 |
No |
15.9 |
|
1B14-364 |
6.0 |
1/4 |
No |
15.9 |
|
1B15-375 |
5.6 |
1/4 |
No |
17.5 |
|
1B15-376 |
3.7 |
1/4 |
Yes |
17.5 |
|
1B15-377 |
5.6 |
3/4 |
No |
17.5 |
|
1B15-378 |
3.7 |
3/4 |
Yes |
17.5 |
Product and Application
- Bus with Air Spring (Airbag)
- Truck Air Spring (Airbag)
- Cab Air Spring(Airbag)
- Industrial Equipment for Air Spring(Airbag)
- Passenger Car Air Spring(Airbag)
Industrial Application
Air spring technology is applied to industrial shock absorption equipment, which effectively improves the working efficiency of the equipment and the safe service life of the equipment.
Springs do not have internal levers, pistons or sliding seals like common cylinder-type devices, greatly reducing pneumatic or
Reduce the cost of hydraulic cylinders and win more economic benefits for customers.
feature.
● Low cost and wide range of specifications
● Long life, maintenance-free and lubrication-free, no internal control rods or pistons
● No friction, soft media
● Bending capacity, lateral load capacity, compact original height

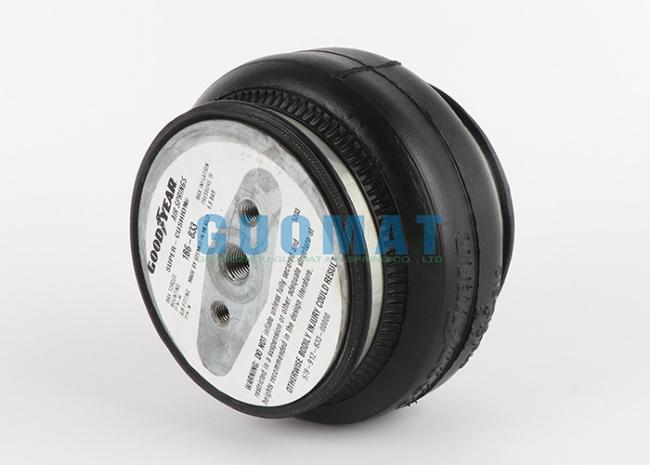

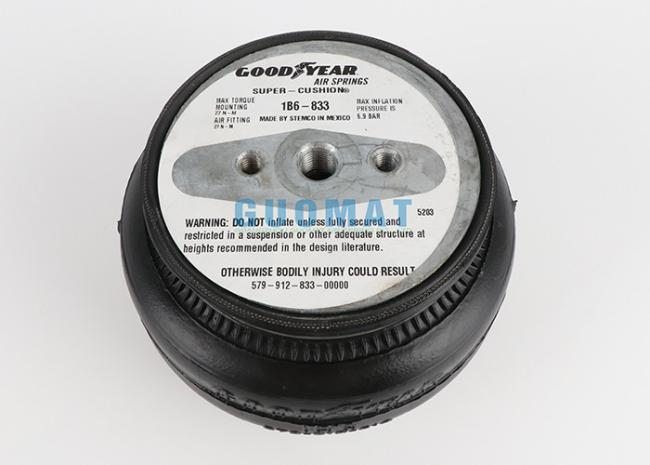

The Real Pictures
