Truck Air Suspension W01-M58-8966 Complete Air Spring Goodyear 1R14-702 1R14-703 1R14-712

Truck Air Suspension W01-M58-8966 Complete Air Spring Goodyear 1R14-702/1R14-703/1R14-712

The Technicle Data for GUOMAT 1T8966

• Gas Hole/Air Fitting

Gas Hole: M22X1.5

Distance Between Gas Hole and Stud: 25 mm

Distance Between Gas Hole and Central Axis: 95 mm

• Cover Plate

Top Cover Plate Diameter: 311mm

• Stud

Top Cover Plate Stud Tooth: 2 pcs M 12

The Stud Center Distance of Top Cover Plate: 210 mm

• Rubber Bellow

The Rubber Bellow Natural Diameter: 355mm

• Bumper Block

Bumper Block Height: 30 mm

• Bottom Piston

Bottom Piston Diameter: 256mm

Bottom Piston Height:188.5 mm

• Piston Bolt

Piston Bolt Tooth: M16

12 pieces of Bolt

Middle Inside Between Center Bolt: 70 mm

High-Quality GUOMAT 1T8966 Rubber Air Spring Cross FIRESTONE W01M588966

CONTITECH 881MB  CONTITECH 881 MB

FIRESTONE W01 M58 8966 FIRESTONE 1T66F-10.8

GOODYEAR 1R 14-702 GOODYEAR1R 14-703 GOODYEAR 1R 14-712

DUNLOP D14B36 CF GOMMA 1TC360-45-205171

TAURUS KR836-05

Advantages of Truck Air Spring
1. Only a stable vehicle can provide safe and correct aiming of headlights - critical to night driving safety
2. When towing trailers and trucks and installing air springs, the height of the vehicle can be adjusted for precise alignment, thereby eliminating vehicle sway.
3. It can improve the comfort of the driver and relieve driver fatigue.

4. Effectively reduce fuel consumption and improve economic benefits
5. Protect the parts of the vehicle itself and prolong the life of the vehicle

Firestone Air Spring Assembly

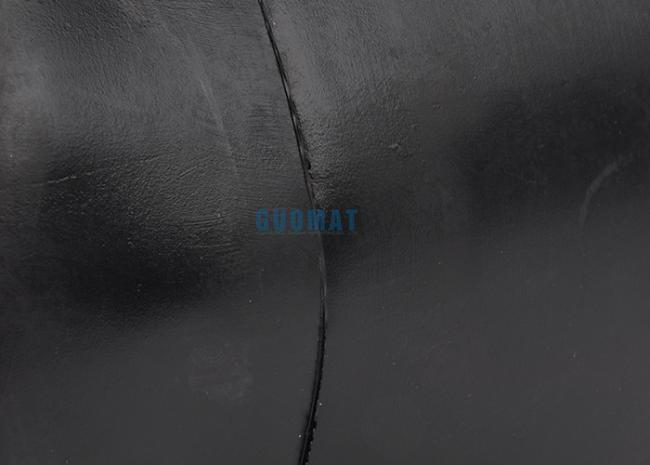

The Real Pictures of W01M588966 Firestone Air Spring
