Single Convoluted Rubber Trailer Air Spring Firestone W01-M58-6165 Norgren PM/31081 For Industrial


Product Description

Product: For Industrial Air Spring Reduce Shock

Spring Material: Rubber/Metal

Warranty: 12 Months

Air Spring: Air Vibration Industrial

Single Packing Size: 24*24*24(cm)

Weight: 2.0kg

Firestone: W01-M58-6165

Contitech: FS120-9

Norgren: PM/31081

Cross Reference Informatio

Firestone W01-M58-6165 Air Spring Technical Data

1.Top Cover Plate Blind Nut: M-8X1.5,15mm deep

2.Screw Center Distance of Top Cover Plate: 70mm

3.Top Cover Plate Diameter: 135mm

4.Air Inlet: G3/4

5.Bottom Cover Plate Blind Nut: M-8X1.5,15mm deep

6.Screw Center Distance of Bottom Cover Plate: 70mm

7.Bottom Cover Plate Diameter: 135mm

8.Rubber Bellows MAX Diameter: 215mm

9.The Working Stroke: MAX 115mm to MIN 50mm

10.Maximum Height: 115mm

Air Inlet: G1/4

Force Table(Use for Air Spring Design)

Every standard air spring consists of 4 layers

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.

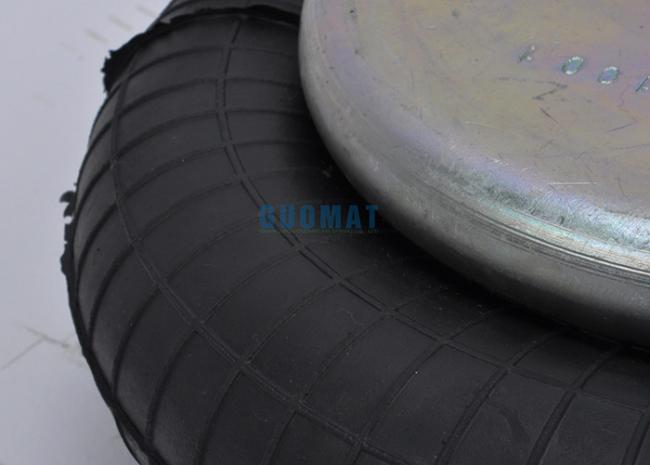

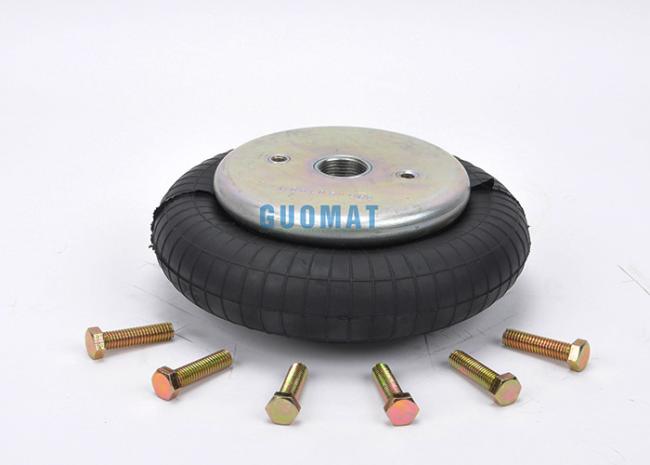

The Real Pictures
