910-16P310 Truck Air Springs W01-358-9082 Replaces 1R12-092 Goodyear Air Balloon

Firestone Truck Air Suspension Spring W01-358-9082 Replaces 1R12-092 Goodyear Air Balloon

Product Description

Part No.: 1T9082

Application: For Truck/For Trailer

Spring Type: Rolling Lobe

Material: Rubber/Metal

GUOMAT Warranty: 12 Months Warranty

MOQ: 10 Pieces

Prot: Huangpu Prot

The Following is the Cross Reference

• Firestone W01-358-9082

• Firestone W01 358 9082

• Firestone W013589082

• Contitech 910-16P310

• Contitech 910-16 P 310

• Goodyear 1R12-092

• Goodyear 1R12-093

• Goodyear 1R12-509

• Triangle 8310

• Taurus KR506-9082

• Airtech 132302

• Airtech 34156-05KPP

• Neway 90557006

• Neway 90557027

• Neway 90557037

• Neway 90557054

• Neway 90557075

• Dayton 352-9082

• Granning 15610

• HAD PMABG9082B

• R&S Truck 1090217

• Loadguard SC2035

• Hutchens H-9630-01

• Watson&Chalin AS-0011

• Ridewell 1003589082C

• ROR/Meritor MLF7114

• Hendrickson 35614-7

• Hendrickson 365147

• Hendrickson S11651

• Hendrickson B2066

• Hendrickson B-12514-007
• Batco 10-99082
• Binkley B-12514-007
• Euclid E-FS9082
• Holland 90557075
• Holland 90557054
• Holland 90557033
• Holland 90557027
• Holland 90557006
• Holland 90044200
• Mac-k truck 57QL310
• Navistar 517096C91

The Technical Data of GUOMAT 1T9082

1.Natural Diameter of Rubber Bellow: 305mm

2.Combo Stud: 1/4-18UNF ; 3/4-16UNF

3.The Bolt/Stud on Top Cover Plate: 1/2-13UNC

4.Distance between /BoltStud and Combo Stud: 140mm

5.Top Cover Plate Diameter: 230mm

6.Piston Height: 142mm

7.The Stroke: 200mm-540mm

8.Piston Width: 258

​Firestone Air Spring Bag ---Hendrickson

How to Maintain Air Springs
We should check the following during car maintenance (never try to repair the air spring when the air spring is filled with air pressure)

1. Check the outside diameter of the air spring. Check for irregular cracks
2. Check the air pipe. Verify that the air tube does not have any contact with the outer diameter of the air spring.
3. When the air spring is at the maximum outer diameter, check whether the clearance around it is sufficient.
4. Check whether there is foreign matter accumulation on the outer diameter of the piston
5. The correct suspension height should be maintained.
6. The height valve (height control valve) plays an important role in keeping the entire air spring system working as required. Clean, inspect or replace as necessary.
7. Check whether the shock absorber is installed correctly, and check whether there is oil leakage and whether the end connection parts are damaged.
8. Check all mounting hardware (nuts, screws) for tightness

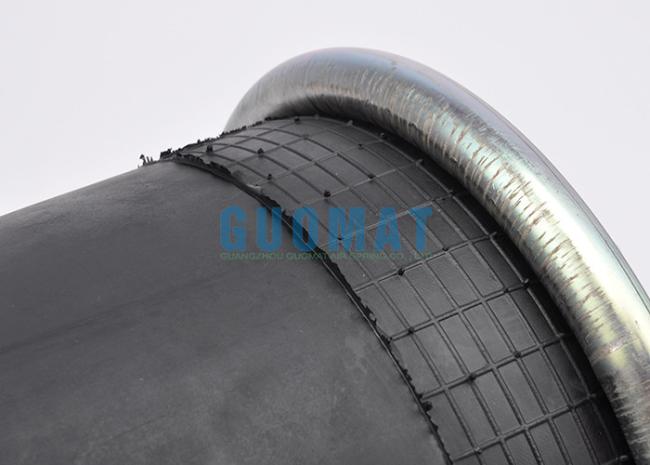

The Real Pictures
