Gas Filled Double Convoluted Air Bags 2B9-250 Goodyear Air Spring For Agricultural Machine
Durable Double Convoluted Air Bags 2B9-250 Goodyear Air Spring 578-92-3-206 For Agricultural Machine
Product Description
Air Spring Supplier: Firestone
Competitor/Supplier Number: W01-358-6943
Air Spring Supplier: Firestone
Competitor/Supplier Number: W01 358 6943
Air Spring Supplier: Firestone
Competitor/Supplier Number: W013586943
Air Spring Supplier: Contitech
Reference: 161332
Competitor/Supplier Number: FD200-25 426
Air Spring Supplier: Contitech
Reference: 161332
Competitor/Supplier Number: FD 200-25 426
Air Spring Supplier: Goodyear
Reference: 578923206
Competitor/Supplier Number: 2B9-250
Air Spring Supplier: Goodyear
Reference: 578-92-3-206
Competitor/Supplier Number: 2B 9-250
Air Spring Supplier: Triangle
Reference: 6332
Competitor/Supplier Number: 4426
| Watson&Chalin | AS-0041 |
| Neway/SAF | 90557237 |
| V-Steer II(Lift Bag) | |
| Van Raden | |
| Ridewell | 1003586943C |
| Tuthill | 6352 |
Detailed Technical Information
|
Cover Plate |
Top Cover Plate Diameter:160mm |
|
Bottom Cover Plate Diameter:160mm |
|
|
Air Inlet |
1/4 NPTF |
|
Blind Nut |
Screw Center Distance Of Top Cover Plate:89mm |
|
Screw Center Distance Of Bottom Cover Plate:89mm |
|
|
Screw And Gas Hole Distance Of Top Cover Plate:44.5mm |
|
|
Top Cover Plate Screw (Nut) Tooth:2X1/2-13UNC |
|
|
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC |
|
|
Rubber Bellow |
Rubber Bellow MAX Diameter:262mm |
|
The Working Stroke:MAX 325mm to MIN 79mm |
|
|
Maximum Height:325mm |
|
|
Minimum Height:79mm |
|
|
Compression Height:246mm |
We also supply other RideWell air springs
Manufacturer Part Number
1003587009C (Air Lift Air Bag)
1003586897C (Air Lift Air Bag)
1003586900C (Air Lift Air Bag)
1003586902C (Air Lift Air Bag)
1003586905C (Air Lift Air Bag)
1003586908C (Air Lift Air Bag)
1003586910C (Air Lift Air Bag)
1003586932C (Air Lift Air Bag)
1003587893C (Air Lift Air Bag)
1003587325C (Air Lift Air Bag)
1003586945C (Air Lift Air Bag)
1003586943C (Air Lift Air Bag)
1003586946C (Air Lift Air Bag)
1003586948C (Air Lift Air Bag)
1003587136C (Air Lift Air Bag)
1003587180C (Air Lift Air Bag)
1003587181C (Air Lift Air Bag)
1003587183C (Air Lift Air Bag)
1003587400C (Air Lift Air Bag)
1003587403C (Air Lift Air Bag)
1003587404C (Air Lift Air Bag)
1003587406C (Air Lift Air Bag)
1003587410C (Air Lift Air Bag)
1003587180C (Air Lift Air Bag)
1003587424C (Air Lift Air Bag)
1003587429C (Air Lift Air Bag)
1003587437C (Air Lift Air Bag)
1003587781C (Air Lift Air Bag)
1003587325C (Air Lift Air Bag)
1003587437C (Air Lift Air Bag)
1003588008C (Air Lift Air Bag)
1003588010C (Air Lift Air Bag)
1003588016C (Air Lift Air Bag)
1003588030C (Air Lift Air Bag)
1003587808C (Air Lift Air Bag)
Shock Absorption of Automobile Suspension
Why use air spring shock absorbers for car suspension upgrades? Quite simply, air shocks, also known as adaptive damping shocks, go through a damping process that reduces spring movement. Shock absorbers reduce the magnitude of vibration by converting the kinetic energy of suspension movement into heat energy.
The most common type of shock absorber has an upper mount attached to a piston rod, which in turn is attached to a piston, which is located in a cylinder filled with hydraulic oil.
When the wheel encounters a bumpy road surface, so that the spring moves, the energy of the spring will be transmitted to the shock absorber through the upper support, and then to the piston. There are holes in the piston, and hydraulic oil will seep out of the holes when the piston moves. Thereby slowing down the movement speed of the piston, the speed of the spring will be slowed down accordingly.

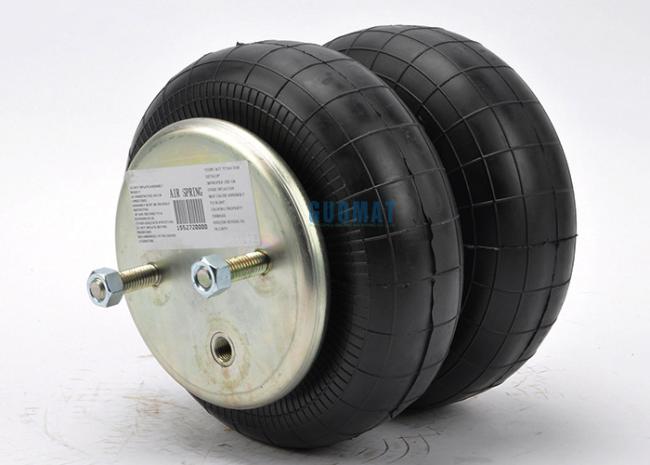

Product Real Pictures
