W01-358-7994 Firestone Triple Convoluted Air Spring 3B12-328 Goodyear Air Bellows
W01-358-7994 Firestone Triple Convoluted Air Spring 3B12-328 Goodyear Air Bellows China
Product Information
Item:Convoluted Type Air Spring
Model No.:3B7994
Material:Natural Rubber
Warranty:12 Months
MOQ:10 Pieces
Number of Convolution:3 Convoluted
Delivery Time:3-8 working days
Color:Black
Technical Data
Top Cover Plate Diameter: 231mm
Bottom Cover Plate Diameter: 231mm
Top Cover Plate Screw (Nut) Tooth: 3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
Top Cover Plate Screw(Nut) With Air Hole Tooth: 1/4NPTF ; 3/4-16UNC
Screw and Air Inlet Distance of Top Cover Plate: 140mm
Screw Center Distance of Bottom Cover Plate: 157.5mm
Rubber Bellows MAX Diameter: 330mm
The Working Stroke: 130mm-460mm
The Following is the Cross Number
Firestone Part Number: W01-358-7994
Firestone Part Number: W01 358 7994
Firestone Part Number: W013587994
Contitech Part Number: FT330-29 546
Contitech Part Number: FT 330-29 546
Contitech Part Number: 64572
Goodyear Part Number: 3B12-328
Goodyear Part Number: 3B 12-328
Triangle Part Number: 4546
Triangle Part Number: 6364
Watson&Chalin Number: AS-0019-F
Euolid/meritor After Market: S-FS7994
Features of W01-358-7994 Firestone Air Spring
- Carefully evaluated against OEM specifications
- High-strength fabric and rubber compound for durability and trouble-free
- Reputation for Superior Performance
- Reduce Driver Fatigue and Improve Concentration on the Road
- Designed using the latest technological developments and improvements
Triple Convolution Air Spring Use for Pick-Up
|
FIRESTONE |
CONTITECH |
GOODYEAR |
TRIANGLE |
|
W01-358-7995 |
FT 330-29 547 |
3B12-329 |
4757/4703 |
|
W01-358-7996 |
FT 330-29 520 |
3B12-335 |
6334/4520 |
|
W01-358-8006 |
FT 330-29 430 |
3B12-304 |
6334/4430 |
|
W01-358-8008 |
FT 330-29 431 |
3B12-300 |
6334/4431 |
|
W01-358-8010 |
FT 330-29 432 |
3B12-301 |
6334/4432 |
|
W01-358-8016 |
FT 330-29 433 |
|
6334/4433 |
|
W01-358-8025 |
FT330-29 469 |
3B12-300 |
6334/4469 |
|
W01-358-8027 |
FT330-29 466 |
3B12-310 |
6334/4466 |
|
W01-358-8030 |
FT 330-29 498 |
3B12-304 |
6334/4432 |
|
W01-358-7808 |
FD 330-22 364 |
2B12-313 |
6319/4336 |
Benefits of Air Springs
| 1 | Eliminate squats |
| 2 | Reduce Braking and Poor Steering |
| 3 | Eliminate rough rides |
| 4 | Eliminate Poor Headlight Aiming |
| We proudly offer the highest quality replacement air springs that exceed OEM requirements. | |

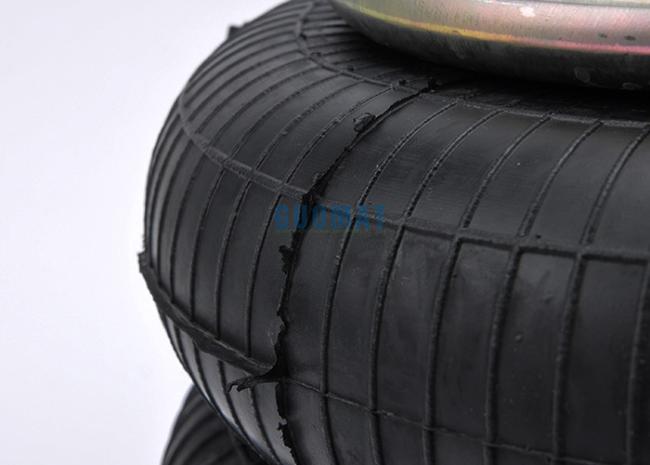

The Real Pictures
