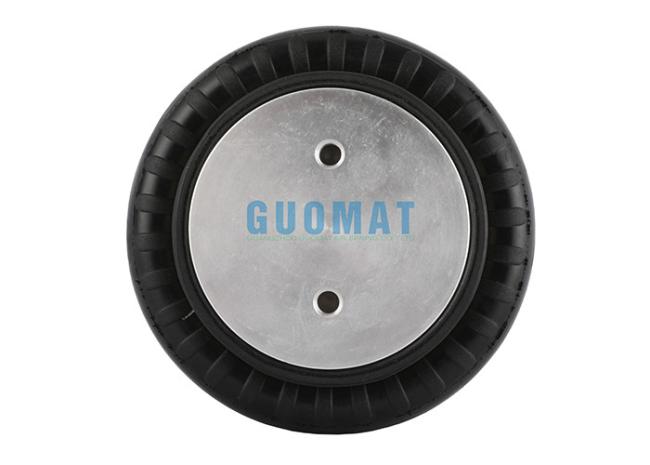

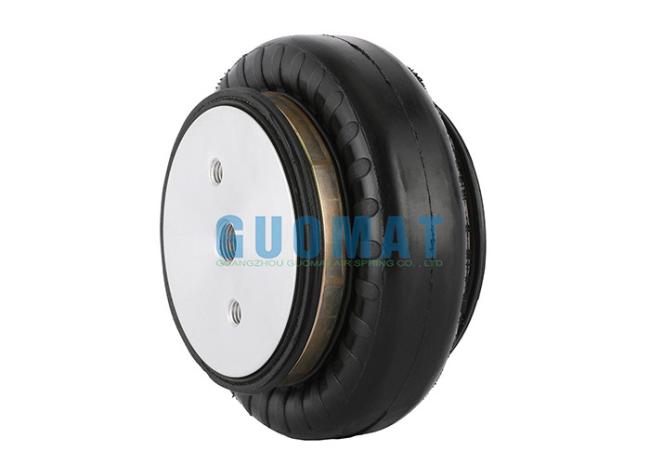

1K130070 Single Convoluted Type Air Spring Replace 1B5-550 Goodyear Industrial Rubber Air Bag


Product Description

GUOMAT No.: 1K130070

GUOMAT No.: 1K 130070

Goodyear No.: 1B5-550

Goodyear No.: 1B 5-550

1B5-550 Rubber Air Bag Technical Data

Material: High Quality Rubber

Cover Plate Material: Aluminum

Net Weight: 0.85 KG

Port Size: G1/4

Cylinder Type: Standard

Number of Convolutions: Single

MAX Diameter: 145 MM

Stroke Length: 50 MM

Maximum Working Pressure (Bar): 8

Maximum Ambient Temperature (°C): 70 ℃

Minimum Ambient Temperature (°C): -40℃

GUOMAT 1K130070 Air Isolation

It is use in a wide variety of actuation and vibration isolation.
With time-tested designs incorporating fabric-reinforced or natural rubber flex-member construction and corrosion-protected and retainers, Air Springs provide superior quality and performance.
As an actuator, Air Springs can provide either linear or angular motion.
These air springs offer a favorable stroke-to-compressed-height ratio when compared to air cylinders, and can accept a wide variety of actuation media such as air, water, nitrogen or anti-freeze.

Single Convoluted Bellows Type

Installation and Operating Instructions

1. Provide stroke limitations

to prevent exceeding the maximum allowable stroke height.

2. Provide stops for minimal height

or use Air Spring with,potional Internal Bumper.

3.Max.allowable pressure:100 psi(7bar).

4.Never use Air Spring in torsion.

GUOMAT 1K130070 Air Bags Cross Goodyear 1B5-550
