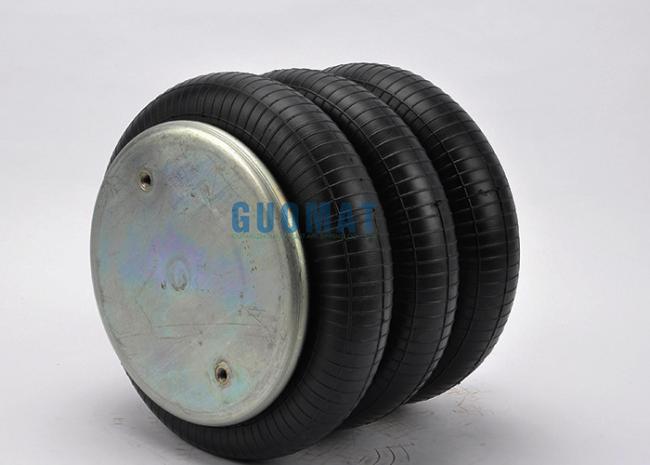

Natural Rubber Air Spring Replace Firestone W01-358-8027 Goodyear 3B12-310 Triple Convoluted Air Bag
Natural Rubber Air Spring Replace Firestone W01-358-8027 Goodyear 3B12-310 Triple Convoluted Air Bag
Product Description
|
Cross Reference Number |
|||
|
Firestone |
W01-358-8027 |
Firestone |
W01 358 8027 |
|
Firestone |
W013588027 |
Firestone |
W01-358-8038 |
|
Firestone |
W013588038 |
Firestone |
W01 358 8038 |
|
Firestone |
W01-358-8029 |
Firestone |
W013588029 |
|
Firestone |
W01 358 8029 |
Contitech |
FT330-29 466 |
|
Contitech |
FT 330-29 466 |
Goodyear |
3B12-310 |
|
Goodyear |
3B 12-310 |
Goodyear |
3B12 310 |
|
Goodyear |
578933100 |
Goodyear |
578-933-1-00 |
|
Triangle |
6334 |
Triangle |
4466 |
Arvin Meritor (Air Spring) 200117
Suspension (Air Spring) 200117
Silent Drive (Air Spring)
Histeer (Air Spring)
W01-358-8027 Firestone Air Bellow Technical Data
|
Technical Data |
Top Cover Plate Diameter:231mm |
| Bottom Cover Plate Diameter:231mm | |
| Combo Stud: 1/4NPT ; 3/4-16UNC | |
| Bolt/Stud: 1/2-13UNC | |
| Rubber Bellows MAX Diameter:330mm | |
| The Working Stroke:MAX 460 mm to MIN 117 mm | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Screw Center Distance of Top Cover Plate:157mm | |
| Screw Center Distance of Bottom Cover Plate:157mm |
Characteristics of Air Springs
- Requires little maintenance
- Quality Assurance Stress Testing
- Excellent shock absorption
- Replace damaged OEM airbags
- Increase the life of industrial equipment
Goodyear Air Speing VS Goodyear Air Bellow
|
Goodyear Number |
Bellow Number |
Goodyear Number |
Bellow Number |
|
2B12-432 |
578923309 |
2B12-427 |
578923309 |
|
2B12-320 |
578923309 |
2B12-311/454 |
578923309 |
|
2B14-356453 |
578923353/1 |
2B12-434 |
578923310 |
|
2B12-345 |
578923315 |
2B12-346/440 |
578923315 |
|
2B12-440 |
578923315 |
2B14-476 |
578923356 |
|
2B14-383 |
578923356 |
2B8-150 |
579923530 |
|
2B8-153 |
579923530 |
2B8-550 |
579923530 |
|
2B8 |
579923530 |
3B12-335 |
578933100 |
|
3B12-304 |
578933100 |
3B12-300 |
578933100 |
|
3B12-301 |
578933100 |
3B12-310 |
578933100 |
|
2B12-313 |
578933350 |
2B12-459 |
578933350 |
