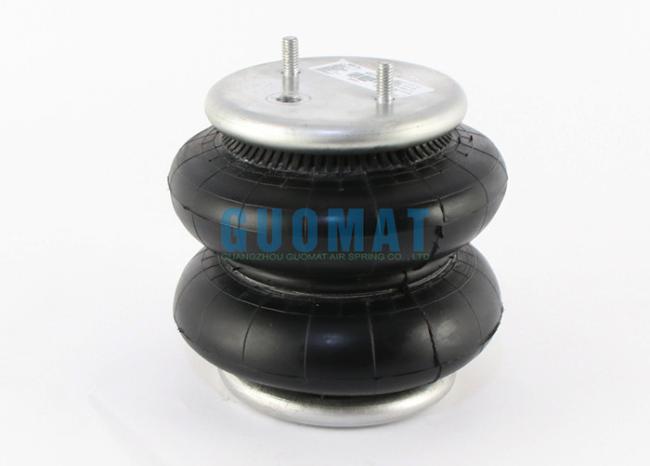

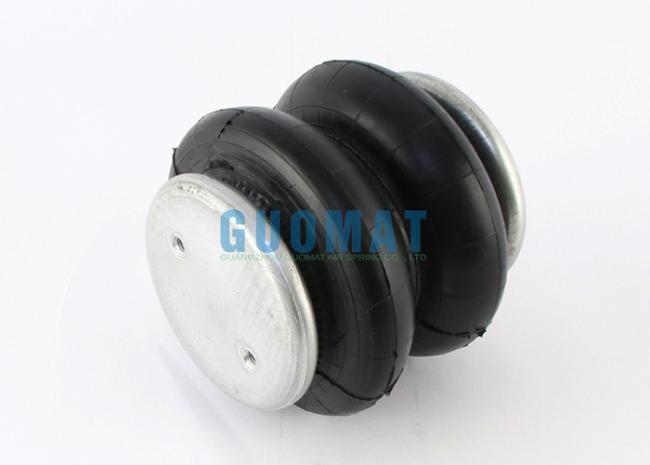

Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Product Description
Product Type: Air Spring,Air Bag
Truck Model: Heavy Duty Truck
Material: Steel + Rubber
Warranty: 12 Months
OEM Reference Number
|
GUOMAT |
2B0335 |
|
Firestone |
A01-760-0335 |
|
Firestone |
A01 760 0335 |
|
Firestone |
A017600335 |
| WATSON & CHALIN | AS-0092 |
| Contitech | FD200-19 510 |
| Contitech | FD 200-19 510 |
GUOMAT 2B0335 Air Spring Technical Data
|
Working temperature |
-40°C bis +70°C |
|
Failure testing |
≥3 millions |
|
Top Cover Plate Diameter |
Ø132mm |
|
Bottom Cover Plate Diameter |
Ø132mm |
|
Gas Hole / Air inlet |
3/8NPT |
|
Rubber Bellows MAX Diameter |
Ø203mm |
|
The Working Stroke |
MAX 1230 mm to MIN 75 mm |
|
Top Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Bottom Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Screw Center Distance of Top Cover Plate |
Ø70mm |
|
Distance Between Screw and Air Hole |
Ø33mm |
|
Screw Center Distance of Bottom Cover Plate |
Ø70mm |
Our Advantage
1. Wide product range (truck, bus, truck seat, industrial equipment and car suspension)
2. Accept sample order, we can also make air spring according to drawing
3. Affordable, safe and efficient logistics services
4. Flexible payment methods
5. One year guaranteed warranty
GUOMAT Double Convoluted Rubber Air Spring
| GUOMAT No | Outer Diameter (mm) | Max.Height (mm) | Min.Height (mm) | Firestone No. |
| 2B6926 | Max.251 | 260 | 75 | W01-358-6926 |
| 2B6884 | Max.251 | 274 | 81 | W01-358-6884 |
| 2B6890 | Max.251 | 274 | 81 | W01358-6890 |
| 2B5243 | Max.251 | 274 | 95 | W01-358-6897 |
| 2B6900 | Max.251 | 260 | 75 | W01-358-6900 |
| 2B6902 | Max.251 | 274 | 95 | W01-358-6902 |
| 2B6905 | Max.251.5 | 274 | 95 | W01-358-6905 |
| 2B6908 | Max.251 | 274 | 81 | W01-358-6908 |
| 2B6910 | Max.251 | 260 | 75 | W01-358-6910 |
| 2B6926 | Max.251 | 274 | 95 | W01-358-6926 |
| 2B6932 | Max.251 | 274 | 95 | W01-358-6932 |
| 2B6935 | Max.251 | 274 | 95 | W01-358-6935 |
| 2B6940 | Max.251 | 274 | 81 | W01-358-6940 |
| 2B6941 | Max.251 | 274 | 81 | W01-358-6941 |
| 2B6949 | Max.251 | 274 | 95 | W01-358-6949 |
| 2B7788 | Max.251.5 | 274 | 95 | W01-358-7788 |
| 2B7795 | Max.251 | 274 | 81 | W01-358-7795 |
| 2B7892 | Max.251 | 274 | 81 | W01-358-7892 |
