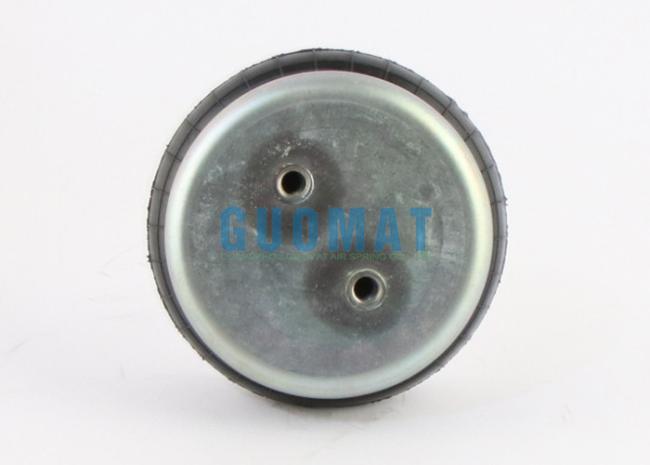

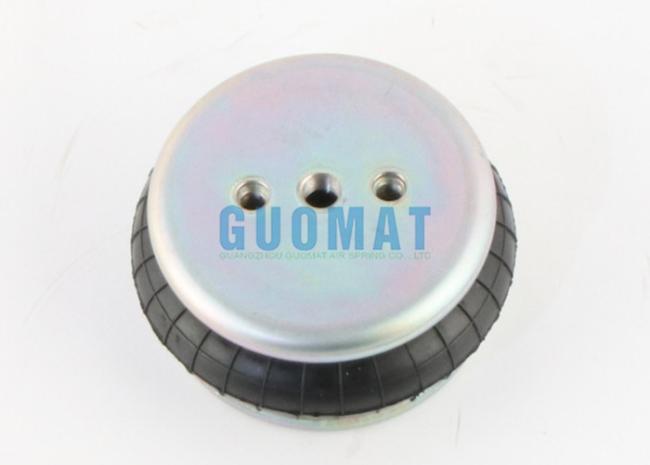

W01-358-7731 Firestone Style 131 Industrial Air Spring Steel Single Convoluted Air Bag
Steel Single Convoluted Air Bag W01-358-7731 Firestone Style 131 Industrial Air Spring Factory
Product Description
|
Item |
Industrial Air Spring |
GUOMAT NO. |
1B7731 |
|
Material |
Natural Rubber+High Quality Steel |
Warranty |
12 Months |
|
MOQ |
10 Pieces |
Color |
Black |
|
Package |
Carton |
Air Fitting |
Cover Center |
The Following are Compatible Numbers
Cross Firestone Part Number: W013587731
Cross Firestone Part Number: WO13587731
Cross Firestone Part Number: W01 358 7731
Cross Firestone Part Number: WO 1358 7731
Cross Firestone Part Number: W01-358-7731
Cross Firestone Part Number: WO1-358-7731
GUOMAT 1B7731 Technical Data
OEM Number: W01-358-7731
Working Temperature: -40°C bis +70°C
Failure Testing: ≥3 millions
Gas Hole / Air Inlet: 1/4NPTF
Top Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC
Top Cover Plate Diameter: 115mm
Bottom Cover Plate Diameter: 115mm
Screw Center Distance of Top Cover Plate: 44.5mm
Screw Center Distance of Bottom Cover Plate: 44.5mm
The Rubber Bellow Max. Diameter: 165mm
The Working Stroke: Max 115mm-Min.50mm
The Maximum Height: 115mm
The Minimum Height: 50mm
Compression Height : 65mm
131 Style Firestone Air Spring
W01-358-7742 ; W013587742 ; W01 358 7742
W01-358-0127 ; W013580127 ; W01 358 0127
W01-358-7729 ; W013587729 ; W01 358 7729
W01-358-0131 ; W013580131 ; W01 358 0131
Firestone Force Table
|
Assembly Height (in.) |
4.0 |
3.0 |
2.0 |
|
|
Volume @ 100 PSIG (in3) |
56 |
39 |
20 |
|
|
Pounds Force |
@20 PSIG |
160 |
310 |
390 |
|
@40 PSIG |
400 |
640 |
790 |
|
|
@60 PSIG |
650 |
990 |
1200 |
|
|
@80 PSIG |
910 |
1350 |
1600 |
|
|
@100 PSIG |
1210 |
1730 |
2050 |
|
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
