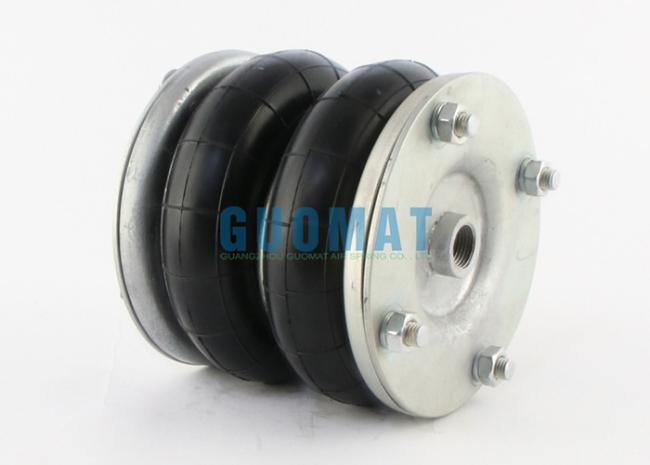

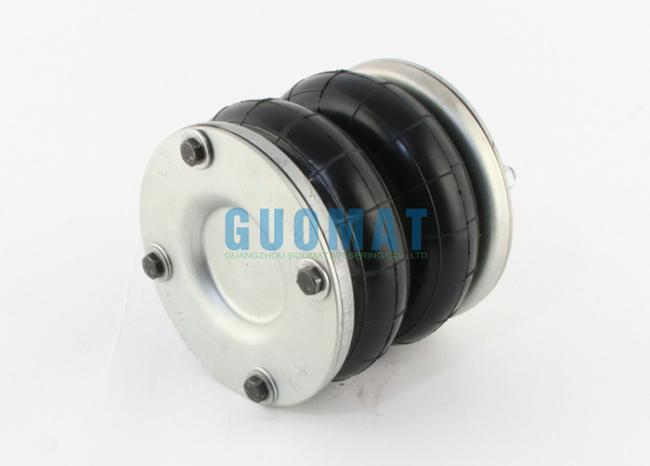

DB06219 DUNLOP Industrial Rubber Air Spring G1/2 For Paper Machine Equipment Actuators


Product Description

Cross Reference Number

DUNLOP Part Number: DB06219

DUNLOP Part Number: DB 06219

DUNLOP Part Number: 6X2

DUNLOP Part Number: 6''X2

Air Spring Technical Parameters

Rubber Bellows Diameter: 152mm

Air Fitting: G1/2

Top plate 4pcs × M10 Bolts

Bottom plate 4pcs × M8 Nuts

Natural Height: 124mm

Girdle hoop: one piece

GUOMAT Air Spring Features

1. Imported rubber: combined with advanced sol technology. It has the characteristics of durability, heat resistance and aging resistance
2. Integrated casting process: adopting integrated casting process, durable, airtight, leak-proof and explosion-proof
3. Easy installation: the overall dimensions are consistent with the original model, directly replace the original air spring, easy to install
4. Made of high-quality steel: Made of high-quality steel, it is resistant to breakage and has a long service life​

Flange Air Spring Installation

1. The piston rod of the gas spring must be installed in a downward position, not inverted, which can reduce friction and ensure the best damping quality and cushioning performance.

2. Determining the installation position of the fulcrum is the guarantee of whether the gas spring can work correctly. The gas spring must be installed in the correct way, that is, when it is closed, let it move across the center line of the structure, otherwise, the gas spring will often automatically push the door open.

3. The gas spring should not be subjected to oblique force or lateral force during work. Not to be used as a handrail.

4. In order to ensure the reliability of the seal, the surface of the piston rod must not be damaged, and paint and chemicals are strictly prohibited on the piston rod. It is also not allowed to spray and paint the gas spring after it is installed in the desired position.

5. The gas spring is a high-pressure product, and it is strictly forbidden to dissect, roast or smash it at will.

6. The piston rod of the gas spring is strictly prohibited from rotating to the left. If you need to adjust the direction of the joint, you can only turn it to the right.

7. Operating ambient temperature: -35°C-+70°C. (specific production 80°C)

8. When installing the connection point, it should rotate flexibly without jamming.

9. The size selection should be reasonable, the force should be appropriate, and the stroke size of the piston rod should have a margin of 8 mm.
