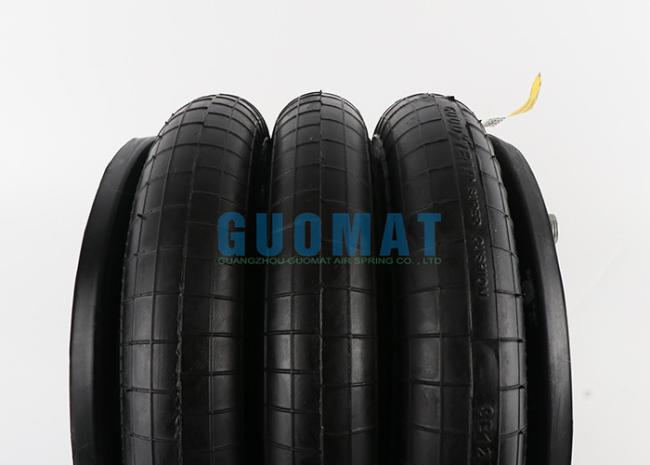

3B12-300 Rubber Industrial Goodyear Air Spring 578-93-3-100 Triple Convoluted Air Bellow

3B12-300 Rubber Industrial Goodyear Air Spring 578-93-3-100 Triple Convoluted Air Bellow


Product Description

3B12-300 Goodyear Air Spring. Super-Cushion ® air springs bring new heights of productivity and service life to your trucks, trailers and buses.

Item: Industrial Air Spring

Manufacturer: GOODYEAR

Origin: Mexico

Model Number: 3B12-300

                          3B 12-300

                          3B 12300

Bellows Number: 578-93-3-100

                            578933100

                            578 93 3 100

Cross Reference Number

AUTOMANN ABSP3B22R-8008

AUTOMANN ABSP3B22R-8025

CONTITECH 64562

CONTITECH FD330-29 431

CONTITECH FD 330-29 431

CONTITECH FD330 29 431

CONTITECH FD 330 29 431

DAYTON 354-8008

FIRESTONE 8008

FIRESTONE 8025

FIRESTONE W013588008

FIRESTONE W013588025

FIRESTONE W01 358 8008

FIRESTONE W01 358 8025

FIRESTONE W01-358-8008

FIRESTONE W01-358-8025

FIRESTONE WO13588008

FIRESTONE WO13588025

FIRESTONE WO1 358 8008

FIRESTONE WO1 358 8025

FIRESTONE WO1-358-8008

FIRESTONE WO1-358-8025

HENDRICKSON B-11637

LOAD GUARD SC2130

RIDEWELL 1003588008C

TRIANGLE 4431

TRIANGLE 4469

TRP AS80080

WATSON&CHALIN AS-0019

3B12-300 Convoluted Air Bag Technical Data

Top Cover Plate Diameter: 9.00

Bottom Cover Plate Diameter: 9.00

Tapped Hole on Top Retainers: 3/8-16

On Pistons: 1/2-13

Air Fitting: 1/4 NPTF

Distance Between Tapped Hole and Air Hole: 5.50

Distance Between Tapped Holes: 6.20

The Stroke: 18.0-5.1

Goodyear Triple Air Spring Bellows
