2S2500F Rubber Suspension Air Spring Universal Flange Air Bag 205mm Height
2S2500F Universal Flange Air Bag 205mm Height Rubber Air Suspension Spring
Product Description
|
Item |
Value |
|
Part No. |
2S2500F |
|
Type |
Suspension Air Spring |
|
Warranty |
12 Months |
|
Color |
Black |
|
Place of Origin |
Guangzhou,China |
|
Certification |
ISO/TS16949:2009 |
|
Material |
Rubber |
|
Packing |
Neutral Packing |
|
MOQ |
10 Pcs |
|
Quality |
High-Quality |
|
Position |
Auto/Truck parts |
|
Application |
Auto Suspension Systems |
Technical Data
Flange: With Open Flange
Top Cover Plate Diameter: Ø134mm
Threaded Hole on Top Cover Plate: 6PCS X1/4''
Distance Between Threaded Holes: Ø114.5mm
Bottom Cover Plate Diameter: Ø134mm
Threaded Hole on Bottom Cover Plate: 6PCS X1/4''
Natural Height: 205mm
Nominal Diameter:Ø 80mm
Flange Thickness: 15mm
Air Suspension
The suspension is the link between the road and the car body. The job of the suspension is to reduce, as far as possible in a controlled fashion, the vibrations from the wheel and the car body caused by an uneven road or changes of direction. Every attempt must be made to prevent these vibrations from being transmitted to the car body in order to reduce rocking, pitching and diving, avoid swaying, and ensure optimum road contact and traction with minimum slip. air shock absorber replace the original air strut of your vehicle and offer you maximum ride comfort with high durability. Security, accuracy and quality of the product match the original part.
Frequently Asked Questions
|
1 |
Q: What is your warranty period? |
|
|
1 year. If there is any quality problem during the warranty period, you can contact us, we will solve it for you in time |
|
2 |
Q: How do you ensure the quality? |
|
|
We test for aging, hardness, flex, tension, viscosity, rheology, water check, rupture, fatigue and more. |
|
3 |
Q: Can you develop new items based on my samples? |
|
|
We have a professional R&D team and can produce according to samples or drawings. |
|
4 |
Q: Can you print my LOGO? |
|
|
Yes, as long as you provide a trademark authorization letter, we can print your brand on the product |
|
5 |
Q: Can you change the air hole or blind nut specification according to my request |
|
|
Yes. All sizes are available to suit the standards of different countries. |

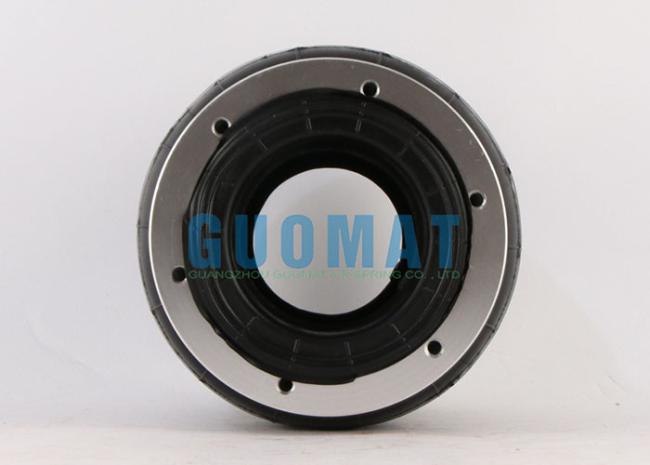

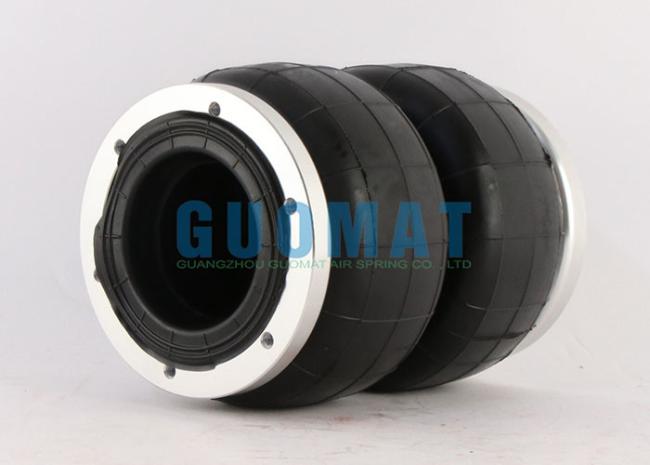

The Real Pictures of 2S2500F Suspension Air Spring
