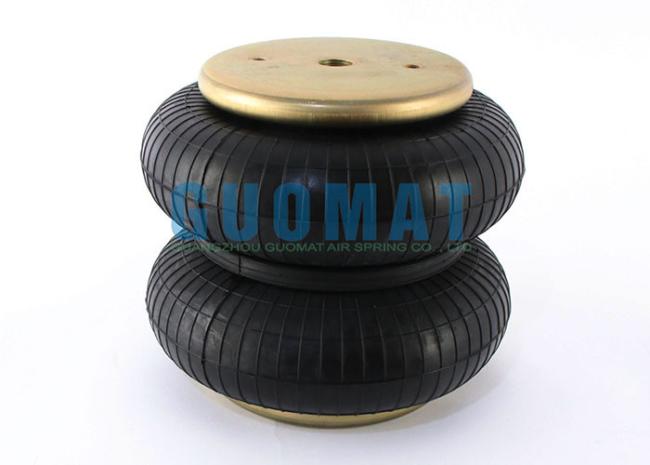

W01-358-7025 Firestone Double Convoluted Air Spring 65-175mm Stroke Industrial Air Spring Supplier


Product Description

Item: Rubber Industrial Air Spring

Model Number: 2B7025

Brand: GUOMAT/Neutral

Material: Rubber+Steel

Spring Warranty: 12 Months

Firestone: 7025

Firestone: W01-358-7025

Firestone: W01 358 7025

Firestone: W013587025

Firestone: WO1-358-7025

Firestone: WO1 358 7025

Firestone: WO13587025

Firestone Industial Air Spring Technical Data

Top Plate Diameter: 111mm

Air Fitting: 1/4-18NPTF

Threaded Hole on the Top Plate: 2X3/8-16UNC

Distance Between Threaded Holes on Top Plate: 44mm

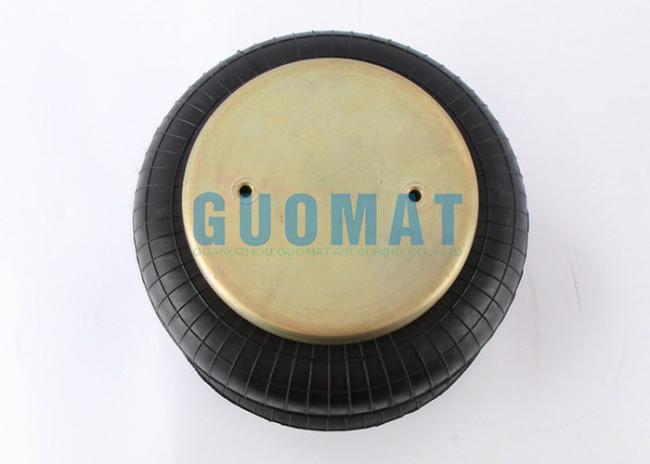

Bottom Plate Diameter: 111mm

Threaded Hole on the Bottom Plate: 2X3/8-16UNC

Distance Between Threaded Holes on Bottom Plate: 44mm

Rubber Bellow Natural Diameter: 146mm

Rubber Bellow Max. Diameter: 165mm

Max. Height: 175mm

Min.Height: 65mm

Style 25 Firestone Airstroke

Air Spring Applied to Die Stripper
It is possible to use an air spring as part of a die stripper system. The air spring is typically used to provide the necessary force to hold the material in place while it is being stamped or formed. When the stamping operation is complete, the air pressure is released and the spring returns to its original position, allowing the stamped material to be removed from the die.

Air springs are a popular choice for die stripper systems because they offer several advantages over other types of springs. They provide a high force-to-size ratio, meaning that they can provide a lot of force in a relatively small package. They also offer a consistent force over a broad range of deflection, which makes them well-suited for use in stamping applications.

Other types of springs that are commonly used in die strippers include coil springs, urethane springs, and nitrogen gas springs. The choice of spring will depend on several factors, including the size and complexity of the die, the material being stamped, and the required force and deflection characteristics.

If you are considering using an air spring as part of a die stripper system, it is important to work with an experienced designer to select the appropriate spring and to ensure that the system is properly designed for your specific application.
