Triple Convoluted Air Spring 3S120-17F Air Ride Suspension Kit For Vehicle Shock Absorber

Triple Convoluted Air Spring 3S120-17F Air Ride Suspension Kit For Vehicle Shock Absorber

What is an Air Spring for Modified Cars?
An air spring for modified cars is a type of air suspension system that can be installed to modify the vehicle's suspension. Air springs use compressed air in a flexible container to store and release energy, providing a more comfortable ride and better handling. Modified car enthusiasts often install air spring kits to lower the car's ride height, improve its stance, or adjust the suspension for different road conditions. Air springs are also used in commercial vehicles and heavy-duty trucks to improve the ride quality and load-bearing capacity.

Cross Reference Number
3S120-17F
3S 120-17F
3S120 17F
3S 120 17F

Item Name: Suspension Air Spring
Application: For Vehicle Air Suspension
Material: Rubber+Aluminum Alloy
Factory Warranty: 1 Year
MOQ: 10 Pieces
Sample: Available
Delivery Time: 3-7 days after payment
Payment Terms: T/T,Western Union,PayPal,L/C
Packaging: Standard packaging and accept customer's special packaging demand.

3S120-17F Suspension Air Spring Technical Data
Flange: With Open Flange
Flange Diameter: Ø157mm/6.18
The Thickness of the Flange: Ø15mm/0.59
Threaded Hole: 6X1/4''
Distance Between Threaded Holes: Ø137.5mm/5.41
Rubber Bellow Diameter: Ø177mm/6.97
Height: 250mm/9.84
Bummper/Bumper block: Without
Girdle hoop/Ring: 2

Advantages of GUOMAT


What about Our Package & Shipping Terms?


How to Choose the Right Air Spring
Choosing the right air spring depends on several factors such as the weight of your vehicle, the type of suspension system you have, and your budget. Generally, you want to choose an air spring that can handle the weight of your vehicle and provide the appropriate amount of support for your suspension system.

You should also consider the type of air spring you want to install. Sleeve-type air springs usually have more travel and softer spring rates, which are more appropriate for solid rear-axle suspensions. On the other hand, convoluted air springs have a larger load capacity and can be used for both solid rear axles and independent suspensions.

It is important to choose a high-quality air spring kit that is compatible with your vehicle and can provide the support and ride quality you need. Consider factors such as durability, ease of installation, and any additional features that may be included with the kit.

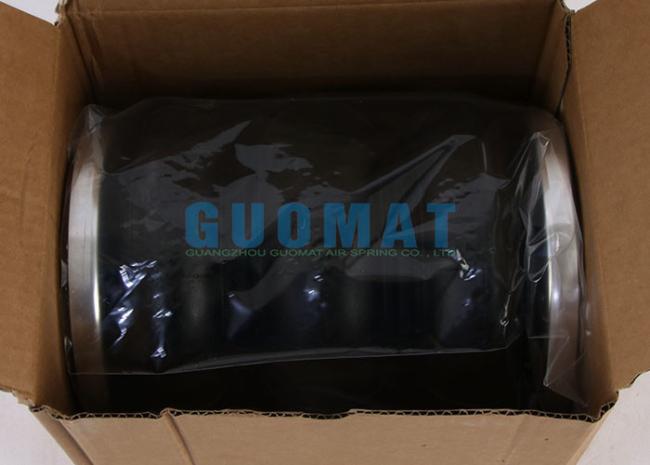

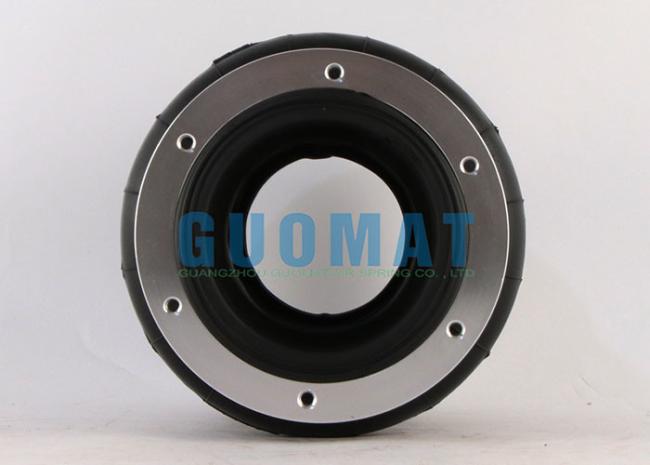

3S120-17F Triple Convoluted Rubber Air Suspension Spring Real Pictures
