1S4-007 Goodyear Sleeve Air Spring W02-358-7001 Firestone Cab Air Shock Absorber
1S4-007 Goodyear Sleeve Air Spring W02-358-7001 Firestone Cab Air Shock Absorber
Product Description
|
Brand |
Goodyear |
OEM |
1S4-007 |
|
Material |
Rubber/Steel |
Position |
Seat |
|
Warranty |
12 Months |
Color |
Black |
|
Spring Weight |
0.675KG |
Packing Size |
51*31*18.5(cm) |
OEM Cross Reference Number
CONTITECH Part Number: 67770
CONTITECH Part Number: SC29-0001
CONTITECH Part Number: SC29 0001
FIRESTONE Part Number: 7001
FIRESTONE Part Number: W023587001
FIRESTONE Part Number: W02 358 7001
FIRESTONE Part Number: W02-358-7001
FIRESTONE Part Number: 7002
FIRESTONE Part Number: W023587002
FIRESTONE Part Number: W02 358 7002
FIRESTONE Part Number: W02-358-7002
FIRESTONE Part Number: 7031
FIRESTONE Part Number: W023587031
FIRESTONE Part Number: W02 358 7031
FIRESTONE Part Number: W02-358-7031
FLXIBLE Part Number: 97-9999-01867
FLXIBLE Part Number: 97 9999 01867
LINK CAB&SEAT SPRING: 1101-0020
LINK CAB&SEAT SPRING: 1101 0020
LINK CAB&SEAT SPRING: 1102-0023
LINK CAB&SEAT SPRING: 1102 0023
Mac-k truck TRUCK Part Number: 227QS33
Technical Data
Top Diameter: 2.65
Topped Hole on Top: 3/8-16
Bottom Diameter: 2.87
Comblination Stud Air Fitting: 750-16UNF-2A Outside
125-27 NPTF Inside
Min.Height: 2.2
Max.Height: 7.1
The Role of Cab Air Springs
Cab air springs are a type of air suspension used in the suspension system of commercial vehicles such as trucks and buses. They are designed to provide cushioning and support to the cab of the vehicle, reducing vibrations and shock from the road surface. Cab air springs are cylindrical in shape, and contain a column of compressed air that supports the weight of the cab. They are typically made from materials such as rubber and steel and can be replaced if they become worn or damaged.
The primary function of cab air springs is to provide a comfortable ride for the driver and passengers of the commercial vehicle. They reduce the amount of stress and fatigue felt by drivers, allowing them to remain focused and alert for longer periods of time. Cab air springs also help to protect the cab from damage caused by rough roads, and can extend the life of the suspension system overall.
In summary, the role of cab air springs is to provide cushioning and support to the cab of commercial vehicles, reducing vibrations and shock from the road surface and providing a comfortable ride for the driver and passengers.
Goodyear Sleeve Style Air Spring
|
Part Number |
Part Number |
Part Number |
|
1S3-011 |
1S3-013 |
1S4-007 |
|
1S4-008 |
1S4-016 |
1S4-030 |
|
1S4-035 |
1S4-042 |
1S4-044 |
|
1S4-056 |
1S4-058 |
1S4-067 |
|
1S4-074 |
1S4-123 |
1S4-175 |
|
1S4-187 |
1S4-234 |
1S4-235 |
|
1S4.5-073 |
1S4.5-107 |
1S4.5-113 |
|
1S4.5-121 |
1S4.5-179 |
1S5-005 |
|
1S5-038 |
1S5-040 |
1S5-045 |
|
1S5-055 |
1S5-057 |
1S5-060 |
|
1S5-061 |
1S5-070 |
1S5-072 |
|
1S5-120 |
1S5-122 |
1S5-133 |

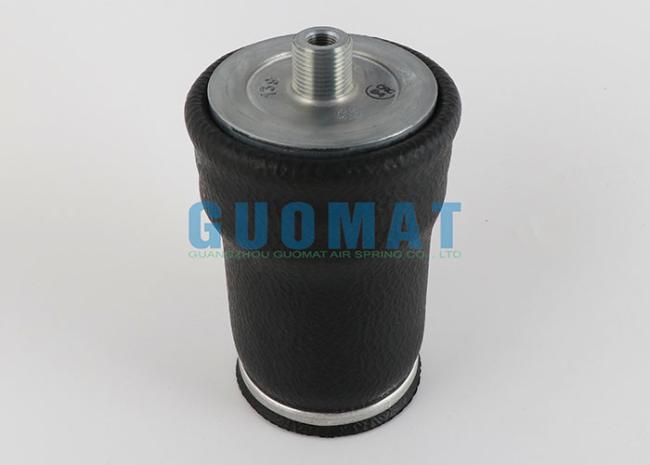

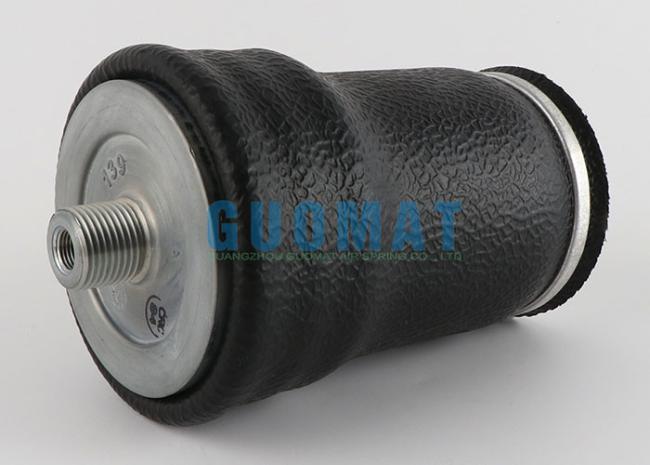

The Real Pictures
