Goodyear Super Cushion Air Spring 1B14-371 Single Convoluted Rubber Bellows 578-91-3-352


Product Description

Original Manufacturer: GOODYEAR

Country of Origin: Mexico

Cross Reference Number

Contitech Part Number: FS530-11

Contitech Part Number: FS 530-11

Contitech Part Number: FS530-11 CI G3/4

Contitech Part Number: FS 530-11 CI G3/4

Firestone Part Number: W01M586100

Firestone Part Number: W01-M58-6100

Firestone Part Number: W01 M58 6100

Firestone Part Number: WO1M586100

Firestone Part Number: WO1-M58-6100

Firestone Part Number: WO1 M58 6100

1B14-371 Goodyear Air Spring Technical Data

Top Cover Plate Diameter: 289mm

Air Fitting: G3/4

Distance Between Air Fitting and Threaded Hole: 79.4mm

The Distance Between the Threaded Holes: 158.8mm

Bottom Cover Plate Diameter: 289mm

The Distance Between the Threaded Holes: 158.8mm

The Rubber Bellow Max.Diameter: 406mm

The Rubber Bellow Natural Diameter: 380mm

Rubber Bellows Natural Height : 120 mm

The Working Stroke : MAX 160 mm to MIN 81 mm

Bumper Block: Without Bumper Block

Girdle Ring/Girdle Hoop: With Girdle Hoop :Without Girdle Hoop

Application of Air Spring in Papermaking Equipment
Air springs can be used in papermaking equipment to support and control the movement of the heavy paper rolls. These air springs are also known as pneumatic springs and work by using compressed air to provide a cushioning effect, reducing shock and vibration from the paper rolling process. By using air springs, paper manufacturers can improve the quality of their products and increase production efficiency. Additionally, they may help reduce maintenance costs, as they require less maintenance compared to traditional mechanical springs. Air springs are also used in other applications such as vehicle suspension systems and industrial machinery.

Goodyear Single Concoluted Air Spring

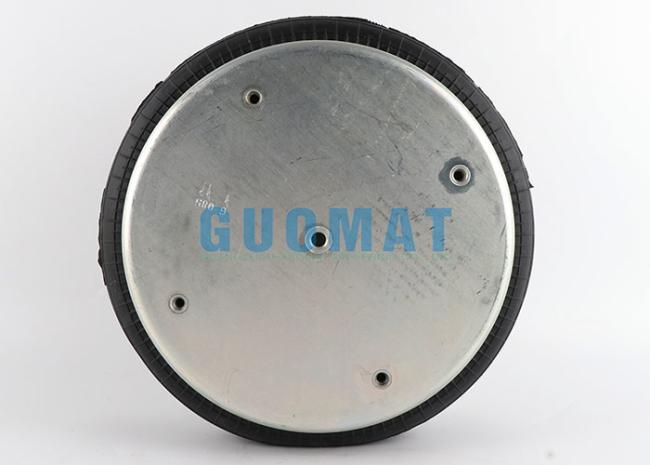

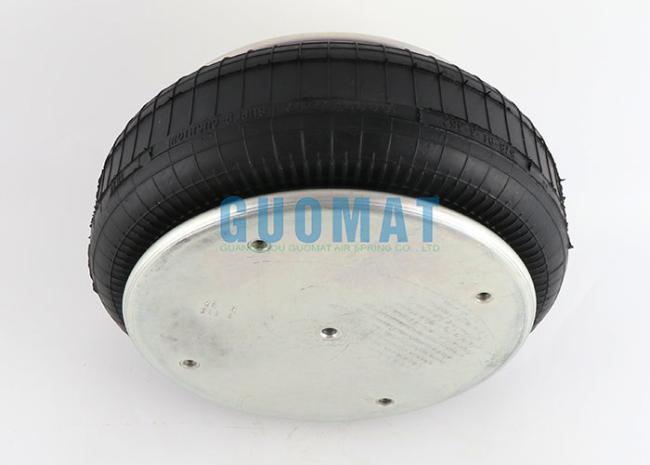

The Real Pictures
