Product Description
Product: Goodyear Sleeve Air Bags
For Car: Cab Seats for General Trucks
Goodyear: 1S6-641
Bellow Type: Sleeve
Number of Top Plate Hole/Stu: 1
Top Diameter: 3.15
Number od Bottom Plate Hole/Stud: 1
Bottom Diameter: 3.89
Bottom Plate Alignment: Parallel
Bumper: Without
Min Height: 4.1
Max Height: 10.88
OEM Reference Number
Goodyear Number: 1S6-641
Goodyear Number: 1S6 641
Goodyear Number: 1S 6-641
Goodyear Number: 1S 6 641
Goodyear Bellow Number: 579120641
Goodyear Bellow Number: 579-120-641
Goodyear Bellow Number: 579 120 641
Goodyear Piston Number: 566087215
Goodyear Piston Number: 566-08-7-215
Goodyear Piston Number: 566 08 7 215
How to Install Truck Seat Air Bag
1. Prepare the necessary tools and equipment, including jack stands, floor jacks, a set of socket wrenches and new cab shock absorbers.
2. Use a socket wrench to remove the old shock absorber.
3. Install the new shock absorbers, making sure they are properly aligned with the mounting brackets.
4. Use a torque wrench to tighten the bolt or nut to the manufacturer's recommended torque specification.
5. Test the shock absorbers by compressing and extending the cab and seeing how the shock absorbers respond.
Shock absorbers are usually replaced in pairs for balance and stability, so it is best to replace both shock absorbers on the same axle at the same time.
Also, be sure to wear safety goggles and follow proper safety precautions when working under a vehicle (such as with a jack stand) to prevent serious injury.
Goodyear Seat Air Bag
|
Part No. |
Top Plate Hole/Stud Qty |
Top Plate Dia. |
Bottom Plate Hole/Stud Qty |
Bottom Plate Dia. |
Min.Height |
Min.Height |
|
1S5-040 |
1 |
2.65 |
1 |
3.25 |
2.25 |
6.25 |
|
1S5-045 |
1 |
2.65 |
1 |
2.875 |
2.25 |
6.25 |
|
1S5-055 |
1 |
2.65 |
1 |
2.12 |
4.0 |
10.0 |
|
1S5-057 |
2 |
2.65 |
1 |
3.25 |
2.2 |
6.25 |
|
1S5-060 |
1 |
2.65 |
1 |
2.12 |
4.0 |
9.5 |
|
1S5-061 |
2 |
2.65 |
1 |
2.12 |
4.0 |
10.5 |
|
1S5-070 |
1 |
2.65 |
2 |
2.12 |
5.5 |
10.0 |
|
1S5-072 |
1 |
2.65 |
1 |
2.12 |
4.0 |
10.5 |
|
1S5-120 |
1 |
2.65 |
1 |
2.12 |
4.0 |
10.5 |
|
1S5-122 |
1 |
3.15 |
1 |
3.53 |
4.0 |
10.5 |
|
1S5-133 |
1 |
2.65 |
1 |
3.25 |
2.2 |
6.25 |
|
1S5-135 |
2 |
2.65 |
1 |
3.25 |
2.2 |
7.2 |
|
1S5-152 |
1 |
2.65 |
1 |
2.12 |
4.0 |
10.5 |
|
1S5-154 |
1 |
2.65 |
1 |
3.53 |
4.1 |
9.5 |
|
1S5-157 |
1 |
2.65 |
1 |
2.88 |
2.2 |
6.8 |
|
1S5-164 |
1 |
2.65 |
1 |
3.25 |
5.4 |
9.8 |

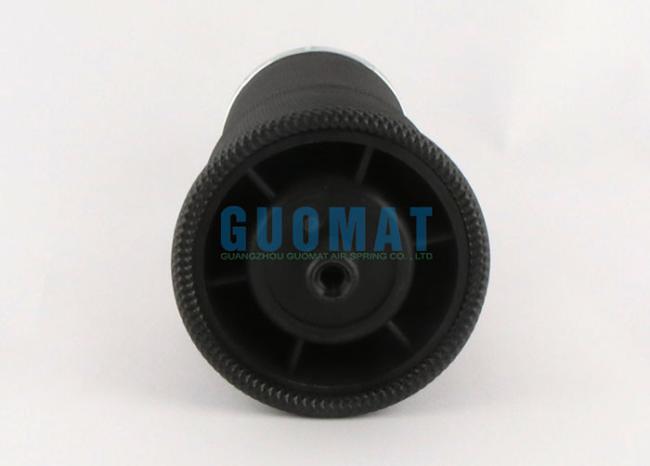

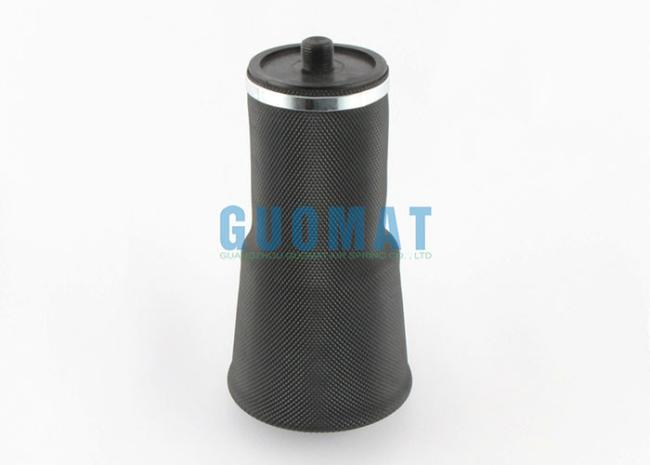

1S6-641 Goodyear Seat Air Bag Pictures
