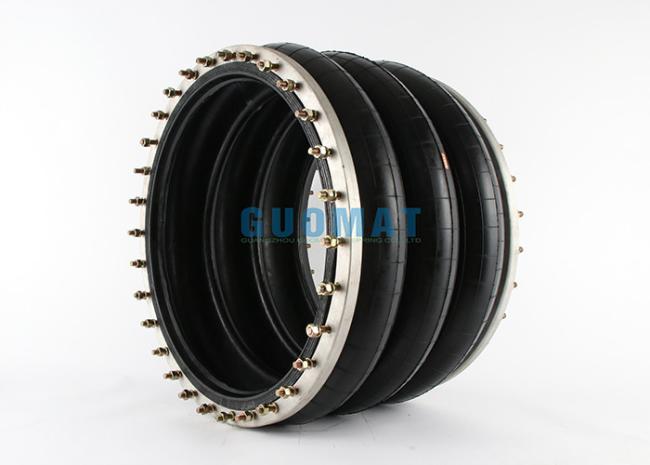

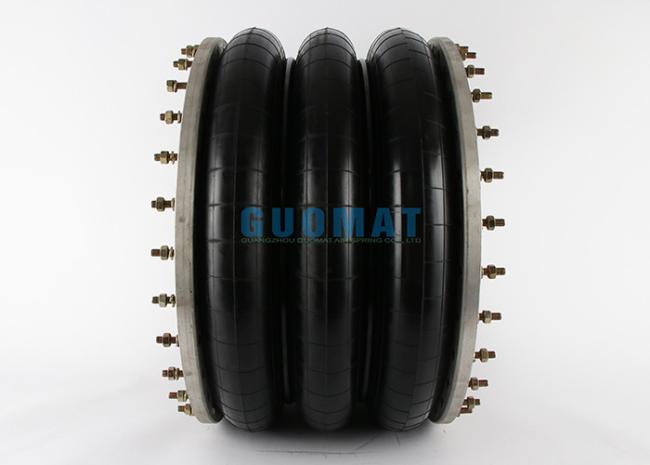

3H630376 GUOMAT Industrial Air Spring Manufacturers 720mm Rubber Bellows Air Bags


Product Description

Item Name: Triple Convoluted Flange Air Bags

Item Number: 3H630376

Material: Rubber,Steel,Aluminum Alloy

Warranty: 12 Months

Pass Through: Ø580mm

Minimal Compression: 122mm

Elongation: 436mm

The Working Stroke: 314mm
Rubber Bellow Diameter : Ø720mm (0.7 Mpa)
Bottom and Top Diameter : Ø642mm
The Screw : M10
Number of Screw : 32 pieces

Reasons to choose GUOMAT
1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.
2. Competitive price.
3. Cars, trucks, buses and industrial air springs are all produced and developed to follow up with customers and meet their different requirements.
4. Fast delivery.
5. With more than ten years of production technology, the products cover the whole world.
6. There are distributors all over the world, responding to customers' requests in the first time.

We also Supply Other Industrial Air Springs with Flanged Connection

Flanged Air Spring?
A flanged air spring is a type of air spring that has a flange on one or both ends of the air spring. The flange is a flat, circular piece of metal that is attached to the air spring and used to secure it to the equipment or vehicle it is installed in. The purpose of the flange is to provide a secure mounting point for the air spring and to help distribute the load evenly across the air spring. Flanged air springs are commonly used in industrial equipment, trucks, trailers, and other applications where a durable and reliable suspension system is required.

3H630376 GUOMAT Industrial Air Spring
