V1E26A Natural Rubber Air Bellow 370mm Bus Air Suspension Spring With Aluminum Cover

Product Description

GUOMAT No.: V1E 26a

Vibracoustic No.: V1E26a

Phoenix No.: 1E26A

Phoenix No.:1 E 26 A

Material: Natural Rubber

Warranty: 12 Months

MOQ: 10 Pieces

Rubber Bellows Height: 370mm

Outer Diameter: 260mm

Nominal Diameter: 178.8mm

Cross Reference / OEM Reference Number

V1E21 ; V1E25(-2) ; V1E32
V1E26 ; V1F21A ; V1F21D
V1F25 ; V1F26B-1 ; V1F32B
V1F21 ; V1F32A ; V1F26
V1F26C ; V1F32 ; V1E18
V1E21D ; V1F14 ; V1F26D
V1F16 ; V1F20A ; V1F21C-2
V2E23 ; V1F21C-5 ; V1E17
V2E18B ; V2E23A ; V1E19
V1E20A ; V1E14 ; V1F20B
V1F20A ; V1E20A ; V1E21E
V2G20 ; V2G20A

Bus Air Spring
A bus air spring is a type of suspension system used in heavy vehicles such as buses and trucks, as well as some passenger cars. Air springs replace traditional steel springs and provide a smoother ride by using compressed air to cushion the vehicle's movement. The air springs are typically made of reinforced rubber and are designed to support high loads while maintaining a level ride height, resulting in improved stability and handling. Additionally, air springs can be adjusted to different pressures to accommodate changes in load, making them suitable for use in vehicles that carry variable loads.

How to Install Bus Air Springs
Installing air springs in a bus requires a few steps and specialized tools. Here are the basic steps to follow:

• First, locate the air springs that need to be replaced and gather the replacement parts.
• Jack up the bus and remove the wheels to access the suspension system.
• Remove the existing air springs by loosening the bolts that hold them in place. Use an air spring replacement tool kit like those offered by ContiTech to help remove and install the air springs.
• Install the new air springs in place of the old ones in the same location and re-attach the bolts that hold them in place.
• Reinstall the wheels and lower the bus to the ground.
• Test the new air springs by driving the bus and checking that they are functioning properly.

It is important to note that the installation process may vary depending on the specific make and model of the bus. Therefore, it is recommended to consult the manufacturer's instructions or seek the help of a professional mechanic to ensure the installation is done correctly.

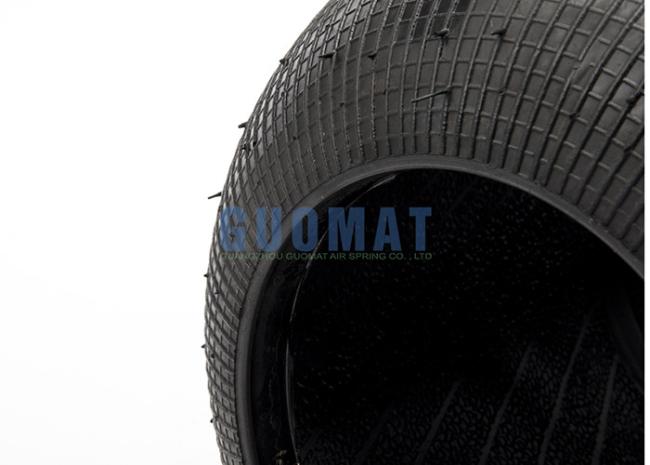

Rubber Bus Air Spring Real Pictures
