FS412-10 Contitech Single Convoluted Industrial Flange Air Spring 1/2in Air Inlet
FS412-10 Contitech Single Convoluted Air Actuators 1/2in Air Inlet Industrial Flange Air Spring
Product Description
Manufacturer: CONTITECH
Manufacturer Number: FS 412-10
Item: Air Spring
Air Inlet: 1/2 in
Bellows Type: Single Convolutd
Weight: 11.9LB
Stroke Length [MAX]: 3.94 in
Compressed Height: 1.97 in
Dody Dia.[MAX]: 12.9 in
Temperature Range [MAX]: 158 °F
Temperature Range [MAX]: -76 °F
Pressure: 120 psi
Contitech FS412-10
Contitech FS 412-10
Contitech FS412-10 DS
Contitech FS 412-10 DS
Cross Reference Number
FIRESTONE W01-R58-4060
FIRESTONE W01R584060
FIRESTONE W01 R58 4060
FIRESTONE WO1-R58-4060
FIRESTONE WO1R584060
FIRESTONE WO1 R58 4060
DUNLOP PNEURIDE 12X1
DUNLOP PNEURIDE 12''X1
DUNLOP SPRINGRIDE SP1540
DUNLOP SPRINGRIDE SP 1540
NORGREN M/31121
NORGREN M31121
NORGREN M 31121
PARKER 9109044
|
Manufacturer |
Cross Reference |
|
Contitech FS412-10 |
Firestone W01-R58-4060 |
|
Contitech FS 412-10 |
Firestone w01-r58-4060 |
|
Contitech FS412-10 DS |
Dunlop 12X1 |
|
Contitech fs412-10 |
Dunlop sp1540 |
|
Contitech fs 412-10 ds |
Norgren m/31121 |
Contitech Industrial Air Spring
|
Model |
Min. Design Height |
Required installation space |
Max. stroke |
|
FS 40-6 CI |
50mm |
160mm |
60mm |
|
FS 50-5 CI |
51mm |
165mm |
44mm |
|
FS 70-7 CI |
51mm |
180mm |
64mm |
|
FS 100-10 CI |
51mm |
225mm |
94mm |
|
FS 120-9 CI |
50mm |
230mm |
85mm |
|
FS 120-10 CI |
51mm |
245mm |
99mm |
|
FS 120-12 CI |
51mm |
250mm |
119mm |
|
FS 200-10 CI |
51mm |
265mm |
89mm |
|
FS 330-11 CI |
51mm |
340mm |
99mm |
|
FS 330-14 CI |
51mm |
360mm |
129mm |
|
FS 530-11 CI |
51mm |
400mm |
124mm |
|
FS 530-14 CI |
51mm |
420mm |
134mm |
|
FS 960-12 CI |
63mm |
480mm |
117mm |
|
FS 1330-11 CI |
63mm |
570mm |
107mm |

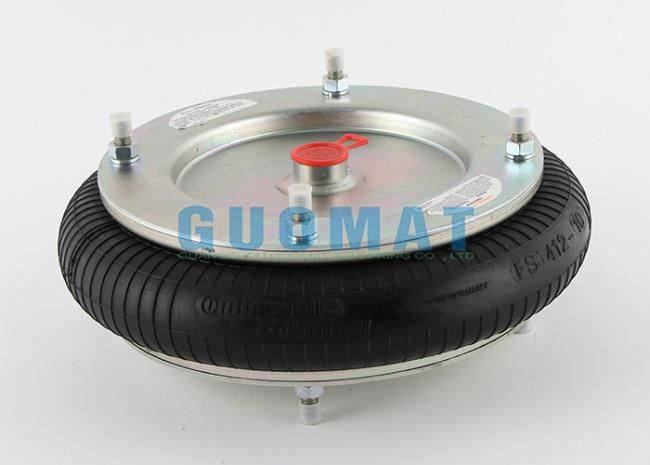

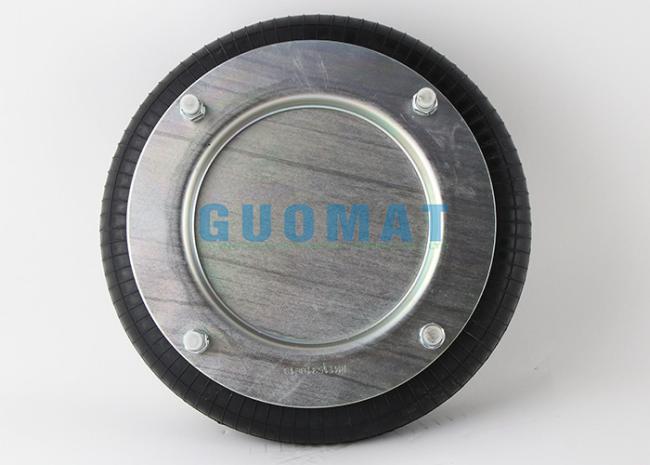

FS412-10 Single Convoluted Industrial Air Spring Real Pictures
