W01-358-9206 Firestone Air Spring 1T19L5 Rolling Lobe Type For Trailer / Semi Trailer
W01-358-9206 Original Firestone Truck Air Spring 1T19L5 Rolling Lobe Type Air Pillow For Trailer/Semi-Trailer
Product Description
Truck air springs are a suspension system that uses rubber air cells to support the weight of a truck. These air springs replace traditional metal springs and shock absorbers to cushion the truck's ride and improve its handling, stability and safety.
|
Brand |
Firestone |
|
Part Number |
W01-358-9206 |
|
Material |
Rubber+Steel |
|
Warranty |
1 Year |
|
Application |
For Heavy Truck, Trailer or Semi-Trailer |
|
MOQ |
1 pc |
Firestone Part Number: 9206
Firestone Part Number: W01-358-9206
Firestone Part Number: W01 358 9206
Firestone Part Number: W013589206
Firestone Part Number: WO1-358-9206
Firestone Part Number: WO1 358 9206
Firestone Part Number: WO13589206
Firestone Bellows Number: 1T19F-5
Firestone Bellows Number: 1T19F5
Firestone Bellows Number: 1T19L-5
Firestone Bellows Number: 1T19L5
Interchanges
Goodyear Part Number: 1R14033
Goodyear Part Number: 1R14041
Goodyear Part Number: 1R14-033
Goodyear Part Number: 1R14-041
Goodyear Part Number: 1R14 033
Goodyear Part Number: 1R14 041
Firestone W01-358-9206 Air Spring Technical Data
Extended Height:17.00
Top Plate Number:3131
Top Plate Width:11.31
Piston Number:9766
Piston Width:11.31
1T19L-5 Firestone Bellows Truck Air Spring
|
Bellows No. |
Part No. |
Stroke(inch) |
Weight |
Cross Reference |
|
1T19L-5 |
W01-358-8088 |
7.30-19.63 |
21.9 |
Ridewell 1003588088C |
|
1T19L-5 |
W01-358-8500 |
7.80-17.00 |
21.0 |
Rowe RV ASC1000/ASC1001 ASC1001/ASC1002/ASC1003 Spartan |
|
1T19L-5 |
W01-358-9200 |
5.70-17.00 |
21.7 |
Hendrickson Trailer S3839 Ridewell 1003589200C MEXICAN DE AUTOBUS FRONT-REAR TAG |
|
1T19L-5 |
W01-358-9204 |
5.50-17.00 |
21.4 |
Ravens Trailer |
|
1T19L-5 |
W01-358-9215 |
5.70-17.00 |
21.7 |
Hendrickson Trailer S3648 |
|
1T19L-5 |
W01-358-9216 |
7.20-19.70 |
22.5 |
City Welding |
|
1T19L-5 |
W01-358-9218 |
5.70-17.00 |
21.4 |
Ridewell 1003589218C Holland(Neway) 90557209 Suspensions Lnc. Watson&Chalin AS-0073 Rowe RV ASC1000/ASC1001 ASC1002/ASC1003 Spartan |
|
1T19L-5 |
W01-358-9277 |
7.30-19.60 |
21.8 |
Ridewell 1003589277C Reyco 24556-01 |
Advantages of Truck Air Springs
Air springs, also known as airbags, offer several advantages for truck suspension systems compared to traditional steel spring suspensions. Here are some advantages of truck air springs:
- Improved ride quality: Air springs provide a smoother ride than traditional steel springs. Air bags are designed to absorb road shocks and vibrations, which reduces the transfer of vibrations and bumps to the truck's cab and occupants.
- Adjustable suspension: Air springs offer adjustable suspension height, which enables drivers to adjust the height of their truck's suspension and improve stability. This can be particularly useful when driving on rough terrain or when hauling heavy loads.
- Better load handling: Air springs are better for handling heavy loads than traditional steel springs. They can be inflated to support the weight of heavy loads, resulting in improved driver control and better handling.
- Increased longevity: Air springs last two to three times longer than traditional steel springs. This is because they are less susceptible to sagging, which can occur over time with steel springs.
- Reduced maintenance: Air springs require less maintenance than traditional steel springs, which reduces maintenance costs. Additionally, air springs don't require frequent lubrication, which can contribute to reduced maintenance time and costs.

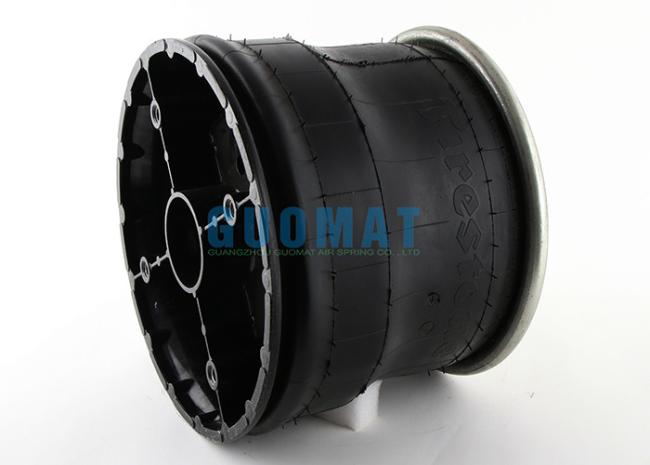

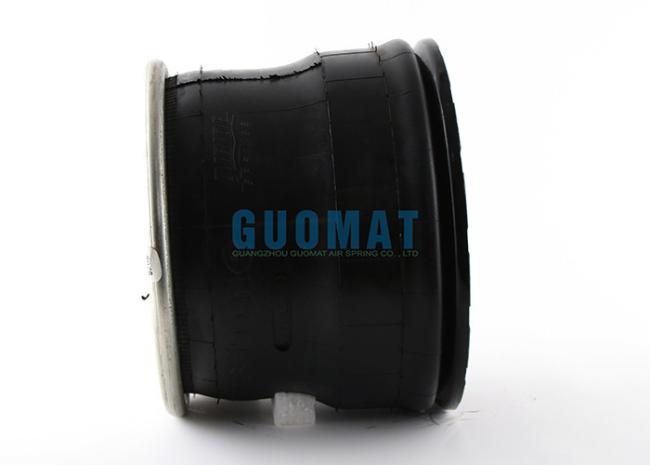

W01-358-9206 Firestone Truck Air Spring Real Pictures
