Natural Rubber LHF250/122-1 Single Convoluted Industrial Air Spring 122mm Height Air Bellow

Product Description


Model Number: LHF250/122-1
Model Number: LHF 250/122-1
Model Number: LHF250122-1
Model Number: LHF250 122-1

Industrial Air Spring Technical Data
Top Diameter: 258mm
Natural Height: 122mm
Max.Height: 143mm
Min.Height: 60mm
Nominal Diameter: 224mm
The Rubber Bellows Diameter: 330mm

Working Principle of Rolled Edge Rubber Air Spring
When the rubber air spring works, the inner cavity is filled with compressed air to form a compressed air column. As the vibration load increases, the height of the spring decreases, the volume of the inner cavity decreases, the stiffness of the spring increases, the effective bearing area of the air column in the inner cavity increases, and the bearing capacity of the spring increases at this time. When the vibration load decreases, the height of the spring increases, the volume of the inner cavity increases, the stiffness of the spring decreases, the effective bearing area of the air column in the inner cavity decreases, and the bearing capacity of the spring decreases at this time. In this way, within the effective stroke of the air spring, the height, inner cavity volume, and bearing capacity of the air spring are smoothly and flexibly transmitted with the increase and decrease of the vibration load, and the amplitude and vibration load are controlled. It is also possible to adjust the stiffness and bearing capacity of the spring by increasing or decreasing the amount of inflation, and an auxiliary air chamber can also be attached to realize self-control adjustment.

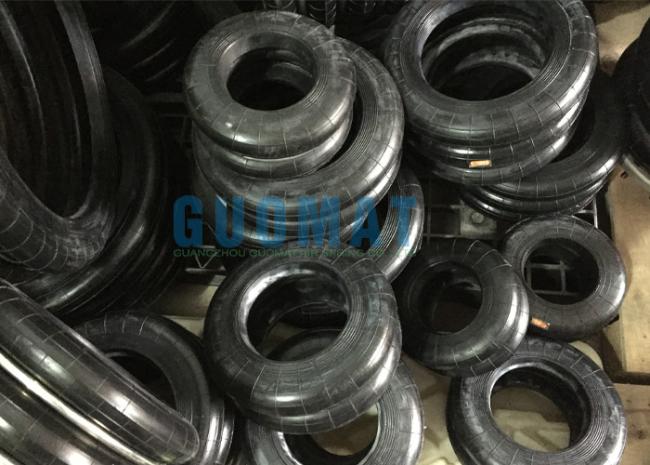

LHF Type Air Spring


How to Store Rubber Air Spring
To store rubber air spring, it is important to keep them in a cool, dry place, away from direct sunlight or sources of heat. You should also make sure the air springs are not exposed to any chemicals or oils that could damage the rubber material. One common method of storage is to seal the air springs in a plastic or rubber bag to protect them from dust and debris. Additionally, it is recommended to periodically check the air pressure and condition of the rubber material to ensure they are still in good working order.

For Industrial Machine Rubber Air Spring Bag
