TS16949 Double Convoluted Air Spring Rubber Air Pillow 205mm Height Suspension Equipment

1702 INTRAK Rubber Air Pillow 205mm Height Suspension Equipment Double Convoluted Air Spring

Product Description

1702 Suspension Air Spring Parameter Data

Diameter Including Base: Ø170 mm
Min. Height: Ø85 mm
Natural Height: Ø145 mm
Max. Height: Ø205 mm
Waist hoop: Ø1 piece
Normal Working Pressure:5-6 atmospheres
Minimum Working Pressure:1 atmosphere
Load Capacity: 1200 kg

Application of Air Spring in Automatic Industrial Washing Machine
At first, the fully automatic washer-extractors were installed on the ground with a fixed connection. Due to the relatively large loading capacity of industrial washing machines, the impact and vibration generated during high-load washing can even damage the ground; the second-generation washer-extractor abandoned The above-mentioned connection method adopts the method of spring plus damper to obtain a good shock-absorbing effect, but because the vibration frequency of the spring itself is relatively high, once it is the same as the frequency generated when the machine is in the middle and high, it will produce a large shock. Resonance, if this resonance cannot be effectively eliminated, a lot of noise and vibration will be generated, which will cause damage to the machine and affect the service life of the machine. The third-generation washer-extractor uses air springs for shock absorption. Since the vibration frequency of the air spring is as low as 2HZ, its effect of absorbing high-frequency vibrations is very obvious. In addition to other advantages of the air spring, the vibration and vibration of the washer-extractor The noise is greatly reduced, thereby reducing the maintenance rate of the washing equipment and prolonging the service life of the machine.

What Products Do We Supply?

The main products are: rubber air spring, passenger car truck airbag, air bag, papermaking machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles, but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.

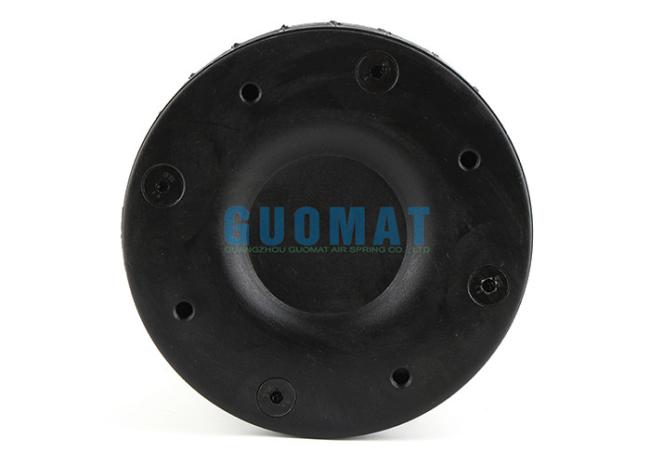

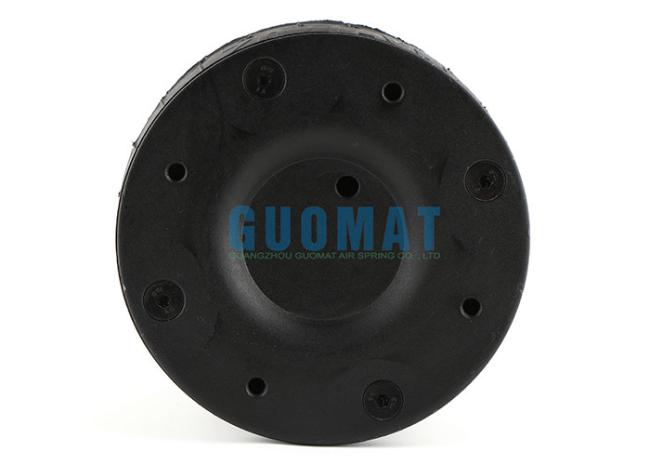

The Real Pictures of INTRAK 1702 Industrial Rubber Air Spring
