Japan Yokohama Air Convoluted Rubber Bellows For Industrial Vibrating Screen S-500-3R/S-500-3

Product Description

Item: Punch Airbag

Rubber Type: Natural Rubber
Material: Rubber and Metal

GUOMAT Model: F-500-3

YOKOHAMA Model: S-500-3

YOKOHAMA Model: S-500-3R

MOQ: 10 Pieces

Package: Carton

Usage: Industrial

Function: Reduce Vibration

S-500-3R Industrial Air Spring Technical Data

Design Height (mm): 160mm
Max Height (mm): 270mm
Min Height (mm): 90mm
Common Maximum Travel (mm): ±68mm
Compression Max Outside Diameter (mm): 560mm
Effective Area (cm²): 1965cm²
Volume(L): 30.3L
Load (KN): 96.3KN
Dynamic Spring Constant(n/mm): 1255n/mm
Natural Vibration Frequency (Hz): 1.8Hz
Maximum Internal Pressure (Mpa): 0.69Mpa
Internal Pressure Failure (Mpa): 3.9Mpa-4.9Mpa

The Role of Air Springs For Punch Presses
Air springs play an important role in punch presses by providing consistent and reliable resistance, reducing vibration, and improving accuracy. Punch presses can cause disturbance to sensitive equipment by generating high levels of vibration and noise. Air springs are designed to absorb this energy and reduce the amount of vibration that is transmitted to the surrounding environment. This helps improve the performance and longevity of the punch press, as well as prevent damage to nearby equipment. Additionally, air springs can improve the accuracy of the punch press by reducing the impact force and ensuring that the punch is delivered with a consistent level of force. This can help to produce higher quality and more precise products. Overall, air springs are an important component in punch presses that help to improve their performance and reduce their impact on the surrounding environment.

GUOMAT F Type Rubber Air Bags

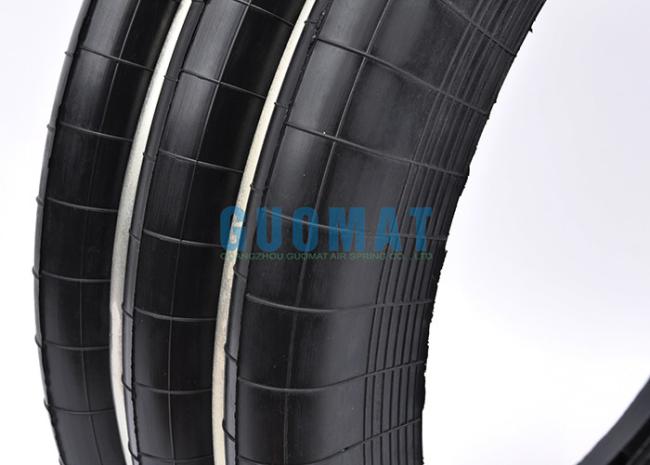

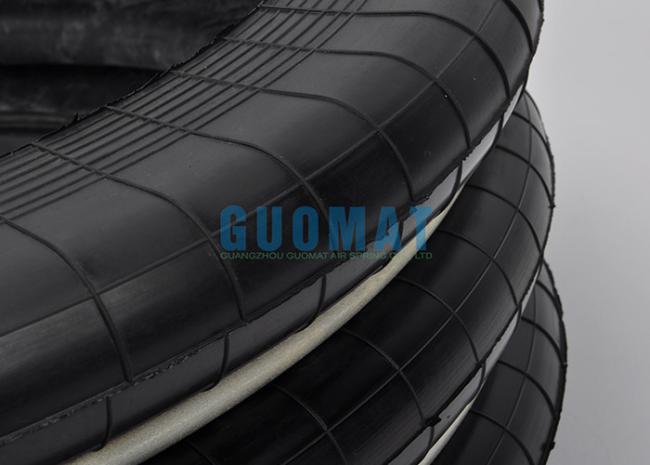

S-500-3 Airbag Hydraulic Punch Press Real Pictures
