Suspension Balloon Air Spring 130070J-1 Single Convoluted Plate Industrial Rubber Bellows
Suspension Balloon Air Spring 130070J-1 Single Convoluted Plate Industrial Rubber Bellows
Product Description
|
Effective Diameter |
Compressed Height |
Max Height |
Whole Stroke |
|
100mm |
53mm |
83mm |
30mm |
|
Weight-----------------------------------------------------------1.35KG |
|||
Model: 130070J-1
Material: Rubber+Steel
Warranty: 1 Year
MOQ: 1 pc
Application: Centrifuge
Bead Plate Diameter: 114mm
Design Height: 70mm
Rubber Bellows Max Diameter: 145mm (At 0.7Mpa)
Threaded Hole: M10X15mm
Air Inlet: 1/4''
Center Distance Between Threaded Holes: 44.5mm
|
Load Capacity |
Inflation Pressure |
0.2Mpa |
0.3Mpa |
0.4Mpa |
0.5Mpa |
0.6Mpa |
0.7Mpa |
0.8Mpa |
Volume at 0.7MPa (dm3) |
|
Installation Height |
|||||||||
|
53(mm) |
230 |
341 |
448 |
559 |
681 |
793 |
915 |
0.339 |
|
|
66(mm) |
180 |
277 |
366 |
468 |
560 |
656 |
750 |
0.523 |
|
|
70(mm) |
159 |
251 |
337 |
422 |
511 |
601 |
690 |
0.557 |
|
|
79(mm) |
146 |
225 |
297 |
369 |
438 |
519 |
587 |
0.623 |
|
|
83(mm) |
120 |
177 |
253 |
294 |
357 |
417 |
489 |
0.629 |
|
|
92(mm) |
69 |
103 |
138 |
174 |
214 |
253 |
296 |
0.688 |
|
|
Stiffness and Frequency at Design Height |
Vertical Height(Kg/cm) |
90 |
128 |
165 |
206 |
248 |
290 |
304 |
|
|
Natural Frequency(cpm) |
3.78 |
3.58 |
3.5 |
3.49 |
3.49 |
3.48 |
3.32 |
|
|
|
227 |
215 |
210 |
209 |
2099 |
209 |
199 |
|
Application of Air Spring in Centrifuge
Air springs are utilized in centrifuges to isolate vibration. Centrifuges are instruments that separate substances of different densities by rotating them at high speeds. The unbalanced centrifugal forces generated by the high-speed rotation of the centrifuge can cause significant vibration and noise, which can be reduced by using air springs. Air springs act as vibration isolators by cushioning the centrifuge's weight and effectively isolating the vibration. They also help to reduce the wear and tear on centrifuge components and extend their lifespan. Additionally, air springs can act as pneumatic actuators that control the flow or movement of fluids within the centrifuge.
GUOMAT Other J-Type Industrial Air Spring
|
Model |
Effective Diameter (mm) |
Max Diameter (mm) |
Travel Range |
Weight(kg) |
|
|
Min. Height(mm) |
Max. Height(mm) |
||||
|
150086J-1 |
106 |
160 |
55 |
100 |
1.4 |
|
188130J-1 |
120 |
210 |
55 |
149 |
1.9 |
|
215128J-1 |
125 |
230 |
55 |
145 |
2.5 |
|
235118J-1 |
180 |
255 |
60 |
136 |
2.8 |
|
235150J-1 |
180 |
255 |
65 |
172 |
2.85 |
|
260135J-1 |
170 |
280 |
55 |
155 |
3.1 |
|
300110J-1 |
240 |
320 |
55 |
130 |
4.35 |
|
300130J-1 |
240 |
320 |
60 |
150 |
4.5 |
|
132128J-1 |
230 |
350 |
65 |
145 |
4.85 |
|
360140J-1 |
280 |
380 |
65 |
160 |
7.25 |
|
380150J-1 |
300 |
405 |
65 |
175 |
7.4 |

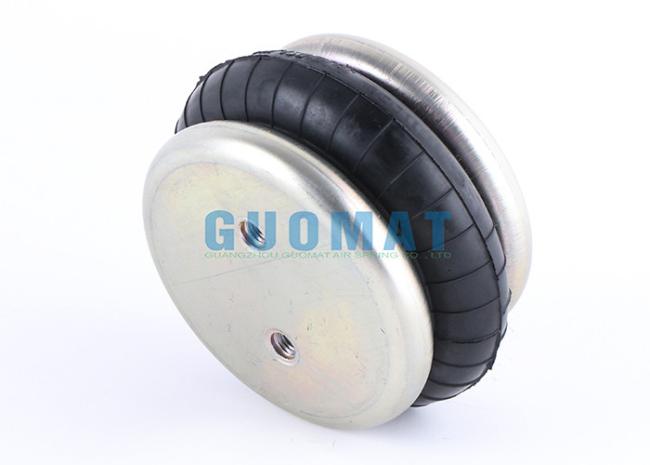

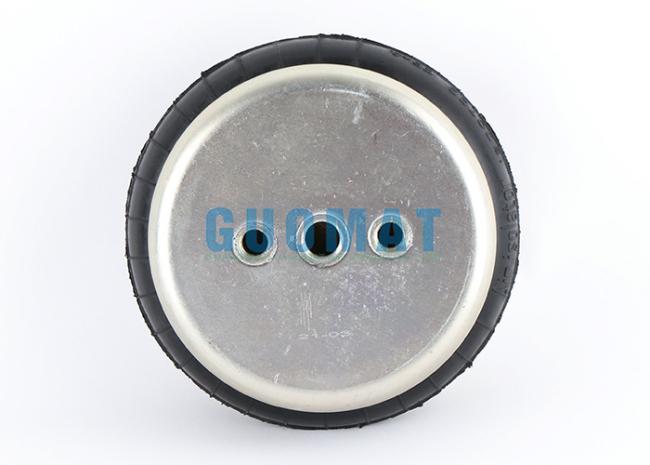

The Real Pictures
