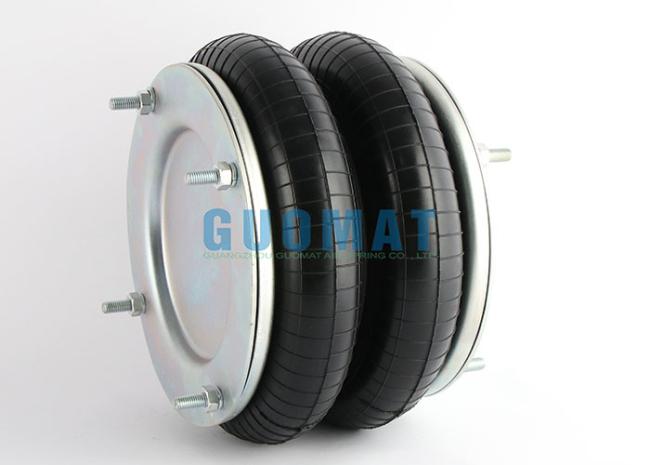

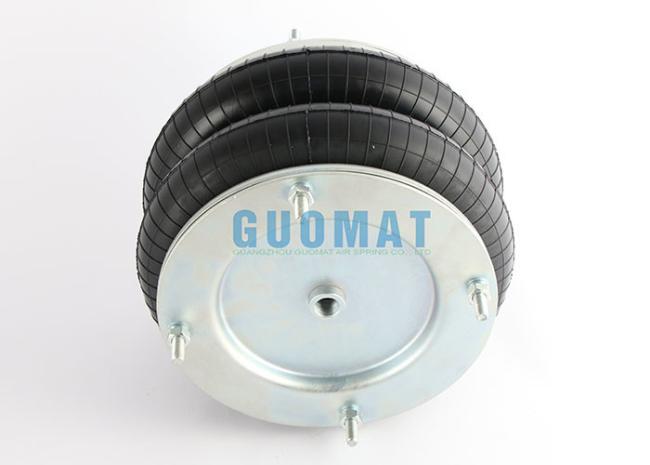

Replace Norgren M/31122 Flange Connection Industrial Air Spring FD412-22 Contitech Rubber Air Bags
Replace Norgren M/31122 Flange Connection Industrial Air Spring FD412-22 Contitech Rubber Air Bags
Product Description
A stamped flange air spring is a type of air spring shock absorber used in industrial applications. The bellows of the air spring is made of rubber and has a stamped flange plate for attachment to other components. The flange refers to the flat, typically circular piece around the end of the bellows which has bolts holes for attachment to the components that the spring is used to absorb shocks from. The bellows is typically filled with air which compresses and extends the bellows as needed to absorb the shock loads.
Item Name: Industrial Air Spring
Brand: GUOMAT
Model Number: 2B12X2
Material: Rubber+Aluminum Alloy
Warranty: 12 Months
MOQ: 10pcs
Installation: Easy Installation
Packing: Carton Packing/Neutral Packing
Function: Reduce Vibration
Firestone: W01R584061,W01-R58-4061,W01 R58 4061
Firestone: WO1R584061,WO1-R58-4061,WO1 R58 4061
Contitech: FD412-22,FD 412-22
Dunlop: SP1541,SP 1541
Dunlop: 12X2,12x2,12''X2
Norgren: M/31122,M31122,M 31122
Parker: 9109041
GUOMAT 12X2 Flange Industrial Air Spring Technical Data
|
Cover Plate |
|
|
The Width of the Top Cover Plate |
Ø260mm |
|
The Width of the Bottom Cover Plate |
Ø260mm |
|
Gas Hole/Screw/Blind Nut |
|
|
Gas Hole |
1/2 |
|
The Screw of the Top Cover Plate |
4XM10X1.5 |
|
The Screw of the Bottom Cover Plate |
4XM10X1.5 |
|
The Screw Height |
25mm |
|
The Distance Between the Screws of the Botttom Cover Plate |
Ø232mm |
|
Rubber Bellow |
|
|
The Rubber Bellow Diameter |
Ø300mm |
|
The Natural Height |
180mm |
Norgren Standard Models
|
NominalØ(inch)Xconvolutions |
Max.Stroke(mm) |
Port Size |
Model No. |
Butyl |
Epichlore |
|
6x1 |
55 |
G1/2 |
M/31061 |
TM/31061 |
EM/31061 |
|
6x2 |
115 |
G1/2 |
M/31062 |
TM/31062 |
EM/31062 |
|
8x1 |
80 |
G1/2 |
M/31081 |
TM/31081 |
EM/31081 |
|
8x2 |
175 |
G1/2 |
M/31082 |
TM/31082 |
EM/31082 |
|
10x1 |
100 |
G1/2 |
M/31101 |
TM/31101 |
EM/31101 |
|
10x2 |
225 |
G1/2 |
M/31102 |
TM/31102 |
EM/31102 |
|
10x3 |
330 |
G1/2 |
M/31103 |
TM/31103 |
EM/31103 |
|
12x1 |
100 |
G1/2 |
M/31121 |
TM/31121 |
EM/31121 |
|
12x2 |
225 |
G1/2 |
M/31122 |
TM/31122 |
EM/31122 |
|
12x3 |
330 |
G1/2 |
M/31123 |
TM/31123 |
EM/31123 |
|
14 1/2x1 |
125 |
G1/2 |
M/31141 |
TM/31141 |
EM/31141 |
|
14 1/2x2 |
265 |
G1/2 |
M/31142 |
TM/31142 |
EM/31142 |
|
14 1/2x3 |
380 |
G1/2 |
M/31143 |
TM/31143 |
EM/31143 |
|
16x2 |
315 |
G1/2 |
M/31162 |
TM/31162 |
EM/31162 |
|
16x3 |
430 |
G1/2 |
M/31163 |
TM/31163 |
EM/31163 |
|
21x2 |
280 |
G3/4 |
M/31212 |
TM/31212 |
EM/31212 |
|
26x2 |
410 |
G3/4 |
M/31262 |
TM/31262 |
EM/31262 |
High-Quality Rubber Air Spring For Industrial Machine
