6608NP01 Contitech Air Suspension Assembly 1R10-704 Goodyear Air Bag For Truck Trailer

6608NP01 Contitech Air Suspension Assembly 1R10-704 Goodyear Air Bag For Truck/Trailer

Product Details

Original Equipment Manufacturer Number

Firestone Part Number: W01-M58-8474,W01 M58 8474,W01M588474

Firestone Part Number: WO1-M58-8474,WO1 M58 8474,WO1M588474

Firestone Series: 1T15UR

Contitech Part Number: 6608NP01,6608 NP 01

Goodyear Part Number: 1R10-704,1R 10-704,1R10 704

Phoenix Part Number: 1DF17B-1,1DF 17B-1

Airtech: 132902,36416K

Airfren: 20.6608.1CM

Granning: 92500

DT: 2.62177

Templin: 04.020.6201.050

Templin: 04.060.6206.050

WABCO: 9518110020

WABCO: 951 811 002 0

Meritor: MLF7151

VOL-VO: 20582215,20 582 215

VOL-VO: 20531985,20 531 985

VOL-VO: 20456152,20 456 152

VOL-VO: 20374510,20 374 510

VOL-VO: 3171693,3 171 693

VOL-VO: 1076416,1 076 416

VOL-VO: 1075891,1 075 891

Technical Data

Cover Plate Diameter: Ø231mm

Combo Stud: M16X1.5,M24X1.5

Stud: M14X2.0

Piston Height: 161mm

Max. Height: 475mm

Min. Height: 190mm

1T15UR Firestone Series Truck Air Spring

How to Maintain Truck Air Spring
First, it is very important to keep your air spring inflated to the recommended minimum air pressure. Low air pressure can cause the suspension system to bottom out, causing damage to the air springs and other suspension components.

Second, it is important to keep an eye on the life of your air springs and replace them when necessary. Air spring life can be tracked by the date the truck or trailer was purchased, when the air spring was replaced, or by periodically inspecting the air spring for obvious signs of wear or damage.

In addition, it is recommended to regularly check the air spring for leaks or damage. Leaks or damage can cause the air spring to lose air pressure, causing the problems described above. Additionally, it is important to keep your air springs clean and free of debris and other contaminants to ensure smooth operation.

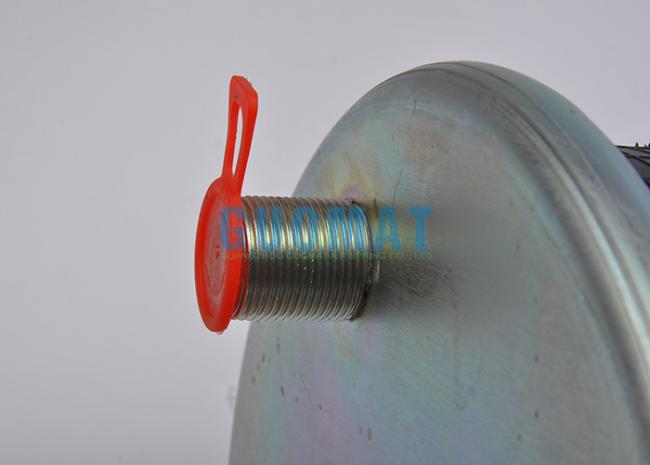

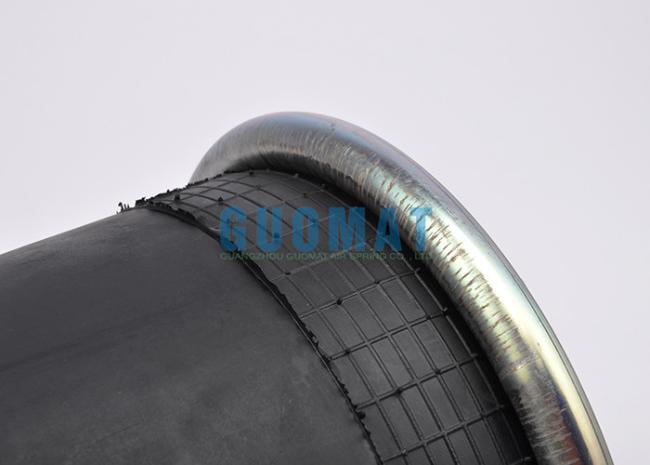

GUOMAT 1T8474 Real Pictures
