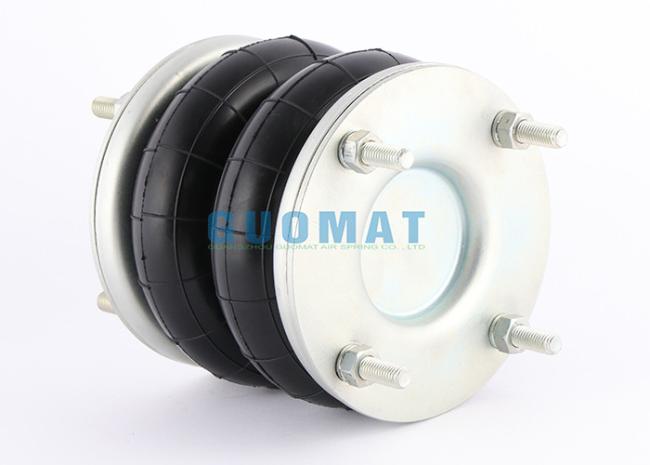

SP1482 DUNLOP Flange Type Air Spring 6''X2 Double Convoluted Air Lift Ride Bag

SP1482 DUNLOP Flange Type Air Spring 6''X2 Double Convoluted Air Lift Ride Bag For Industrial Inspection Equipment

Product Description

GUOMAT 6x2 Flange Industrial Air Spring Technical Data

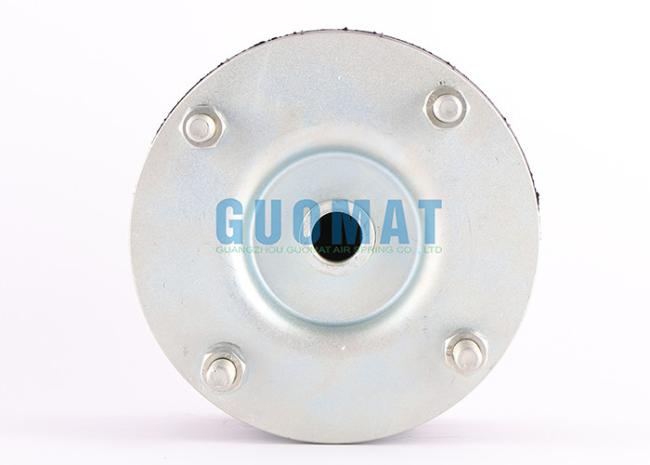

Cover Plate Diameter: Ø153.5mm

Gas Hole: G1/2

Screw Teeth: 4-M10

Center Distance Between Screw Teeth: Ø127mm

The Rubber Bellow Natural Diameter: Ø159mm

Natural Height: 135.5mm

DUNLOP 6''X2 Rubber Air Bellow Dimensions

Maximum Diameter: 168mm

Space Required: 180mm

Minimum Height: 73mm

Maximum Height: 170mm

Total Stroke: 97mm

Static Height: 120mm

Effective Area at Static Height: 140cm²

Bellows Weight: 2.25KG

Maximum Working Pressure: 8bar

Burst Pressure: 40bar

Maximum Angle Between Top and Bottom Plates: 15°

Maximum Axial Offset: 10mm

Application of Air Spring

• Precision Electronic Equipment
• Motor and Blower
• Industrial Washing Machine
• Compressor
• Vibration Screen
• Belt Tension Equipment
• Lifter(jockey)
• Packing Press
• Paper Machine Press
