2B7X7P01 Industrial Rubber Air Bellows OEM FD120-17 Contitech Suspension Air Spring Bag

2B7X7P01 Industrial Rubber Bellows OEM FD120-17 Contitech Suspension Air Spring Bag

Product Description


Technical Data: GUOMAT 2B7X7P01
Top Cover Plate Diameter: Ø131mm
Air Fitting Hole: 1/4NPT
Threaded Hole: 2XM8X1.25
Center Distance Between Threaded Holes: 54mm
Distance Between Threaded Hole and Air Hole: 27mm
Bottom Cover Plate Diameter: Ø131mm
Threaded Hole: 2XM8X1.25
Center Distance Between Threaded Holes: 54mm
The Rubber Bellow Natural Outer Diameter: Ø176mm
Design Height: 189mm
Deflection(Height Min.): 65mm
Deflection(Height Max.): 230mm
Working Stroke: 165mm
Loading Cap. at 3.0bar: 3.33kN
Loading Cap. at 7.0bar: 9.07kN



Air Springs for Industrial Machinery and Equipment
Air spring is an industrial auxiliary equipment with extremely high functionality and reliability, and has become an indispensable part of modern industrial production. High-quality air springs can not only reduce vibration and noise, but also improve production efficiency and reduce production costs. GUOMAT air springs are made of high-quality rubber and steel. The steel surface has a natural oxide layer, which has excellent corrosion resistance and is not easy to rust; the rubber part is used as an air bag, which can bear extremely high weight and automatically adjust the pressure.

Please Contact Us
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know

We are looking forward to establishing business with you.

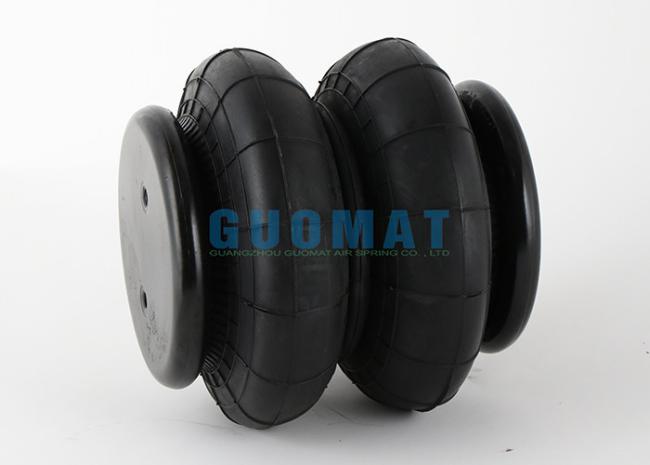

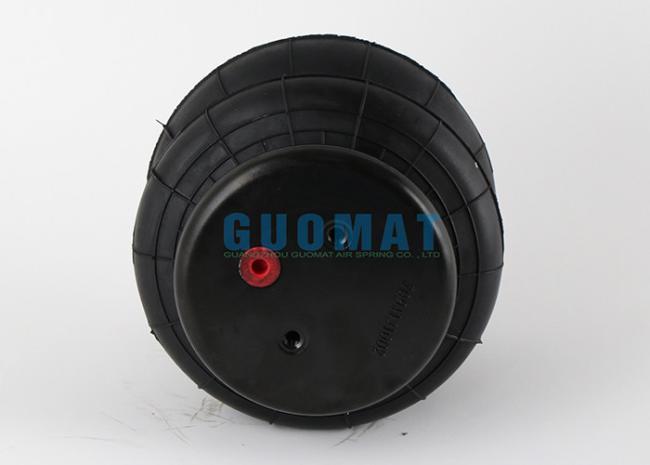

GUOMAT 2B7X7P01 Industrial Air Bag Real Pictures
