FS40-6 1/8 M8 Contitech Rubber Air Actuator SP1B04 Phoenix Industrial Air Balloon Reduce Vibration


Product Description

GUOMAT 1B4060 is a single convoluted air spring that is commonly used in industrial applications. It is also known as a Firestone FS 40-6 or a Phoenix SP1B04 air spring. This air spring is designed to provide support and cushioning in a variety of industrial applications, such as suspension systems for heavy-duty vehicles and machinery. It is made of high-quality rubber and has a minimum design height of 50mm, with a maximum stroke of 160mm.

OEM Number Information

Replace Contitech P/N: FS 40-6 1/8

Replace Contitech P/N: FS 40-6 1/8 M8

Replace Phoenix P/N: SP1B04

Replace Phoenix P/N: SP 1B04

Replace Weforma P/N: WBE100-E1

Replace Weforma P/N: WBE100 E1

1B4060 GUOMAT Industial Air Spring Technical Data

Top Cover Plate Diameter: 90mm

Air Fitting: G1/8

Threaded Hole: M8X1.25

Distance Between Air Fitting and Threaded Hole: 20mm

Bottom Cover Plate Diameter: 90mm

Threaded Hole: 2XM8X1.25

Center Distance Between Threaded Holes: 20mm

Maximum Outer Diameter: 145mm

Maximum Height: 110mm

Minimum Height: 50mm

Pneumatic Application – Static Characteristic Values

Force F(kN)

GUOMAT Air Spring Features

• Maintenance-Free
• Long Service Life
• Extensive Product Range
• No Friction=Smooth Operation
• Lateral Misalignment Possible
• Easy Economic Installation
• Highly Reliable in Operation
• Resistance to Various Media

Contitech Assembly Number to GUOMAT

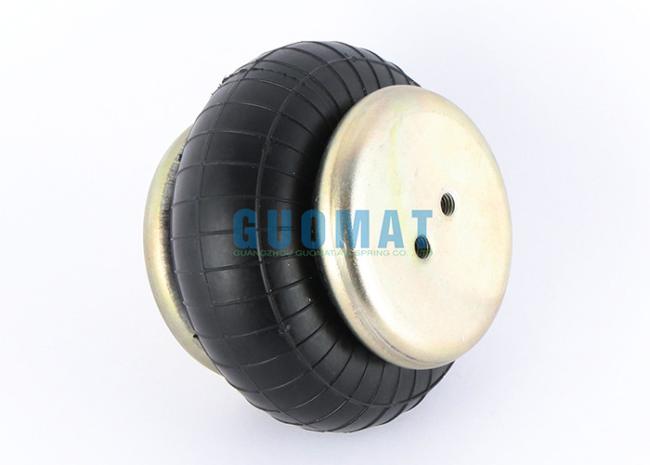

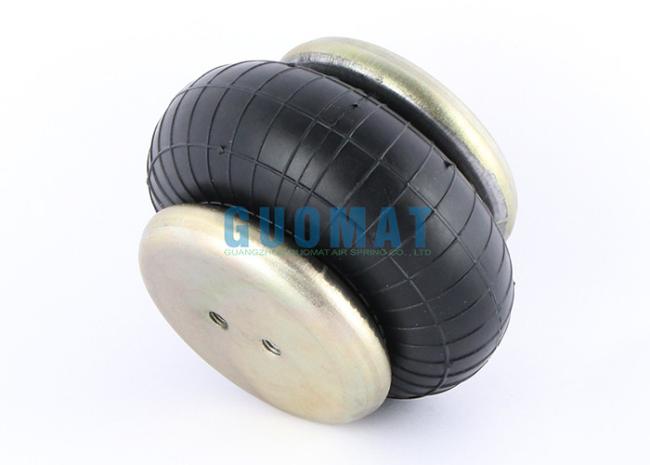

The Real Pictures: GUOMAT 1B4060 Single Convoluted Air Actuator
