Complete Convoluted Air Bellow 12X3 Dunlop Three Layers Flange Helper Springs Pneumatics For Machinery Equipment

Product Description


An industrial flanged air spring is an air spring that is attached to a metal flange at one or both ends. The flange is designed to be bolted to a flat surface, making it easy to install and secure.

GUOMAT 12X3 Triple Convoluted Air Spring Technical Data

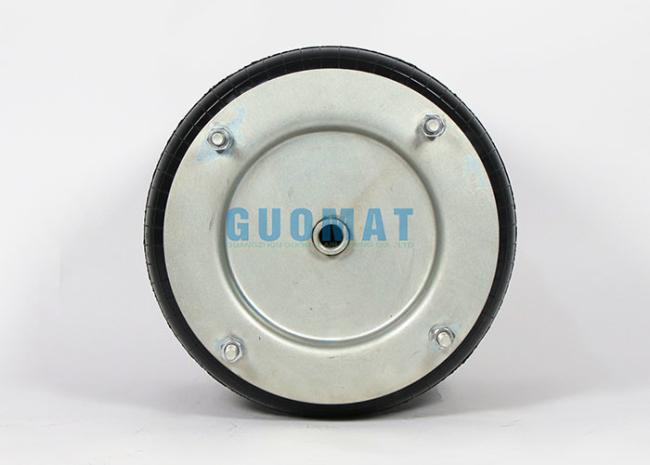

Top cover plate diameter: 260mm

Gas hole: 1/2

Screw teeth of the top cover: 4-M10 , 31mm height

Center distance between top cover screw teeth: 232mm

Bottom cover plate diameter: 260mm

Screw teeth of the bottom cover: 4-M10 , 31mm height

Center distance between bottom cover screw teeth: 232mm

Rubber bellows diameter: 300mm

Minimum installation space: 325mm

Natural height: 252mm

Technical Dara: DUNLOP 12X3

Top plate number:15878

Top plate diameter: 260mm

Air inlet: 1/2''BSP 0.5mm 13mm high

Clamp rigng Number: 15880

Number of clamp rigng: 2

Rubber bellow number: 15820

Nominal diameter of rubber bellow: 178mm

Rubber bellows diameter:12''/ 300mm

Centre ring number: 15881

Number of centre ring: 2

Bump stop: None

Bottom plate number: 15879

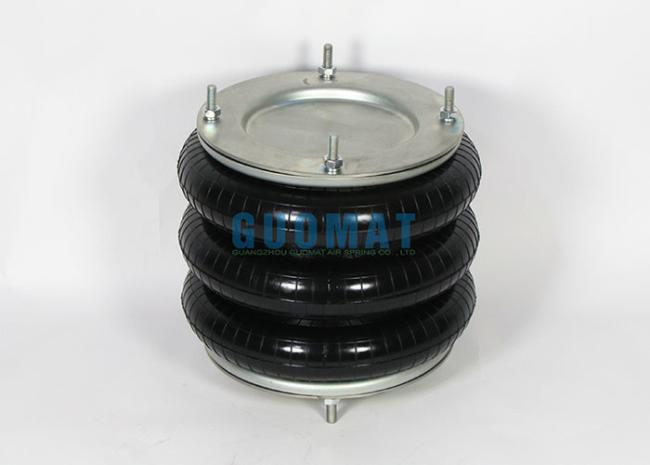

Dunlop Triple Convoluted Air Bellow

Advantages of Flanged Air Springs
Air springs with flanged ends are a popular choice for many applications for a number of reasons. Some of the advantages of flanged air springs include:

1. Ease of Installation: The flanged ends make installation of the air spring much easier as they can be easily bolted in place, without the need for special brackets.

2. Enhanced Safety: Flanged air springs are less likely to fail or come loose compared to other types of air springs, providing enhanced safety and reliability.

3. Reduced Maintenance: As flanged air springs are secure and mechanically stable, they require less maintenance compared to other types, reducing the need for frequent checks and adjustments.

4. Improved Stability: Flanged air springs offer improved stability in heavy load-bearing applications, as they are designed to provide a smooth and consistent ride even under variable loads.

5. Reduced Wear and Tear: Due to their superior design, flanged air springs last longer compared to other types of air springs, reducing overall wear and tear and extending the life of the equipment they are installed on.
